Thumbnail for Milling cutter small diameter

8/10/12 mm cutter suitable to JDMT07 Hitachi Brand Insert.

Brand - Mars-Tech

₹ 1,500.00

SKU: JBRS0170

Size

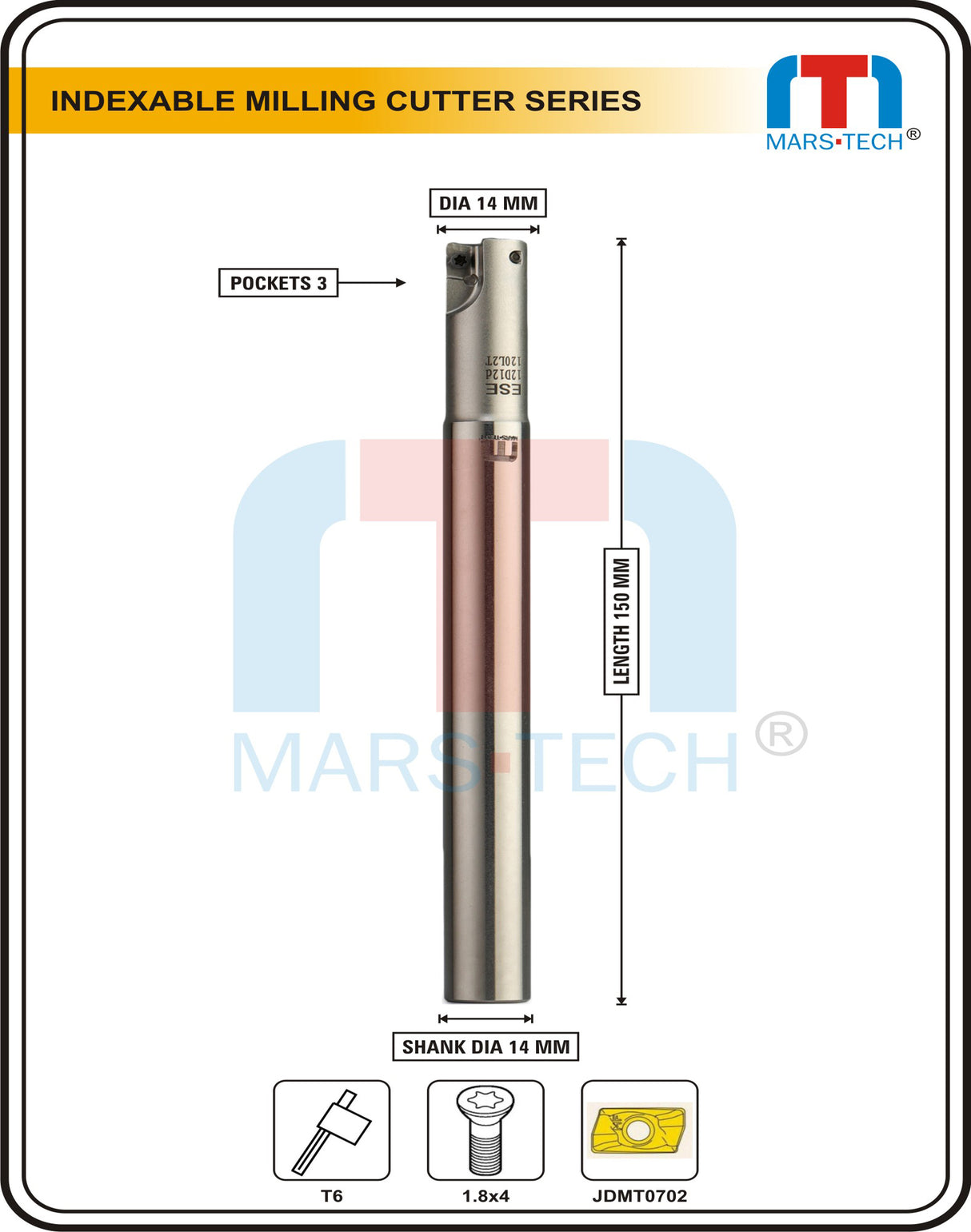

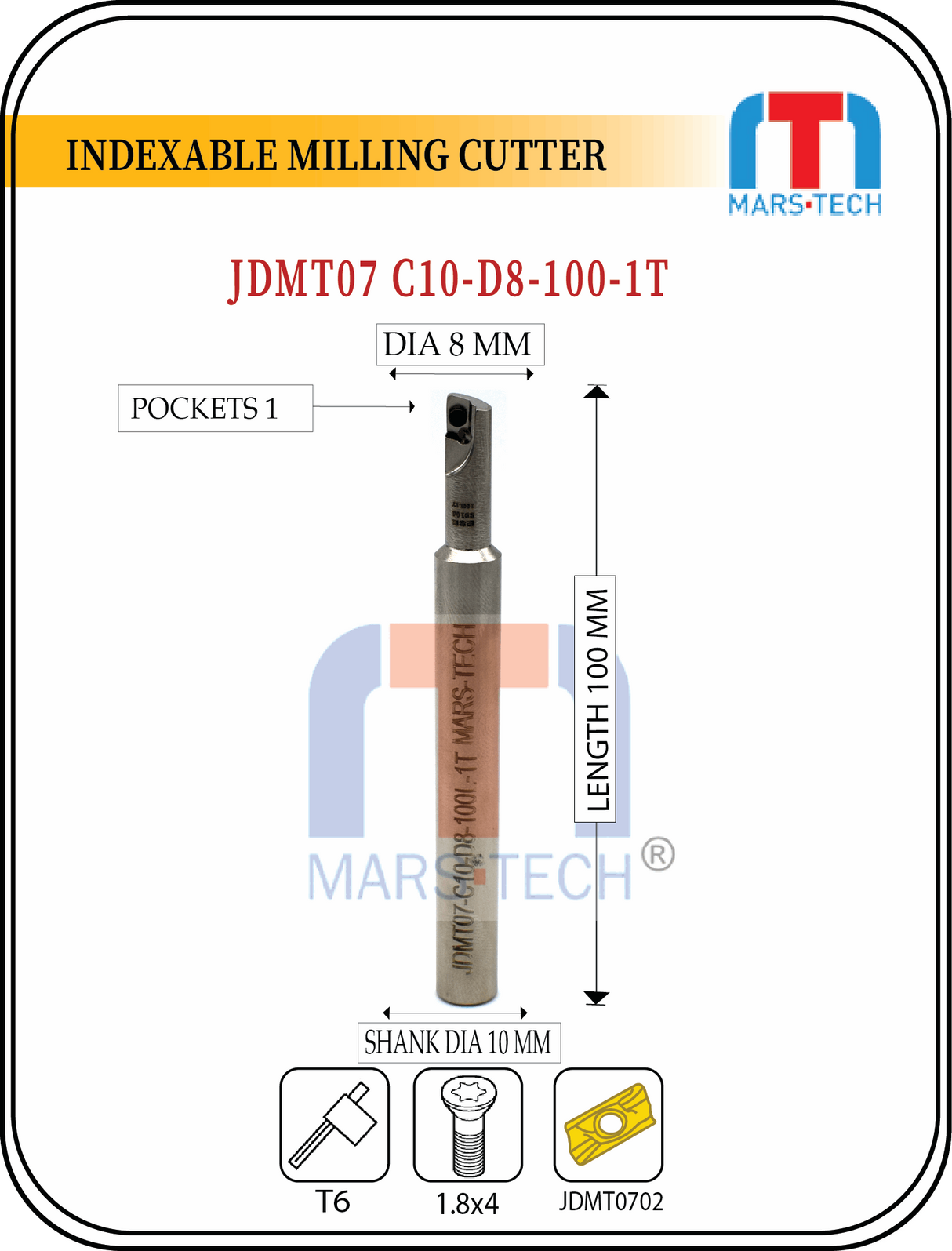

12X120L2T 14X150L3T 10X100L2T 8MM Diameter in 10 mm Shank 1 Pocket

0 LEFT IN STOCK

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

ESE-C10-10-100L-2T SCREW 1.8X4 MM T6 KEY

ESE-C12-12-120L-2T SCREW 1.8X4 MM T6 KEY

ESE-C14-14-150L-3T SCREW 1.8X4 MM T6 KEY

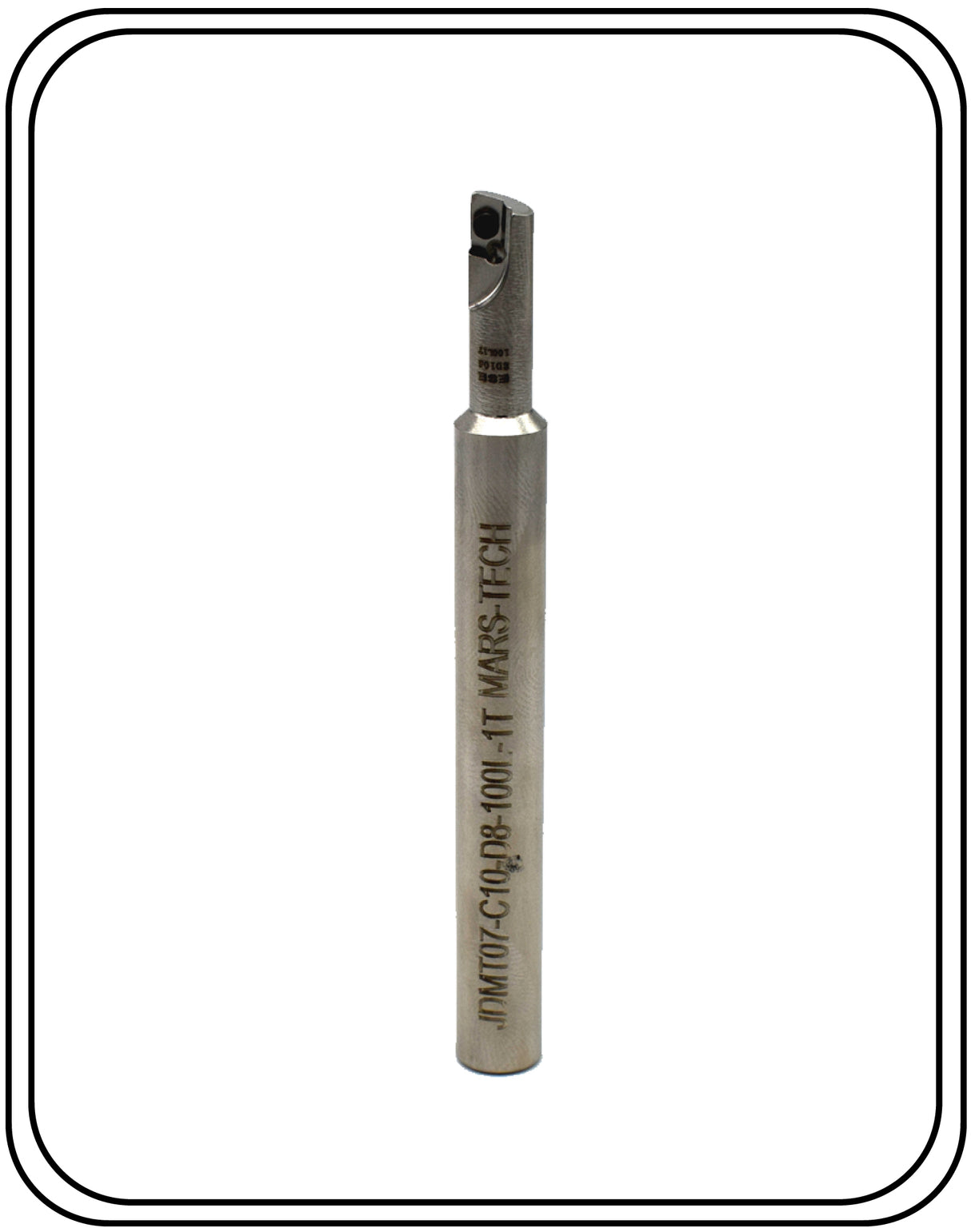

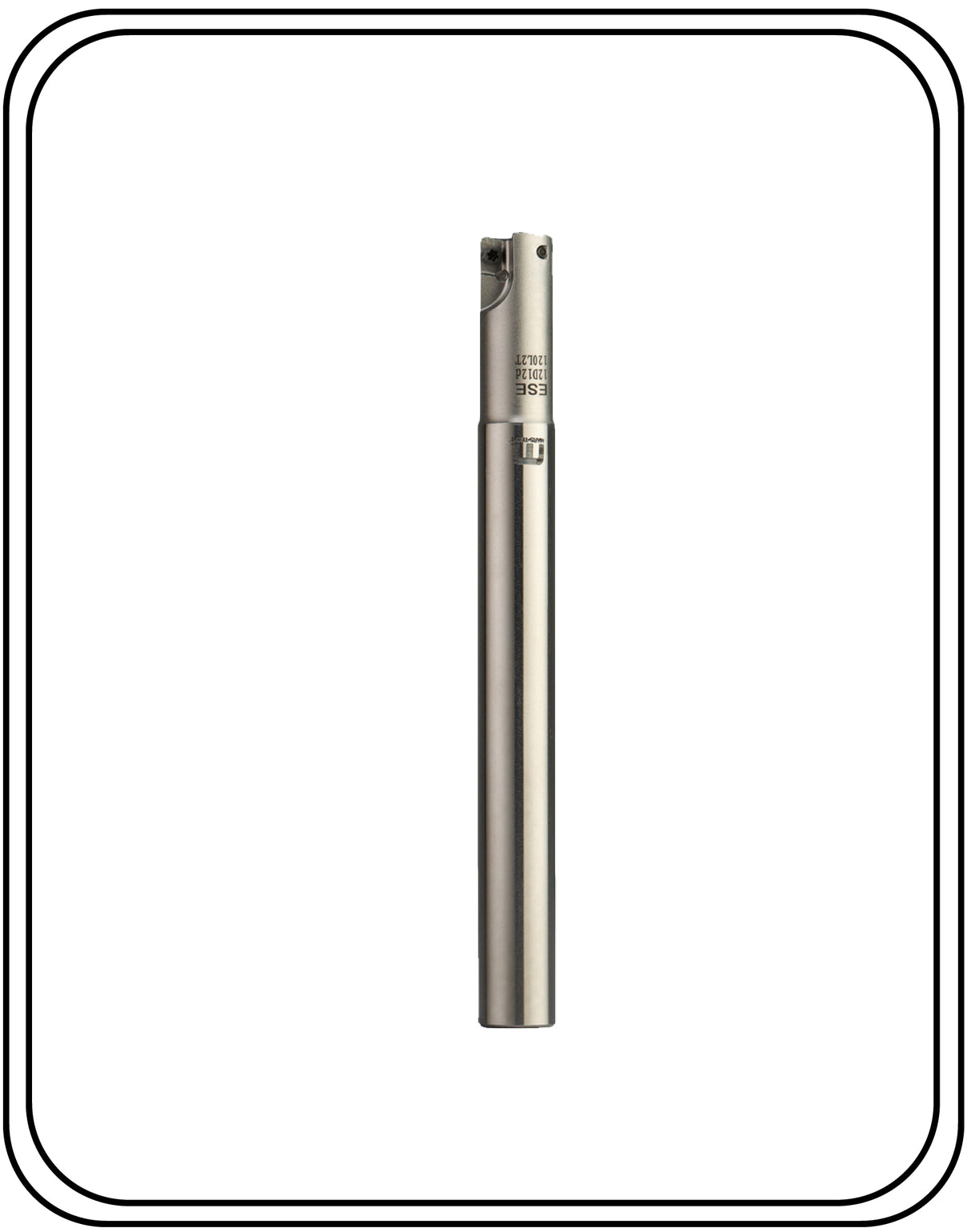

This is Shoulder and Face Milling Cutter used mainly in CNC Milling and Manual Milling Machine with ISO Carbide Insert , Using this can reduce the cost really low compared to HSS and changing of insert time is also very low , They are hardened 45-50 HRC to not wear out , Pockets are well designed so insert and pocket seat have no gap in them , Run out tolerance is maintained by grinding by center to center and they have center hole both sides , you can use JDMT070204 For HITACHI Brand Insert into this , If any other brand have same insert can also fix to this cutter body

Products are usually delivered in 3-7 days depending upon your location.

0 have this item in their cart.

Add to cart
