Buy BT-40 Type Tool Holders | Boring Taper for CNC machining

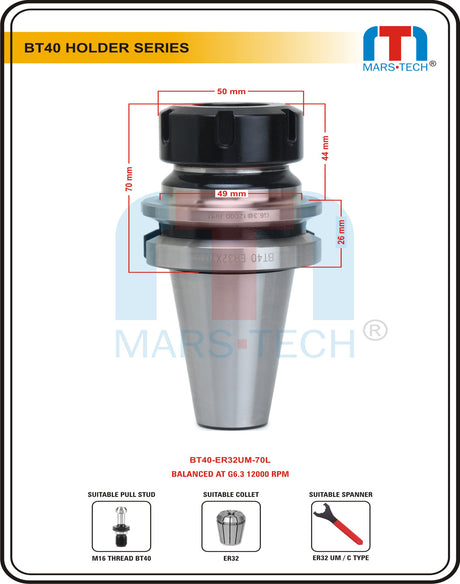

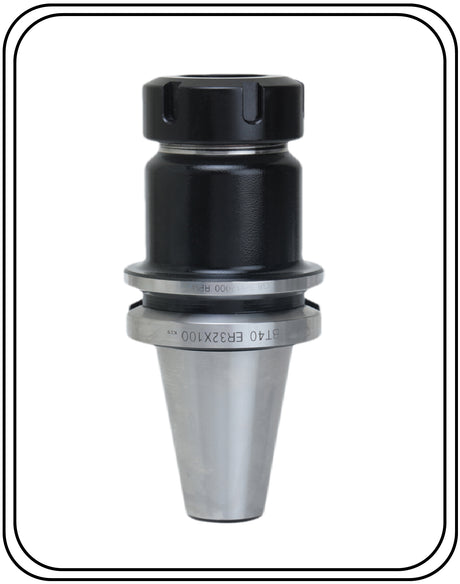

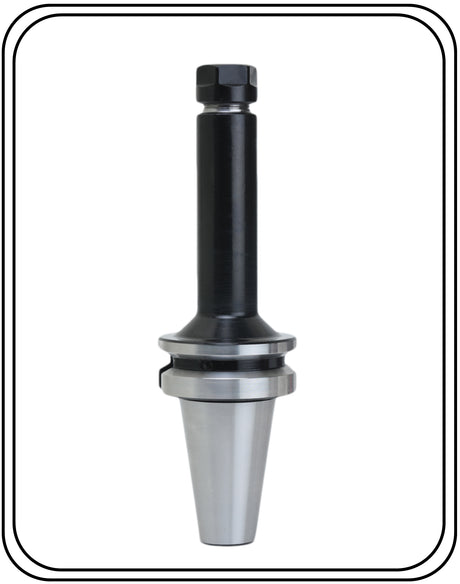

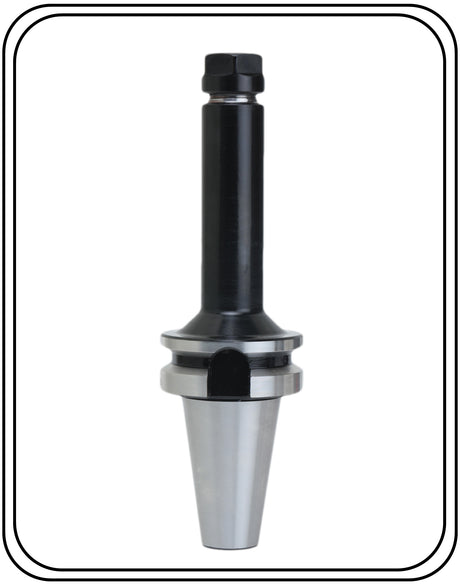

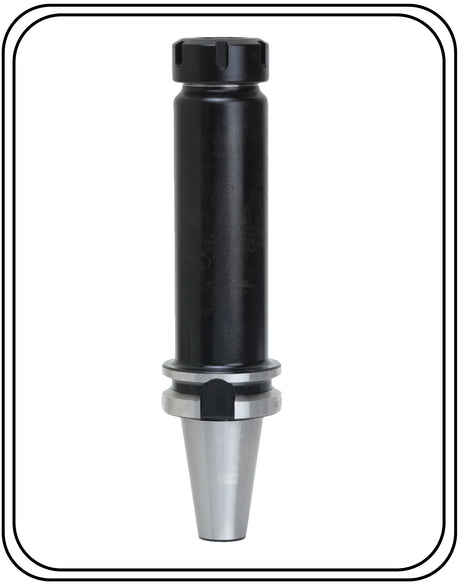

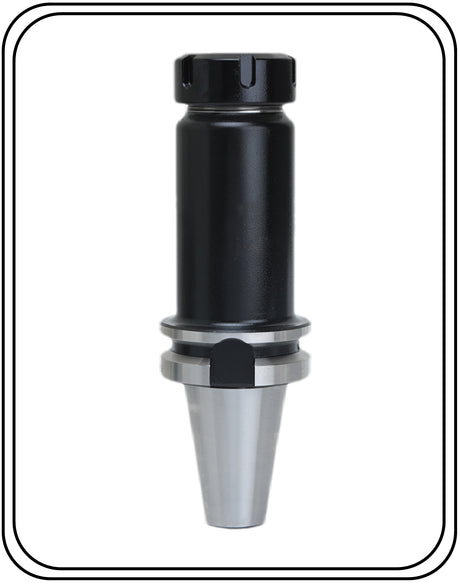

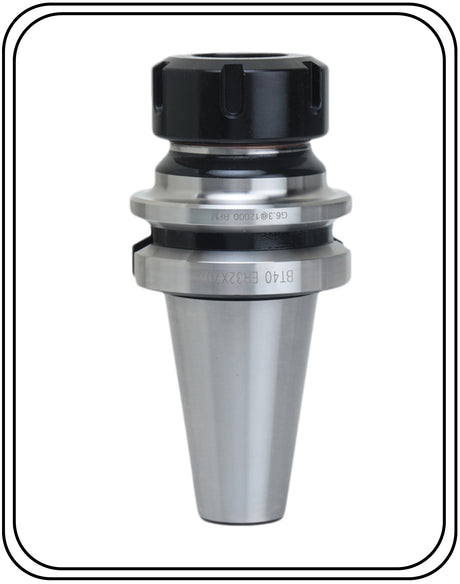

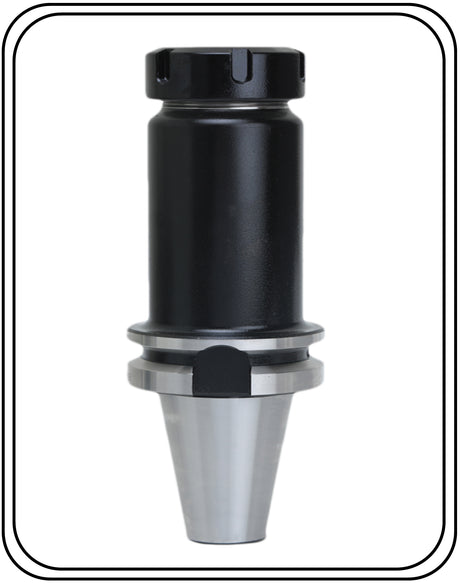

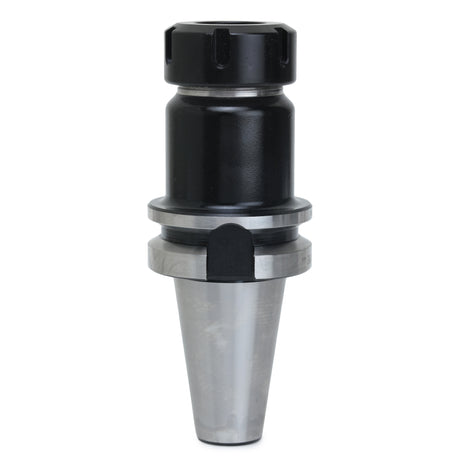

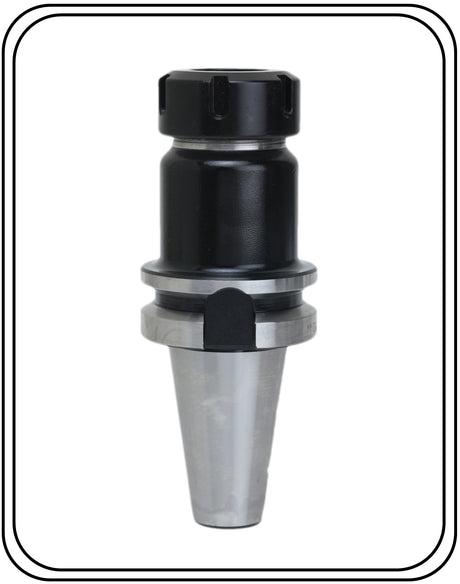

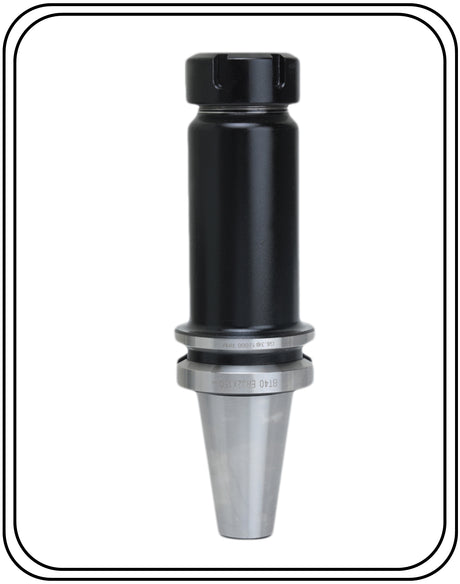

Mars-Tech BT40ER32 UM collet chuck-70... from ₹ 1,202.00

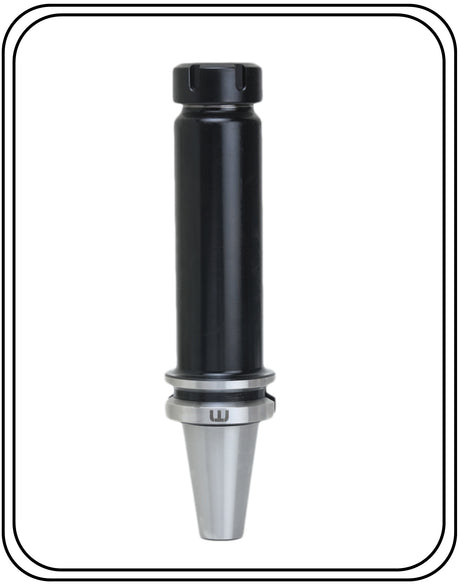

BT40 Tool Holder accepts all ER32 collets ER32 Collets range from 1 mm to 20 mm Thread inside internal stop screwMade from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundCoolant through capabilityGage length is 70mm,100MM,150MM,200MMRear thread for pull stud is M16 X 2.0 All holders have capability to become through coolant by simply removing screw in the center by allen key

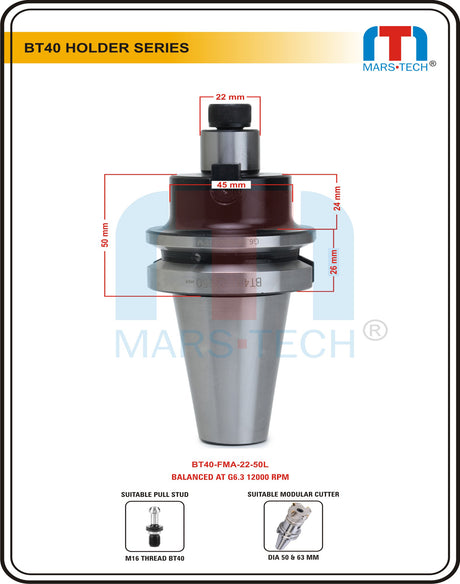

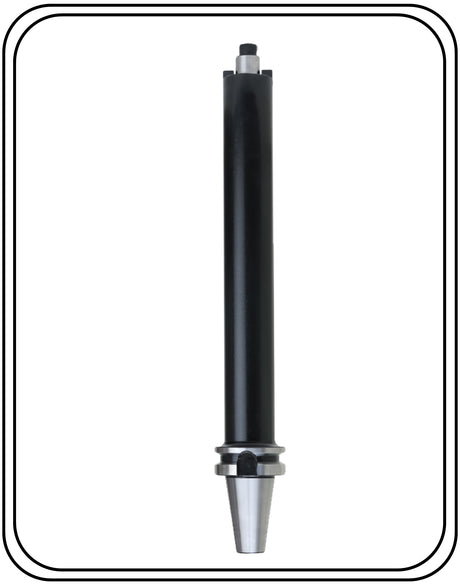

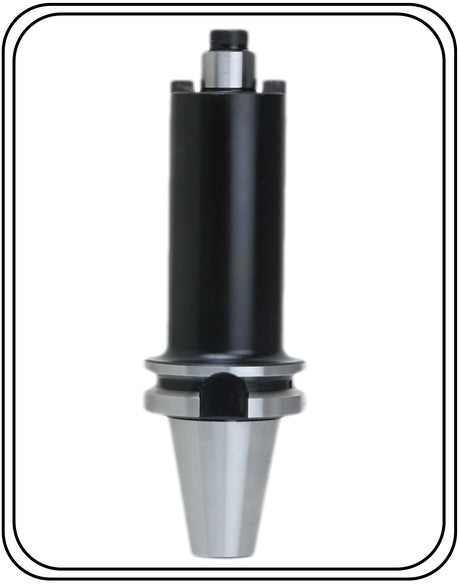

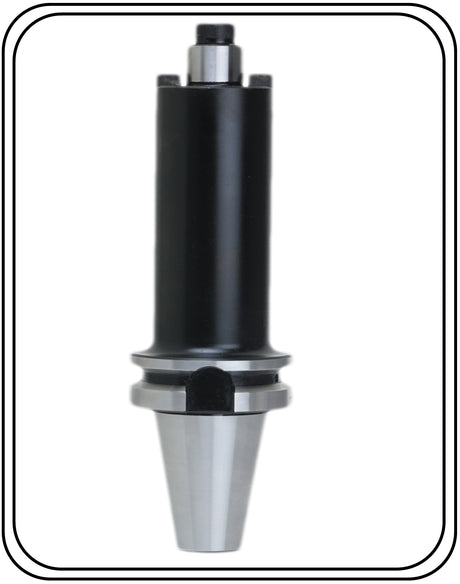

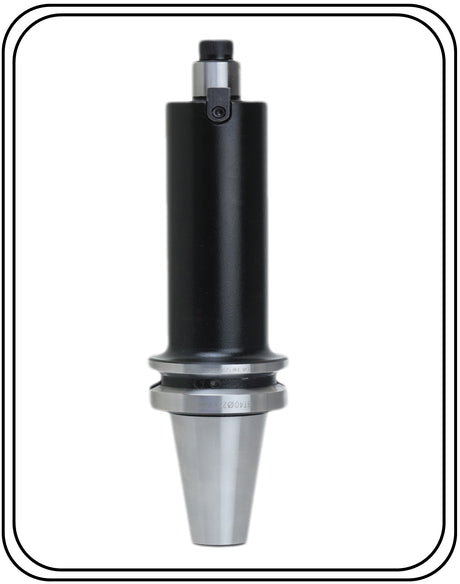

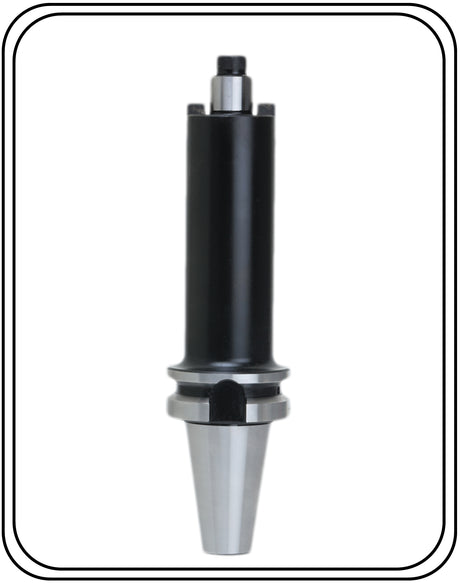

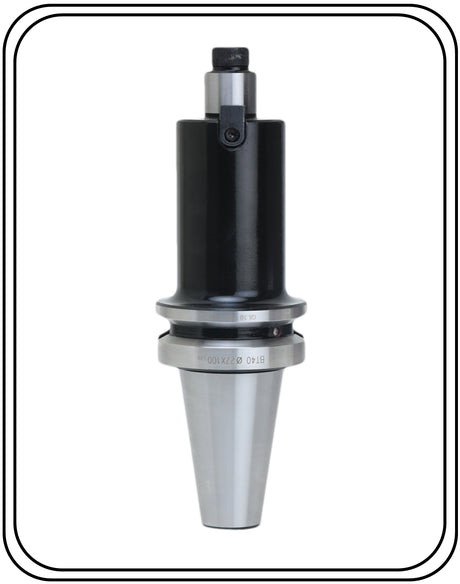

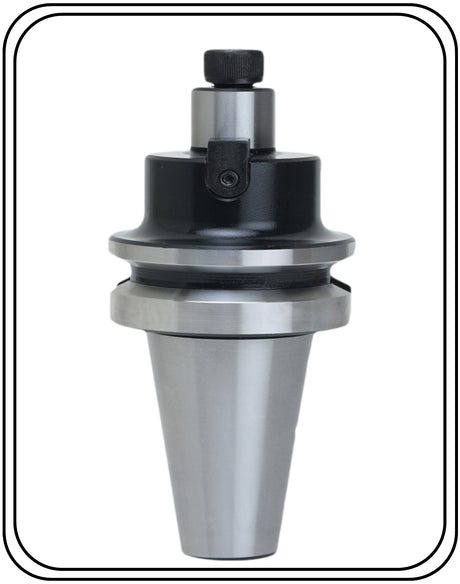

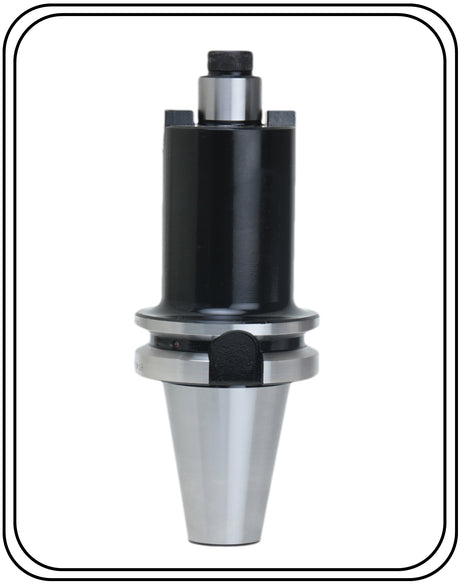

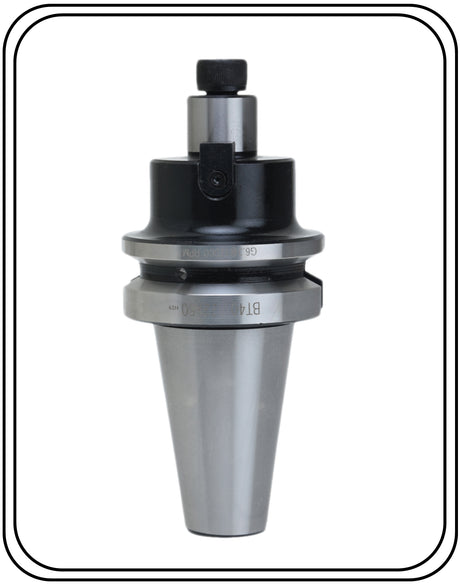

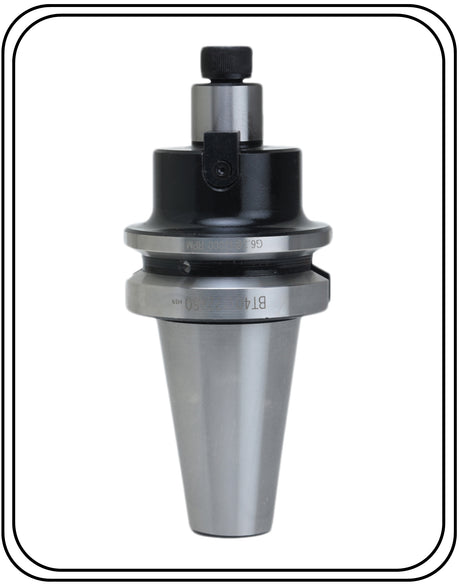

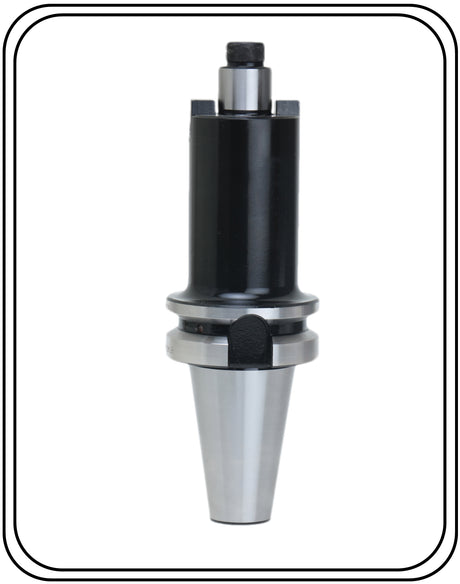

BT40 fmb 22 mm Face milling holder arbour pack of 1

Mars-Tech BT40 fmb 22 mm Face milling... from ₹ 1,505.00

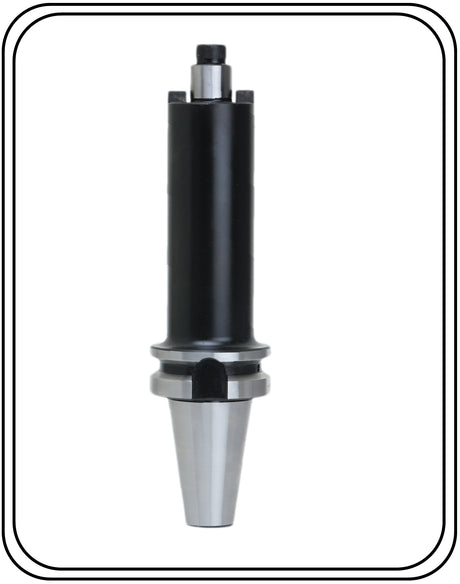

BT40 facemill holder also called facemill arbour and facemill adaptor BT40 FMA22 Is mainly used to hold Modular Indexable Cutter with Internal hole of 16 mm any cutter can come with a 22 mm Internal thread but normally 50 mm AND 63 mm Cutters are common in this range. Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundGage length is 50MM,100MM,150MM,200MM,250MM,300MMRear thread for pull stud is M16 X 2.0

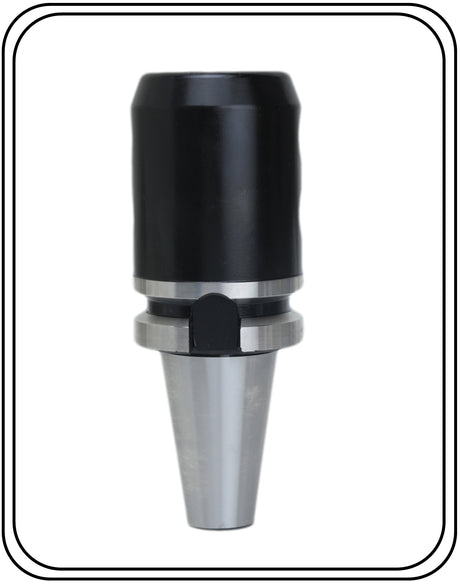

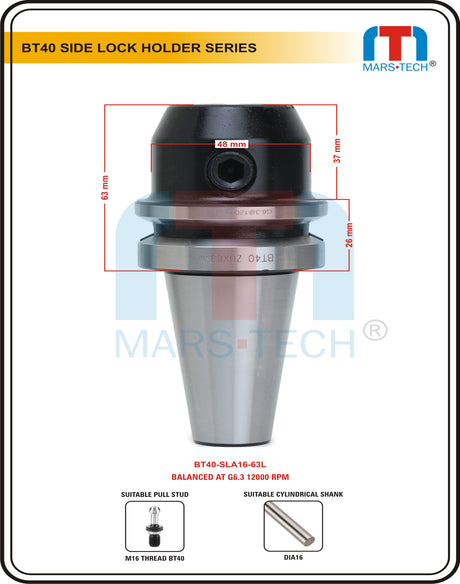

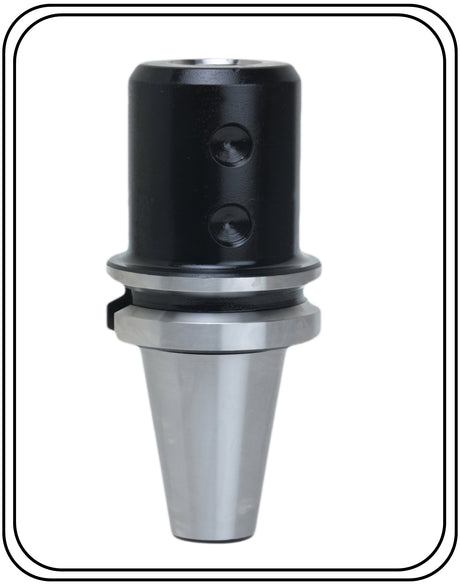

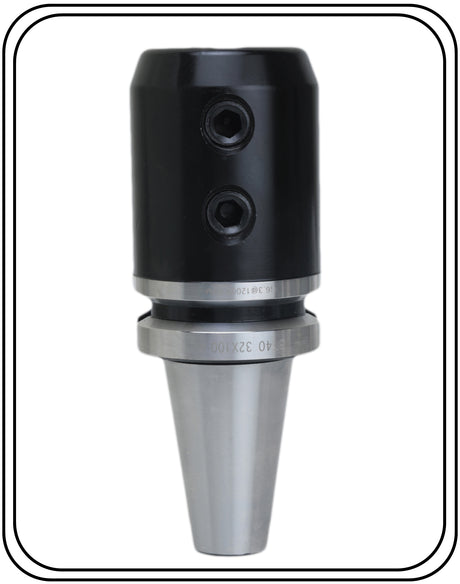

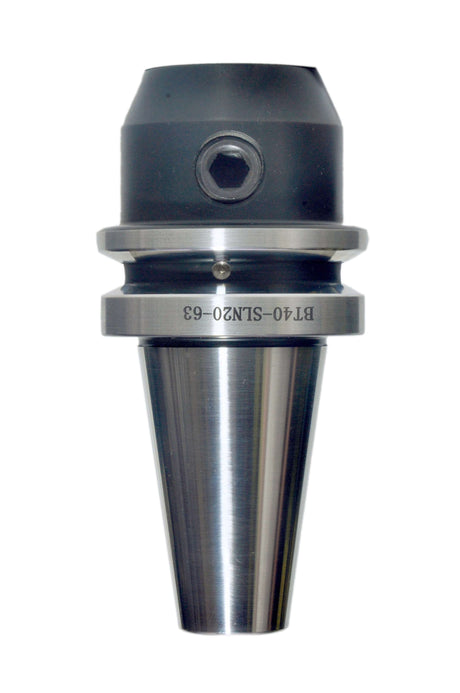

BT40 side lock adaptor , SLA 12 ,16,20,25,32,40 mm For Cylindrical Shank pack of 1

Mars-Tech BT40 side lock adaptor , SL... from ₹ 1,505.00

BT40 SLA holder also called SIDE LOCK HOLDER BT40 SIDE LOCK Is mainly used to hold Cylendrical/Straight Shank of anything like Indexable Cutter , Baby chuck , Carbide Drill whatever with straight shank can hold into for better rigidity and strength it range from 16 mm to 40 mm as small diameter of shank can be hold in standard collet chuck. Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundGage length is 50MM,100MM,150MMRear thread for pull stud is M16 X 2.0

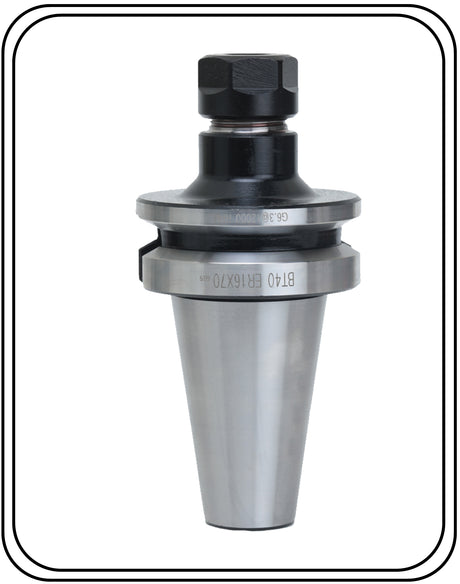

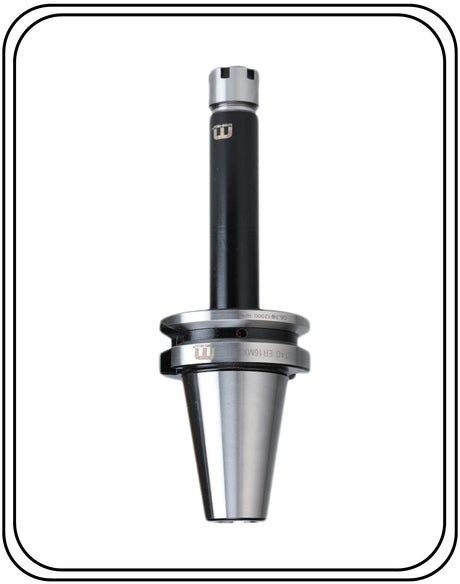

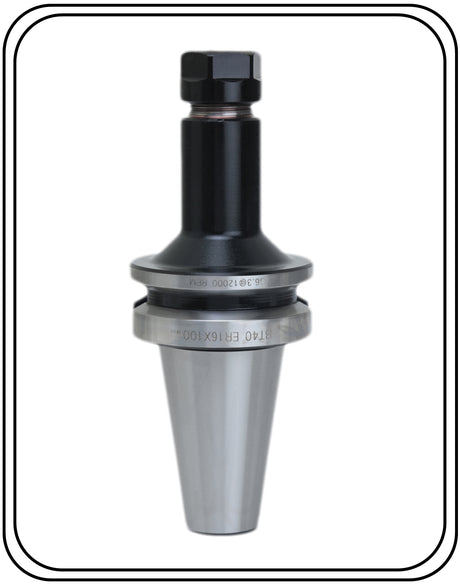

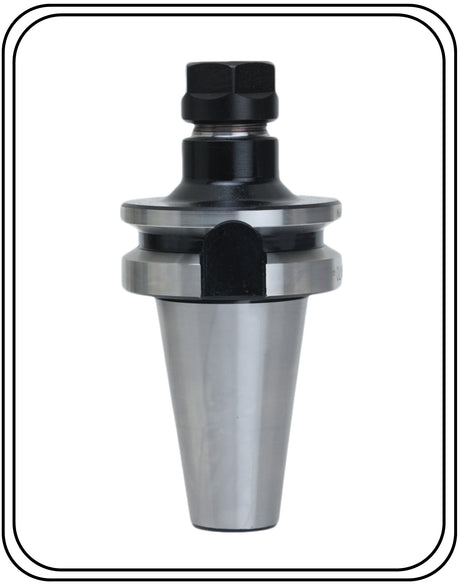

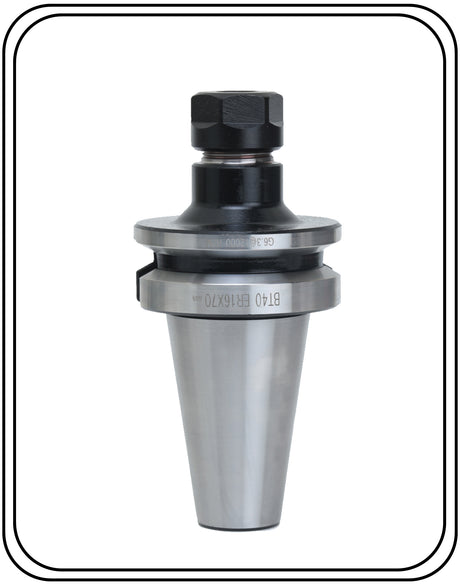

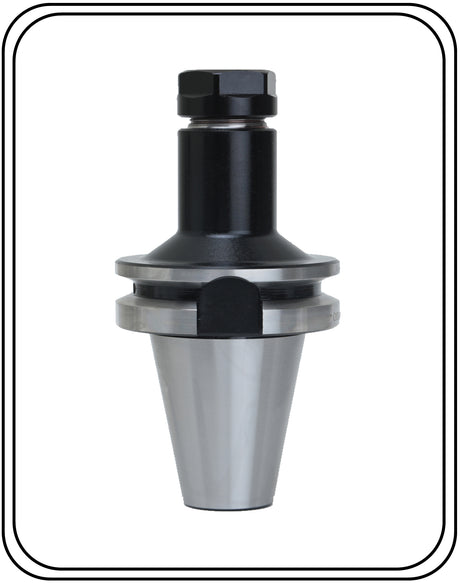

Mars-Tech BT40ER16 collet chuck-70L,1... from ₹ 1,505.00

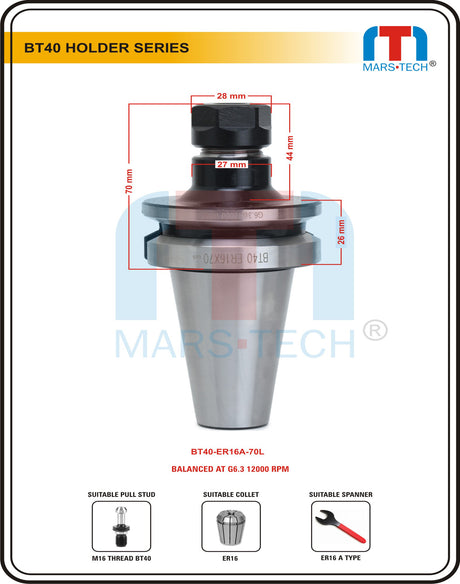

BT40 Tool Holder accepts all ER16 collets ER16 Collets range from 1 mm to 12 mm Thread inside internal stop screwMade from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundCoolant through capabilityGage length is 70mm,100MM,150MM,200MM Rear thread for pull stud is M16 X 2.0 All holders have capability to become through coolant by simply removing screw in the center by allen key

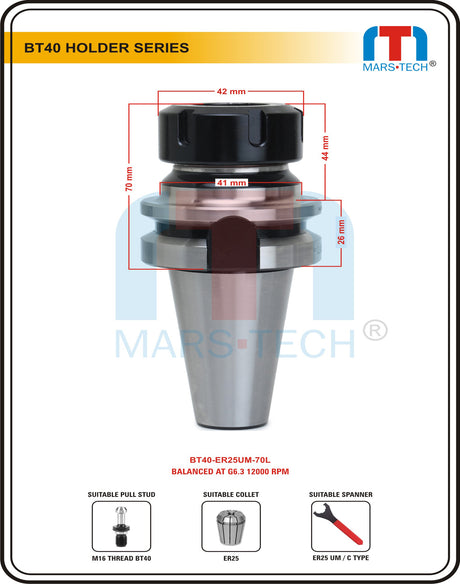

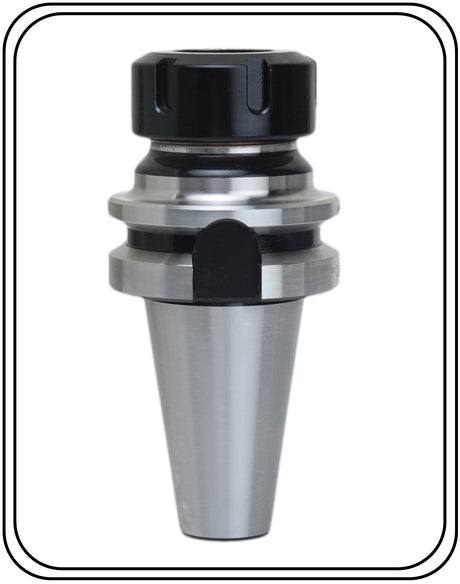

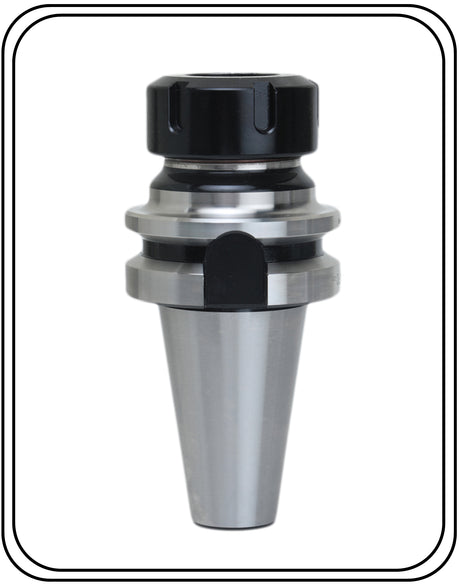

Mars-Tech BT40ER25UM- Collet Chuck 70... from ₹ 1,505.00

BT40 Tool Holder accepts all ER25 collets ER25 Collets range from 1 mm to 16 mm Thread inside internal stop screwMade from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundCoolant through capabilityGage length is 70mm,100MM,150MM,200MMRear thread for pull stud is M16 X 2.0 All holders have capability to become through coolant by simply removing screw in the center by allen key

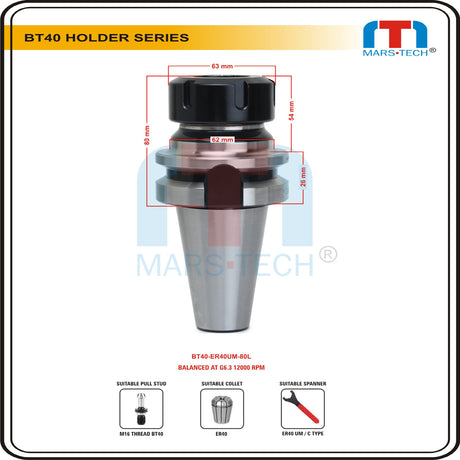

Mars-Tech BT40ER40 collet chuck UM-80... from ₹ 1,505.00

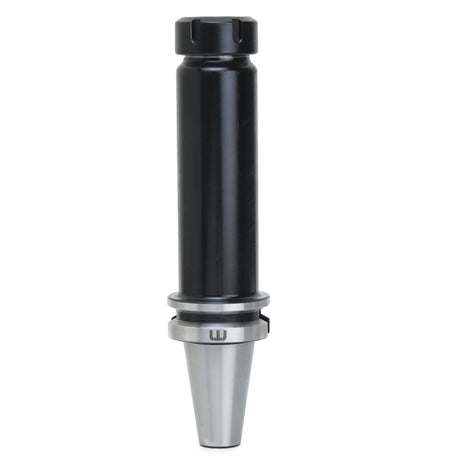

BT40 Tool Holder accepts all ER40 collets ER40 Collets range from 3 mm to 26 mm Thread inside internal stop screwMade from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundCoolant through capabilityGage length is 70mm,100MM,150MM,200MMRear thread for pull stud is M16 X 2.0 All holders have capability to become through coolant by simply removing screw in the center by allen key

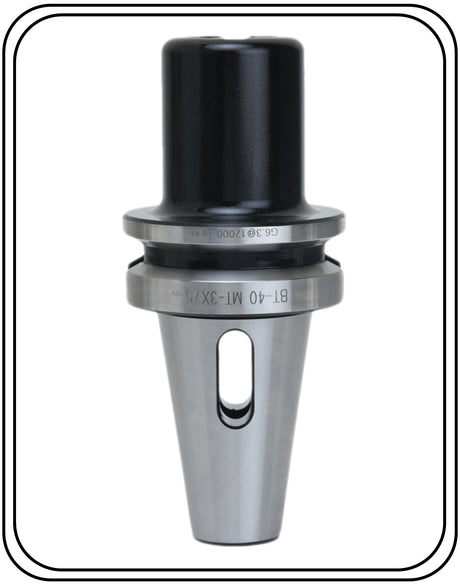

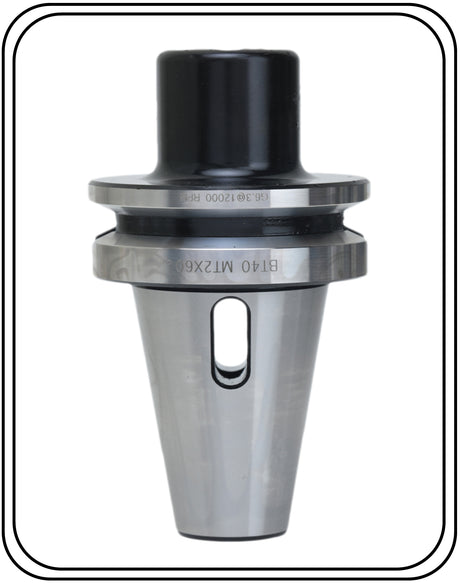

Mars-Tech BT40Morse taper holder MT1 ... from ₹ 1,505.00

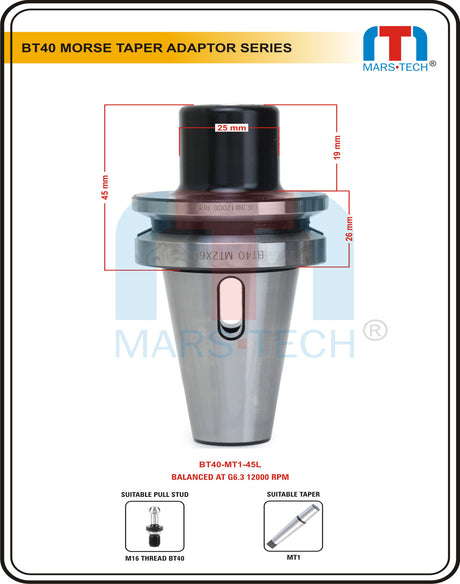

BT40 Morse Taper holder are used to hold Tang type shanks BT40 morse taper Is mainly used to hold Tang Type Drills and Arbours Better shank taper - accurate, rigid toolholder-to-spindle mount Less tool wear and replacement - less scrap Fully ground flange and V-groove, easy on the tool changers for less spindle and changer maintenance Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundRear thread for pull stud is M16 X 2.0 This is general standard to choose morse taper size for drills (it may change with different din standard or special sizes) MT 1 IS USED FOR SMALL DRILL UPTO 14MM MT 2 IS USED FOR 14.25 MM TO 23 MMMT 3 IS USED FOR 23.5 TO 31.5 MMMT4 IS USED FOR 32TO 49.5MM3

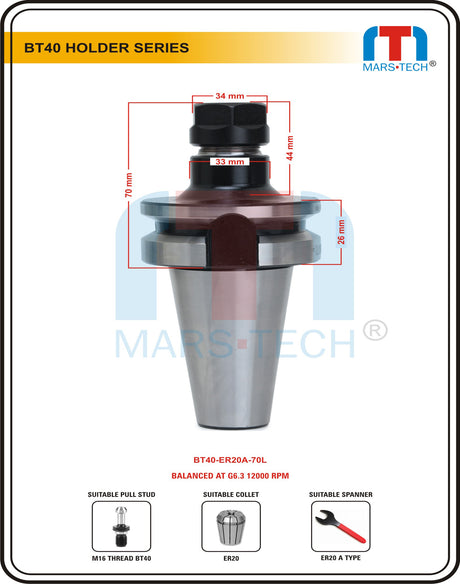

Mars-Tech BT40ER20A-collet chuck 70L,... from ₹ 1,505.00

BT40 Tool Holder accepts all ER20 collets ER20 Collets range from 1 mm to 14 mm Thread inside internal stop screwMade from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundCoolant through capabilityGage length is 70mm,100MM,150MM,200MMRear thread for pull stud is M16 X 2.0 All holders have capability to become through coolant by simply removing screw in the center by allen key

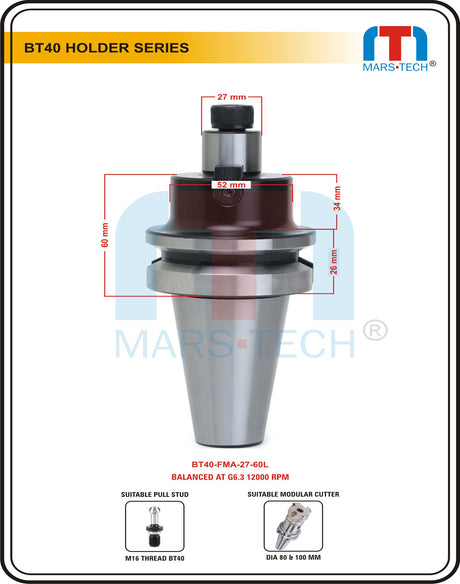

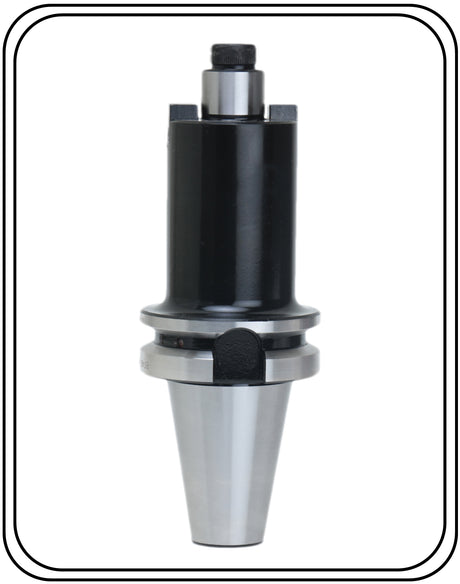

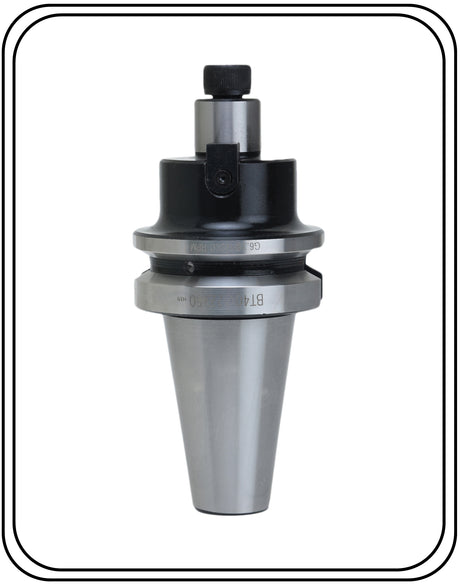

Mars-Tech BT40fmb 27 mm Face milling ... from ₹ 1,505.00

BT40 facemill holder also called facemill arbour and facemill adaptor BT40 FMA27 Is mainly used to hold Modular Indexable Cutter with Internal hole of 16 mm any cutter can come with a 27 mm Internal thread but normally 80 mm AND 100 mm Cutters are common in this range. Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundGage length is 50MM,100MM,150MM,200MM,250MM,300MMRear thread for pull stud is M16 X 2.0

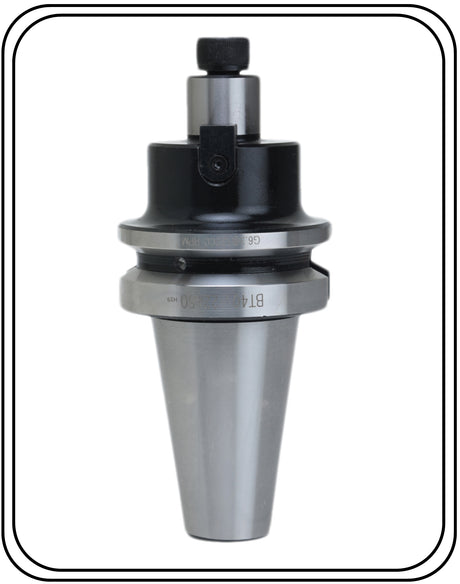

Mars-Tech BT40fmb 32mm Face milling ... from ₹ 1,505.00

BT40 facemill holder also called facemill arbour and facemill adaptor BT40 FMA32 Is mainly used to hold Modular Indexable Cutter with Internal hole of 16 mm any cutter can come with a 32 mm Internal thread but normally 100 mm AND 125 mm Cutters are common in this range. Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundGage length is 50MM,100MM,150MMRear thread for pull stud is M16 X 2.0

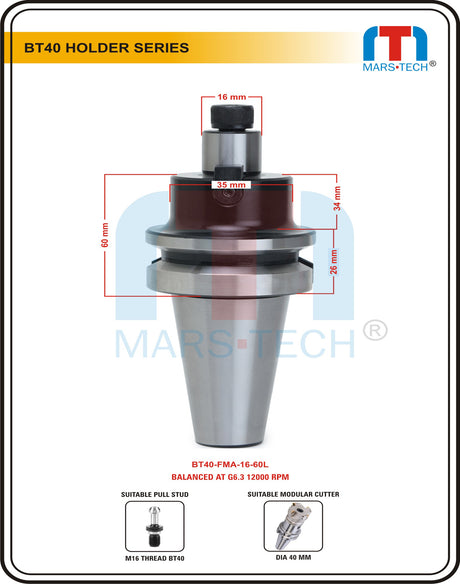

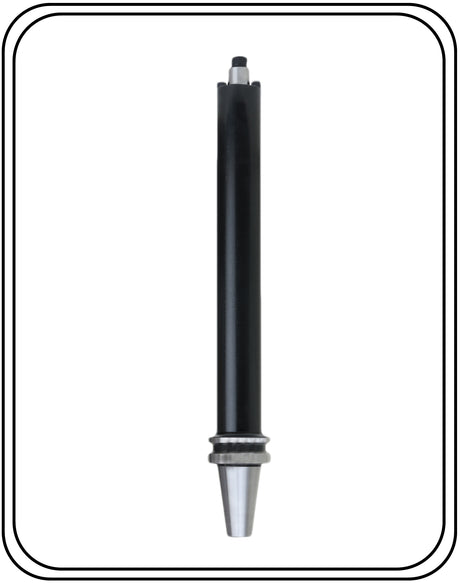

Mars-Tech BT40 fma16 mm face milling ... from ₹ 1,505.00

BT40 fma16 mm face milling holder arbourBT40 face mill holder also called face mill arbour and face mill adaptor BT40 FMA16 Is mainly used to hold Modular Indexable Cutter with an Internal hole of 16 mm any cutter can come with a 16 mm Internal thread but normally 40 mm Cutters are common in this range. Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundGage length is 70mm,100MM,150MM,200MM,250MM,300MMThe rear thread for the pull stud is M16 X 2.0

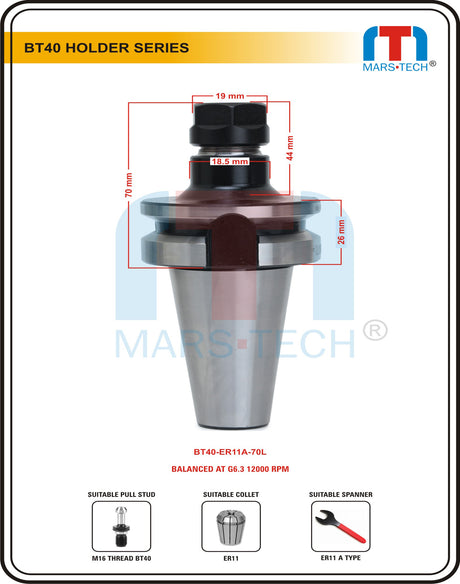

Mars-Tech BT40 ER11A Collet chuck-70L... from ₹ 1,505.00

BT40 ER11A Collet chuck-70L,100L,150LBT40 Tool Holder accepts all ER11 colletsThe thread inside internal stop screwMade from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micronsAll critical tool holder surfaces precision groundCoolant through capabilityThe gage length is 70mm The rear thread for the pull stud is M16 X 2.0 All holders have the capability to become through coolant by simply removing the screw in the center with allen key

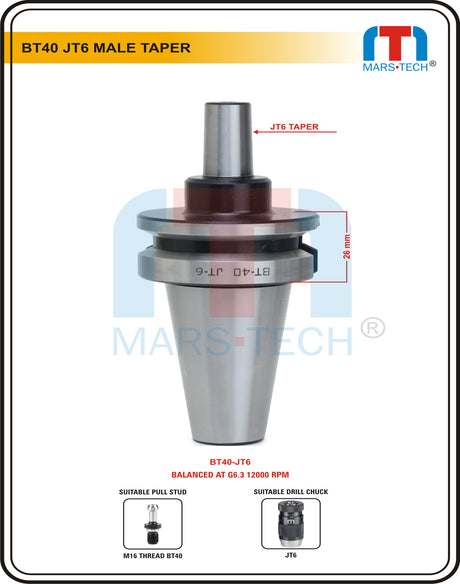

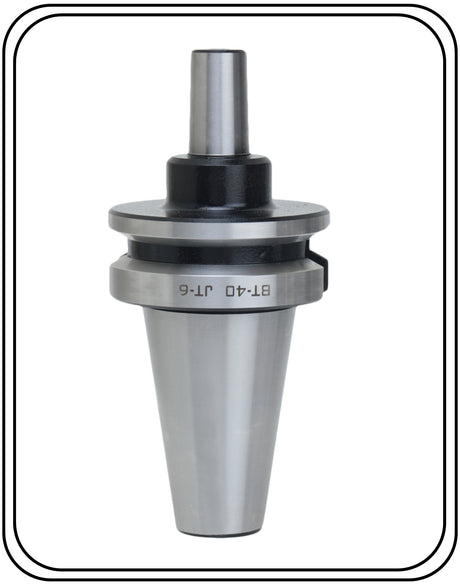

Mars-Tech BT40 JT6 Adaptor Holder For... ₹ 1,505.00

BT40 JT6 holders are mainly used to hold JT6 Female Taper , This holder have JT6 Male taper if anything like drill chuck have internal taper of JT6 so it can hold it easily with rigidity. Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundRear thread for pull stud is M16 X 2.0

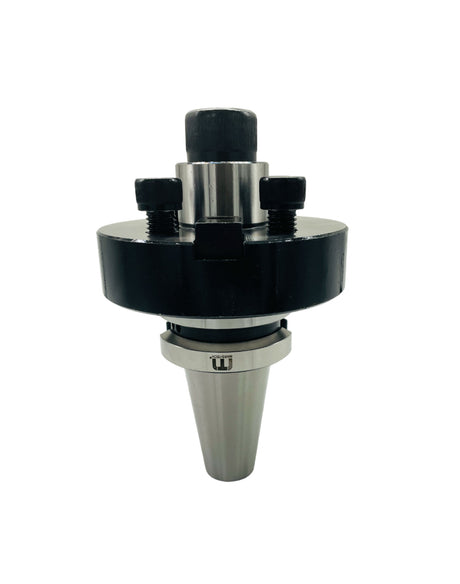

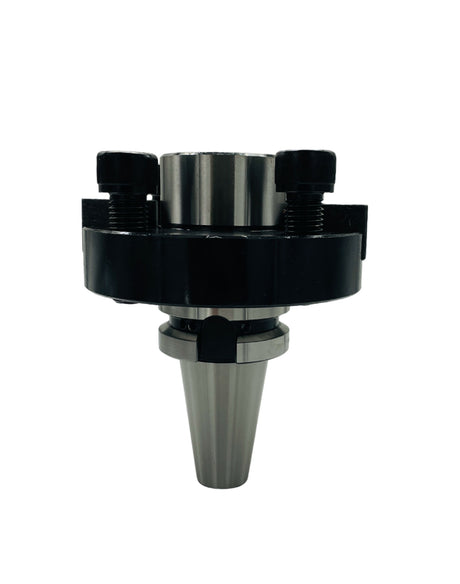

BT40 fmb 40 mm Face milling holder arbour

Mars-Tech BT40 fmb 40 mm Face millin... from ₹ 1,505.00

BT40 facemill holder also called facemill arbour and facemill adaptor BT40 FMA40 Is mainly used to hold Modular Indexable Cutter with Internal hole of 16 mm any cutter can come with a 40 mm Internal thread but normally 160mm AND 200 mm Cutters are common in this range. Made from alloy steel hardened to 54 – 56rcBalanced to G6.3 at 12,000 rpmsConcentricity is less than .005 micron upto 100 Length and 0.012 upto 200 LengthAll critical tool holder surfaces precision groundGage length is 70MM,100MM,150MM,Rear thread for pull stud is M16 X 2.0

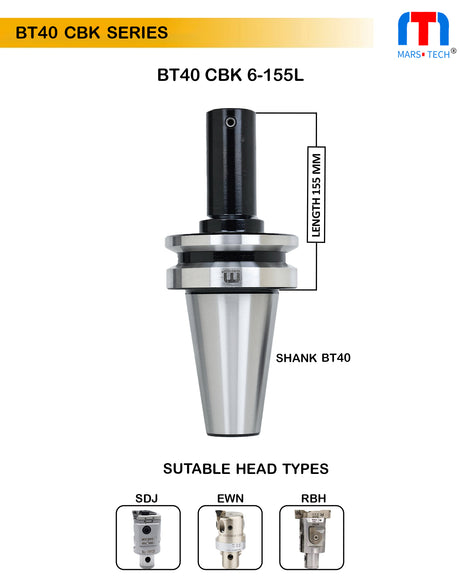

Mars-Tech BT40 CBK 6- 65/95/125/155/1... from ₹ 2,166.00

BT40 CBK 6- 65/95/125/155/185 Long pack of 1LBK also Called CBK is used for holding of SDJ EWN RBH kind of boring holders it has diffrent lengths to choose from variation balanced upto 12000 RPM

Mars-Tech BT40 CBK 4- 95/125/155/185 ... from ₹ 2,166.00

BT40 CBK 4- 95/125/155/185 Long pack of 1LBK also Called CBK is used for holding SDJ EWN RBH kind of boring holders it has different lengths to choose from variation balanced upto 12000 RPM

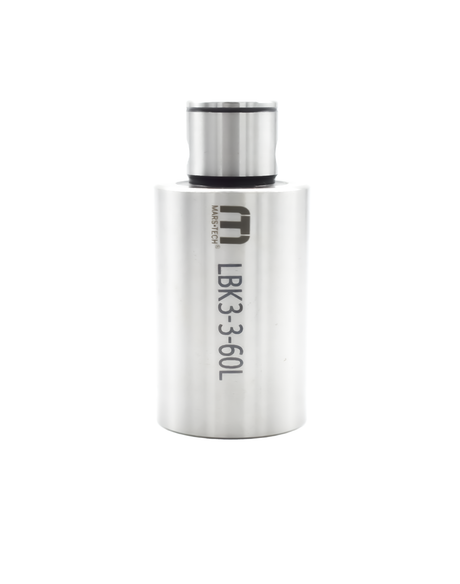

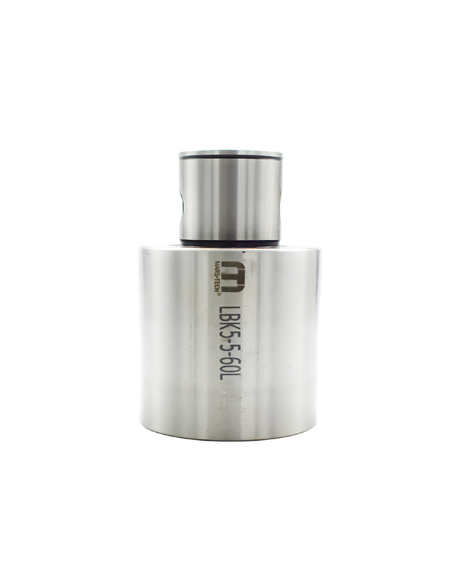

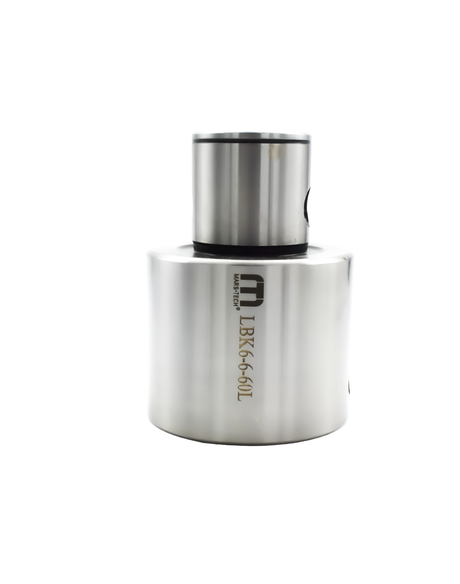

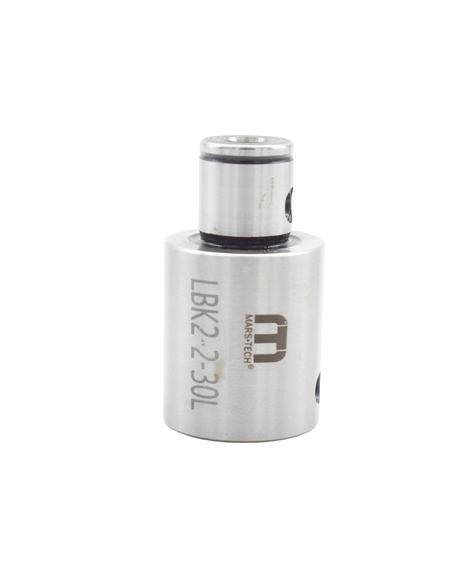

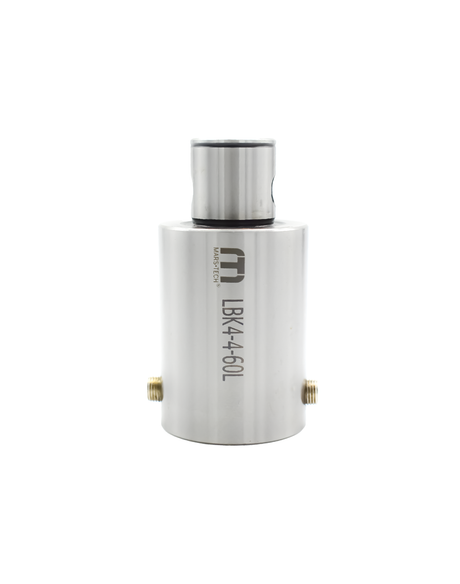

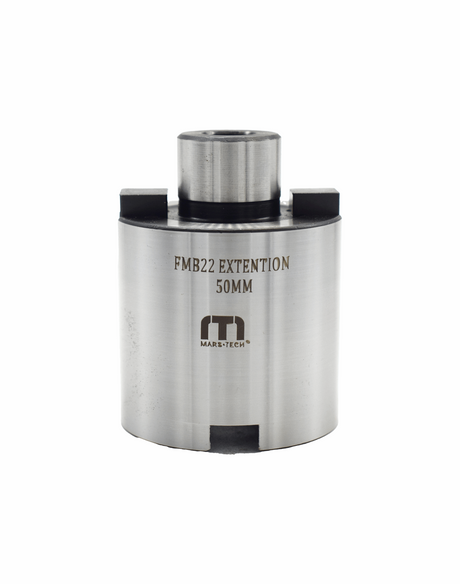

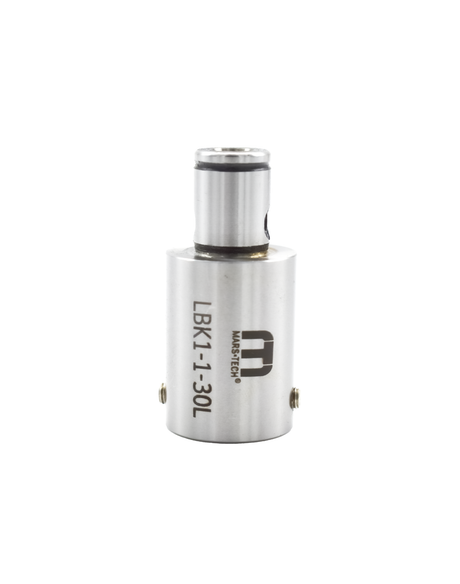

Mars-Tech cbk and lbk extensions pack... from ₹ 1,295.00

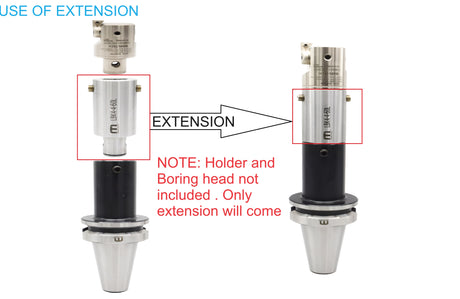

CBK AND LBK extension are used to increase the length of holder these are used in SDJ , EWN , TCT , TWIN boring head fine and rought

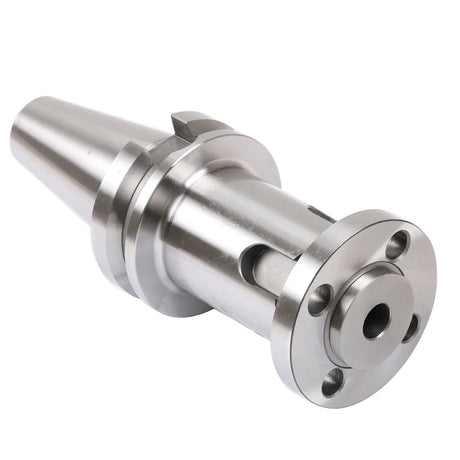

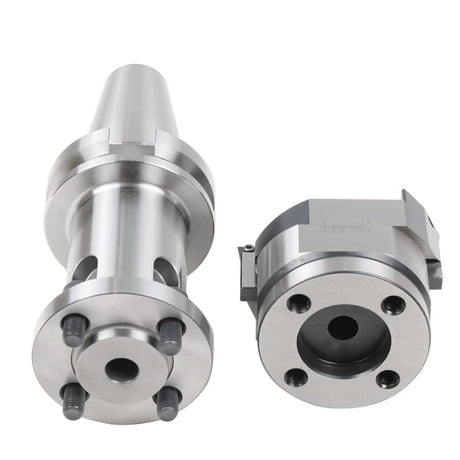

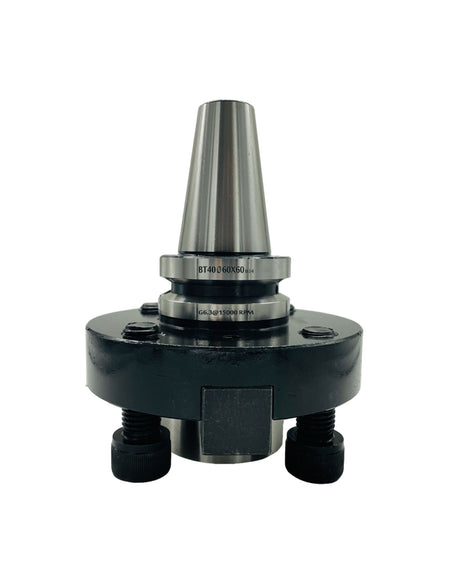

BT40 BST HOLDER for big size boring bars rough and finish PACK OF 1

Mars-Tech BT40 BST HOLDER for big siz... from ₹ 5,607.00

BST adaptors are only used for rough and finish boring head which require BST type of holders , screws to fix into bst holder comes with boring head not with holder comes in different length please choose length from variations BST boring adapter for roughing and finishing boring tools

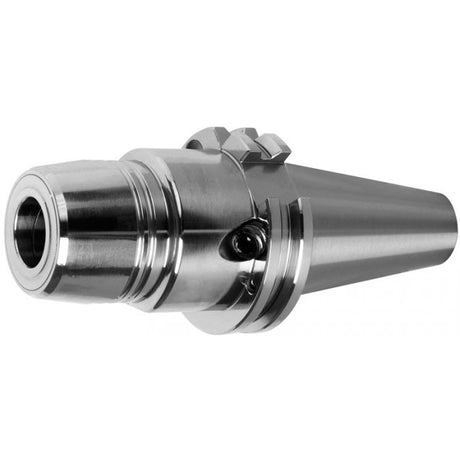

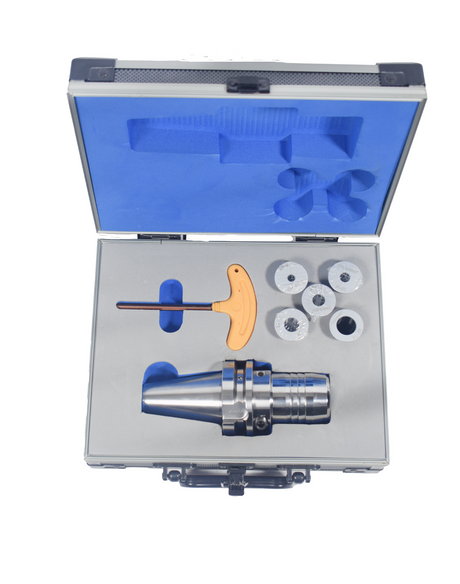

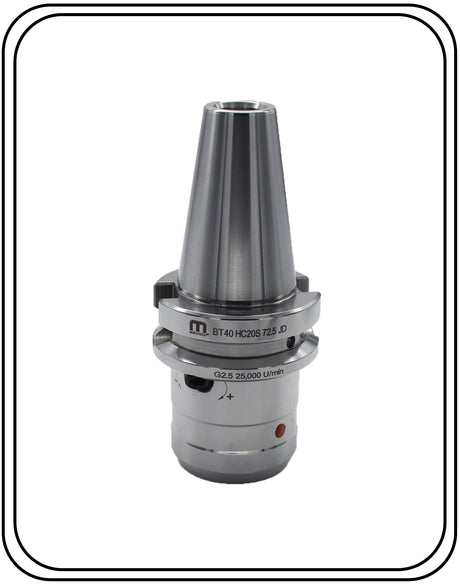

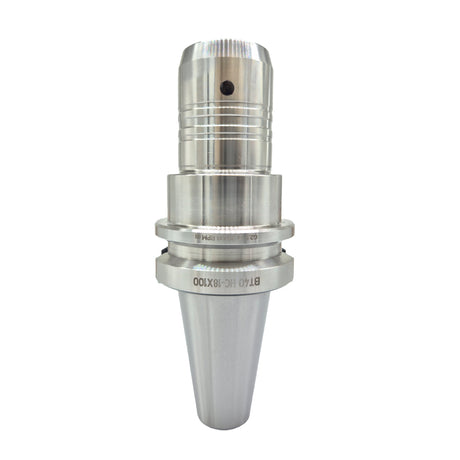

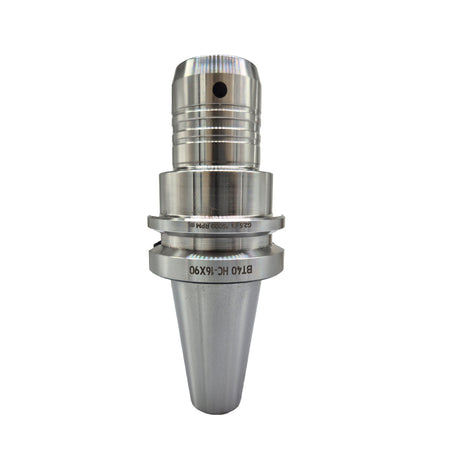

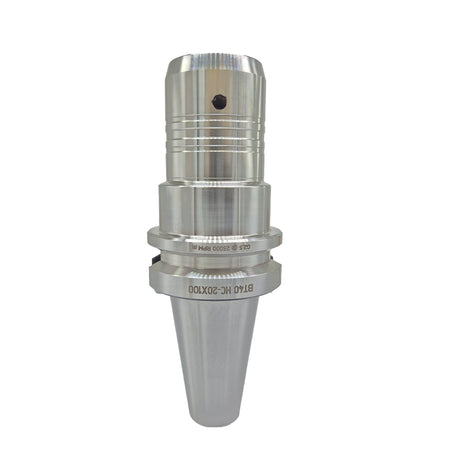

Mars-Tech BT40 20MM-72.5 L Hydro Grip... ₹ 11,891.00

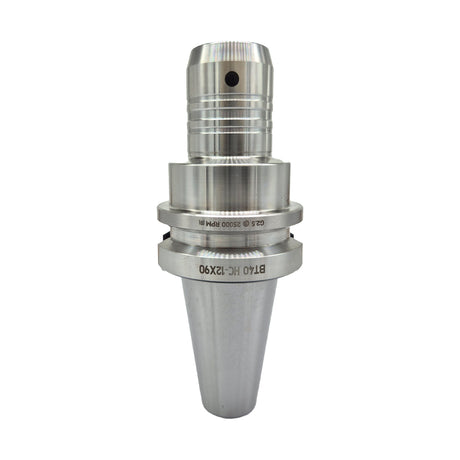

BT40 20MM-72.5 L Hydro Grip holder pack of 1Hydrogrip balanced upto 25000 rpm 20 mm inside id which can fit a 20 mm shank directly and for shorter shanks use a reduction sleeve

Mars-Tech BT40 CBK 2- 85/115/145/185 ... from ₹ 2,166.00

BT40 CBK 2- 85/115/145/185 Long pack of 1LBK also Called CBK is used for holding of SDJ EWN RBH kind of boring holders it has diffrent lengths to choose from variation balanced upto 12000 RPM
