Collets play an essential role in achieving superior results. Among the most trusted and versatile collets in the industry is the ER32 collet. Whether you're a professional machinist or a hobbyist, understanding the ER32 collet and its applications can significantly enhance your machining projects. In this blog, we’ll explore what ER32 collets are, their key features, applications, advantages, and tips for selecting and maintaining them.
What is an ER32 Collet?

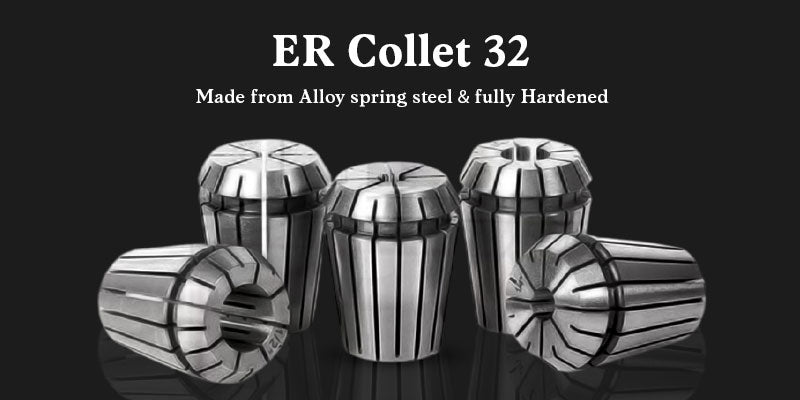

ER32 collet is a clamping device used to hold cylindrical tools or workpieces during machining operations securely. It belongs to the ER collet family, known for its Elastic Range (ER) design, which allows the collet to flex slightly to accommodate variations in tool or workpiece diameters. The number 32 refers to the collet's size, specifically its maximum clamping capacity.ER32 collets are widely used in milling, drilling, grinding, and CNC machining applications. They are designed to provide a strong, secure grip on cutting tools, ensuring accuracy and minimizing runout (deviation from true rotation).
Key Features of ER32 Collets
1. Wide Clamping Range
ER32 collets are highly versatile and capable of accommodating tools ranging from 1 mm to 20 mm in diameter, depending on the specific collet size. This reduces the need for multiple collets, saving time and money.
2. High Precision
Engineered for precision, ER32 collets ensure minimal runout, which is critical for achieving tight tolerances and high-quality finishes in machining operations.
3. Durability
Made from high-quality materials like hardened steel or spring steel, ER32 collets are built to withstand heavy-duty machining. They are resistant to wear and tear, ensuring a long service life.
4. Easy to Use
ER32 collets are designed for quick and easy tool changes. They are compatible with ER32 collet chucks and nuts, making them a convenient choice for machinists.
5. Versatility
These collets can be used with a variety of tools, including end mills, drills, reamers, and taps, making them suitable for a wide range of applications across different industries.
Applications of ER32 Collets
ER32 collets are incredibly versatile and can be used in numerous machining operations. Here are some of the most common applications:
1. CNC Machining
In CNC machines, precision is paramount. ER32 collets are widely used to hold cutting tools securely, ensuring accurate and repeatable results.
2. Milling
Whether you're working on a manual or CNC milling machine, ER32 collets provide a reliable grip on milling cutters, allowing for precise material removal.
3. Drilling
ER32 collets are ideal for holding drill bits of various sizes, ensuring stability and accuracy during drilling operations.
4. Grinding
In grinding applications, ER32 collets help maintain the alignment of grinding tools, resulting in smooth and consistent finishes.
5. Lathe Operations
While ER collets are more commonly associated with milling and drilling, they can also be used in lathe operations to hold small workpieces securely.
Advantages of Using ER32 Collets
1. Improved Accuracy
The precision design of ER32 collets ensures minimal runout, which translates to better accuracy and surface finishes in your machining projects.
2. Cost-Effective
Thanks to their wide clamping range, ER32 collets reduce the need for multiple collets, saving you money on tooling costs.
3. Time-Saving
The quick-change design of ER32 collets allows for faster tool changes, increasing productivity and reducing downtime.
4. Compatibility
ER32 collets are compatible with a wide range of machines and tool holders, making them a versatile addition to any workshop.
5. Secure Grip
The elastic design of ER32 collets ensures a tight and secure grip on tools, reducing the risk of slippage during machining.
How to Choose the Right ER32 Collet
When selecting an ER32 collet, consider the following factors:
1. Material
ER32 collets are typically made from hardened steel or spring steel. Hardened steel collets offer greater durability, while spring steel collets provide more flexibility.
2. Clamping Range
Ensure the collet you choose can accommodate the tool sizes you commonly use. ER32 collets are available in various sizes to suit different applications.
3. Quality
Always opt for high-quality collets from reputable manufacturers. Cheap, low-quality collets may not provide the precision and durability you need.
4. Compatibility
Make sure the collet is compatible with your machine's spindle and collet chuck.
Maintenance Tips for ER32 Collets
To ensure the longevity and performance of your ER32 collets, follow these maintenance tips:
1. Clean Regularly
After each use, clean the collet and collet nut to remove any debris or coolant residue. This prevents buildup that can affect performance.
2. Inspect for Wear
Regularly inspect your collets for signs of wear, such as cracks or deformation. Replace worn collets to maintain precision.
3. Lubricate
Apply a light coat of lubricant to the collet and nut threads to ensure smooth operation and prevent corrosion.
4. Store Properly
Store collets in a clean, dry place to protect them from damage and contamination.
Conclusion
The ER32 collet is a versatile, precision tool that plays a crucial role in machining operations. Its wide clamping range, durability, and ease of use make it a favorite among machinists worldwide. Whether you're working on a CNC machine, milling, drilling, or grinding, the ER32 collet can help you achieve accurate and consistent results. Investing in high-quality ER32 collets is a smart move for anyone looking to enhance their machining capabilities. With proper care and maintenance, these collets will serve you well for years to come, ensuring your projects are always completed to the highest standards. So, the next time you're setting up for a machining job, don't overlook the importance of a reliable ER32 collet. It might just be the key to unlocking your next masterpiece! By understanding and utilizing ER32 collets effectively, you can elevate your machining projects to new levels of precision and efficiency. Happy machining
