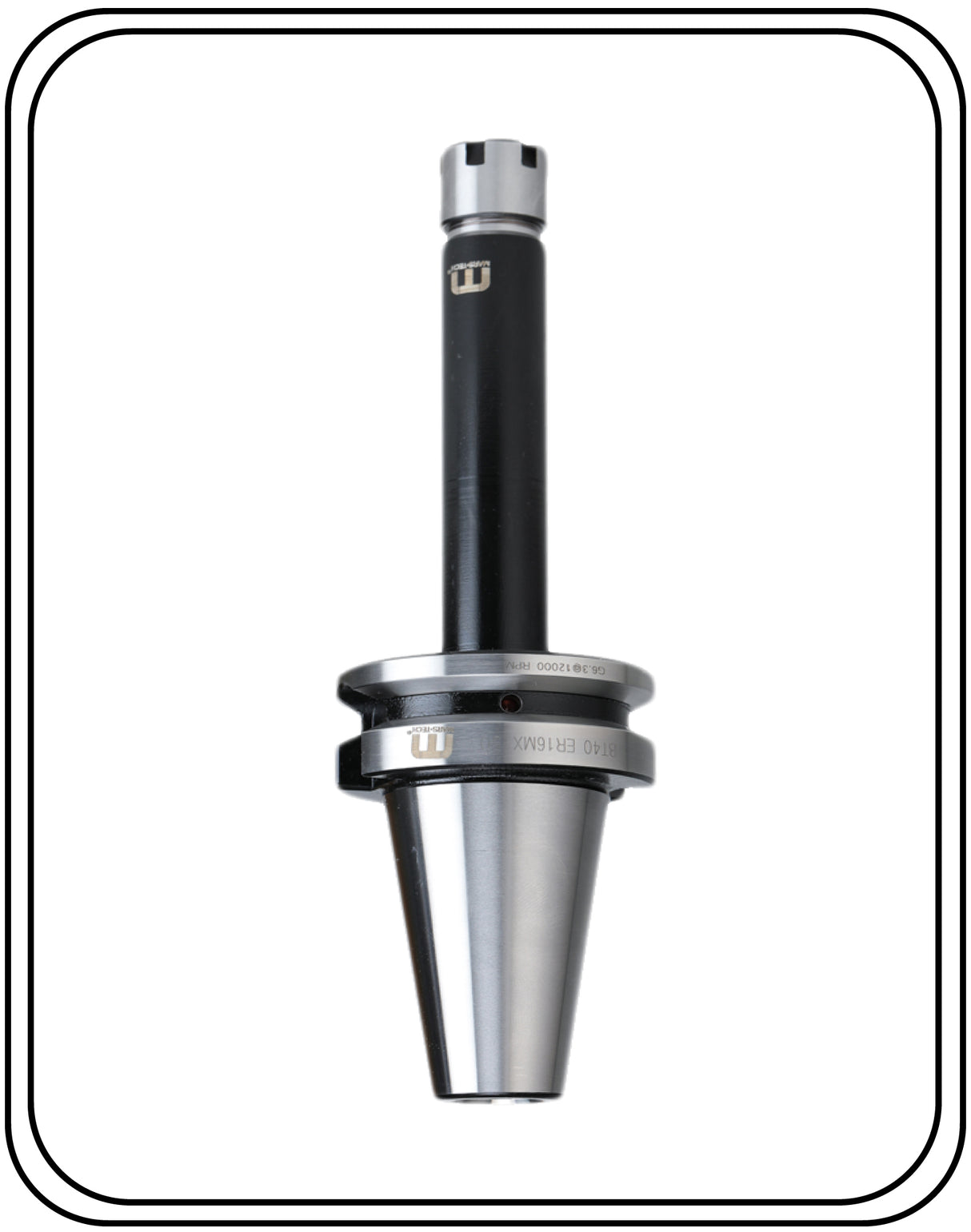

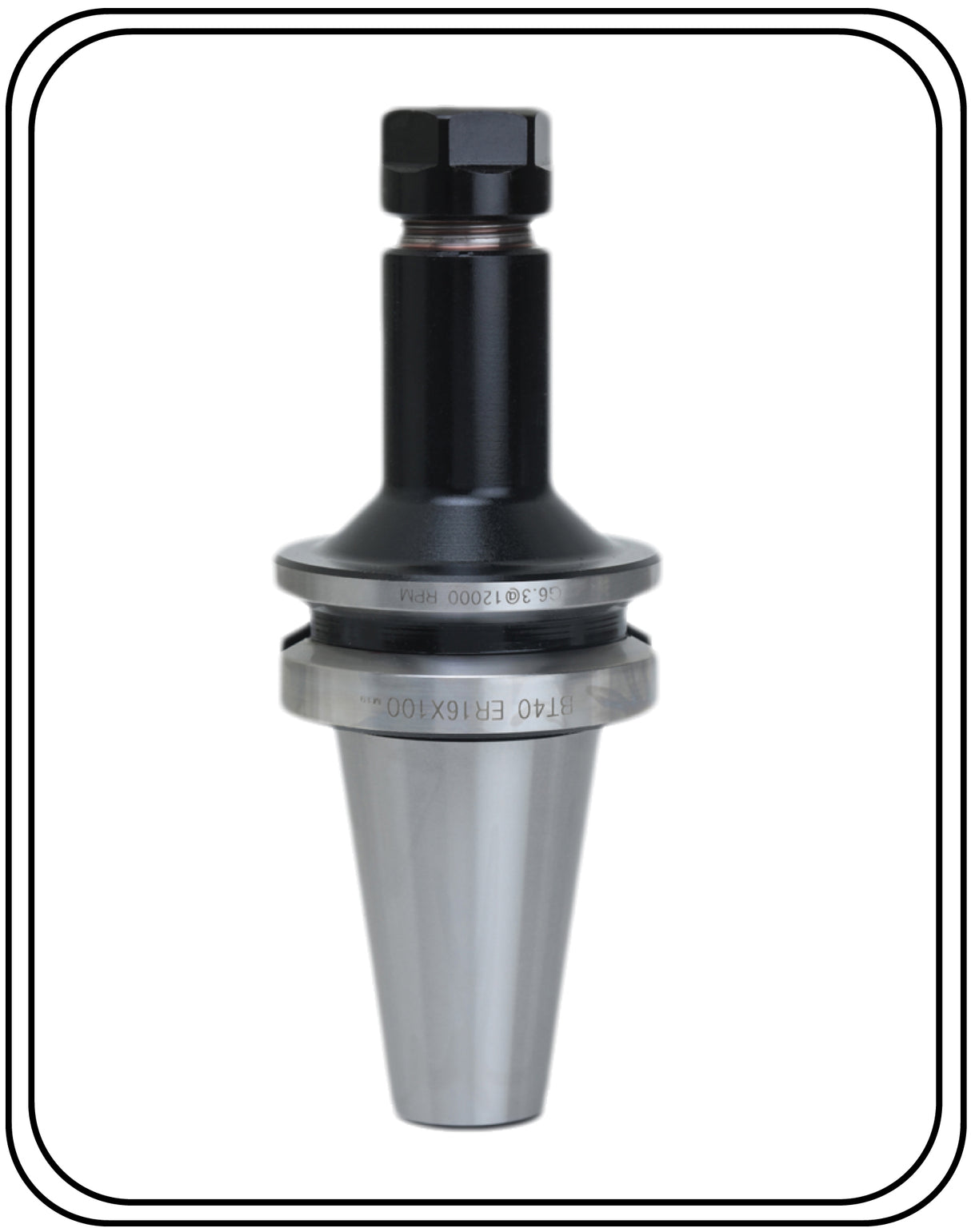

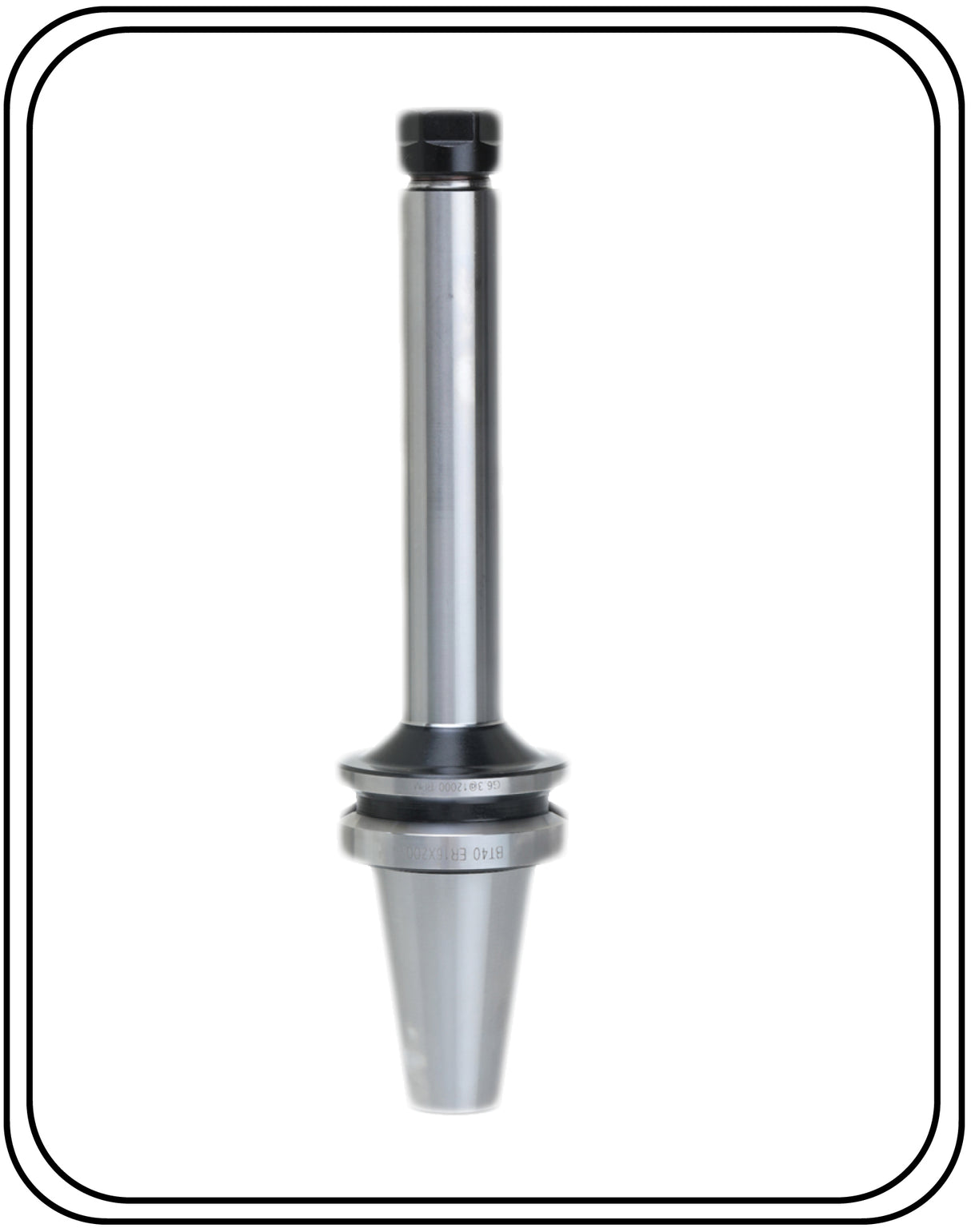

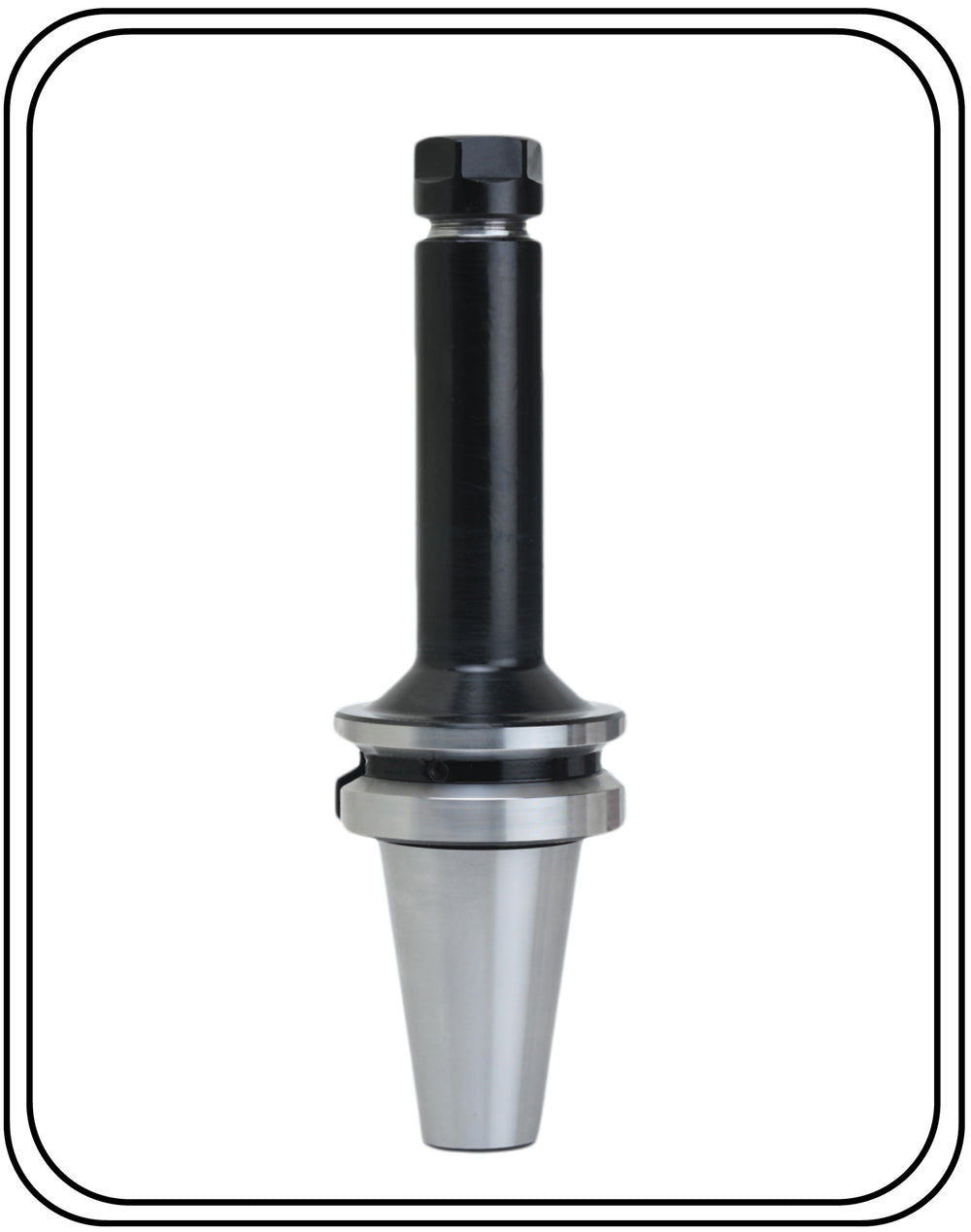

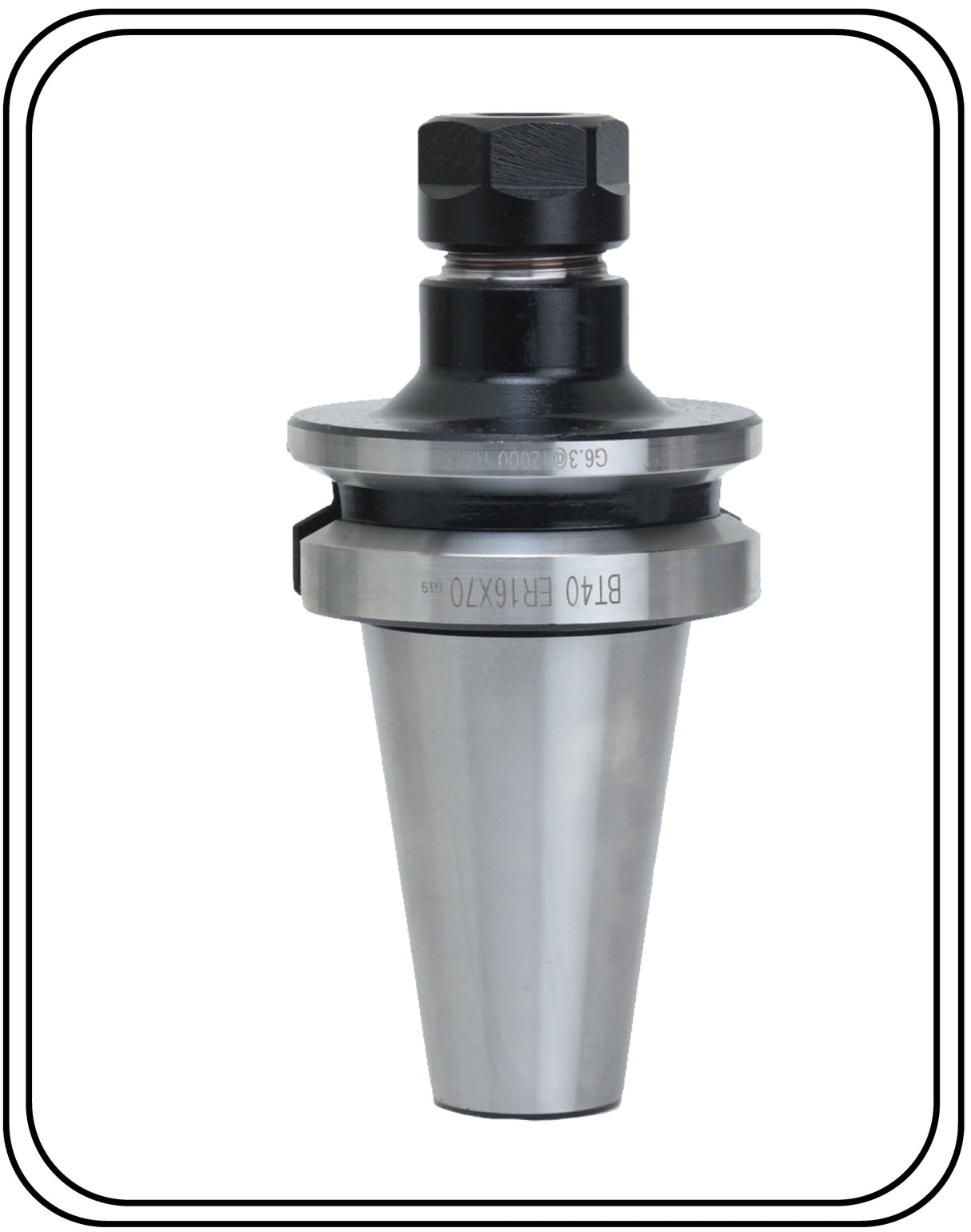

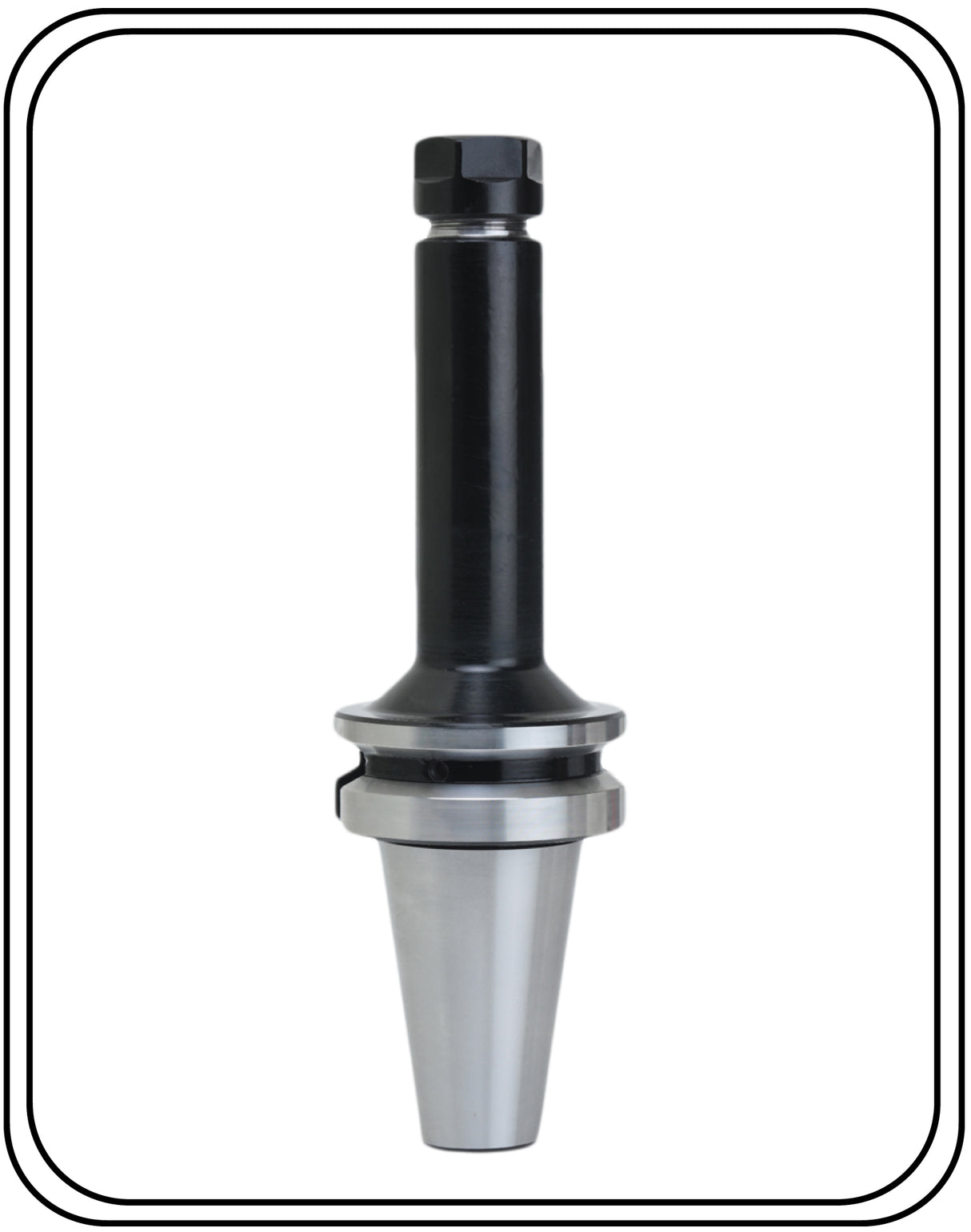

Thumbnail for BT40 ER COLLET CHUCK ER16A

BT40ER16 collet chuck-70L,100L,150L,200L

Brand - Mars-Tech

₹ 1,505.00

SKU: JBRS0389

Size

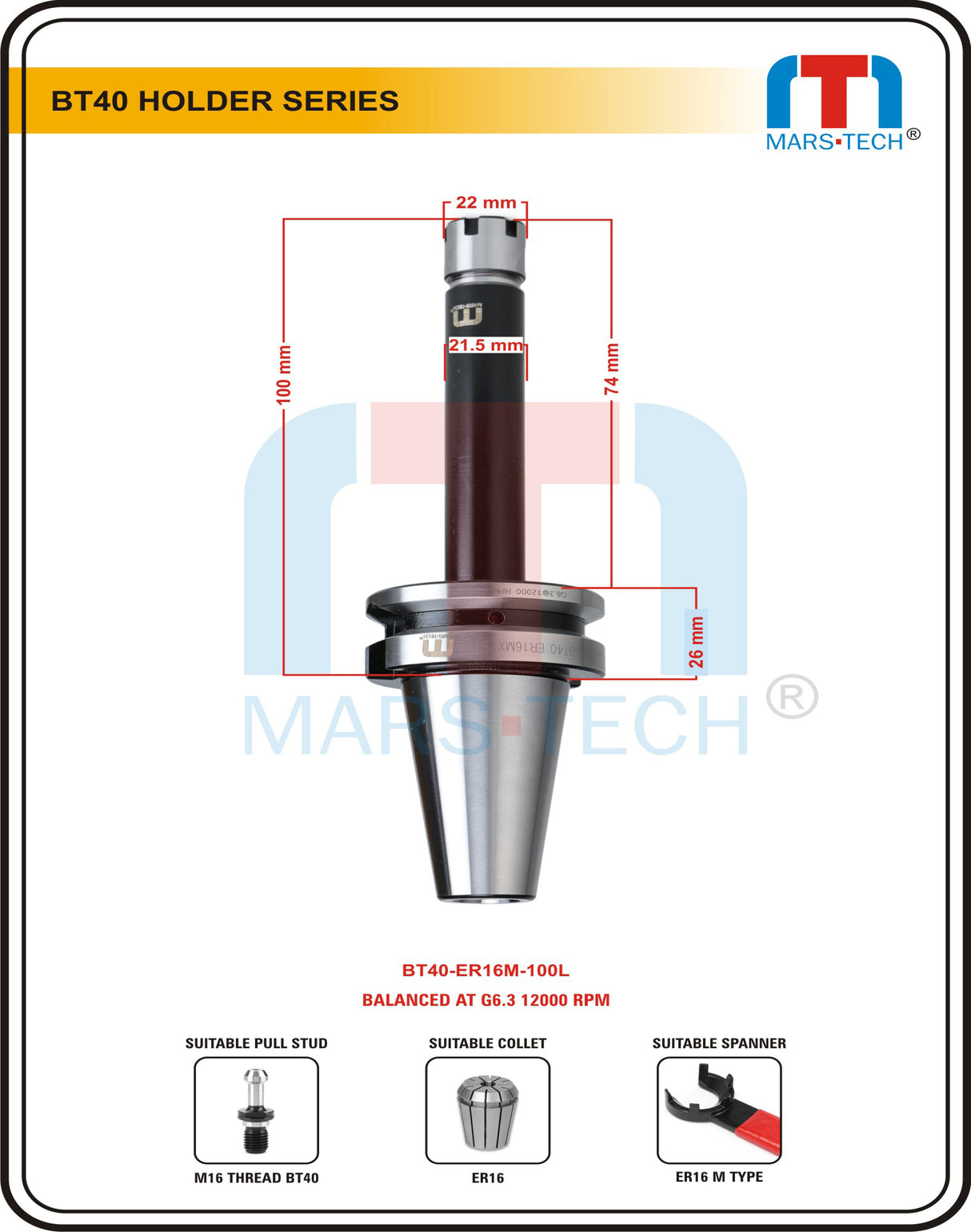

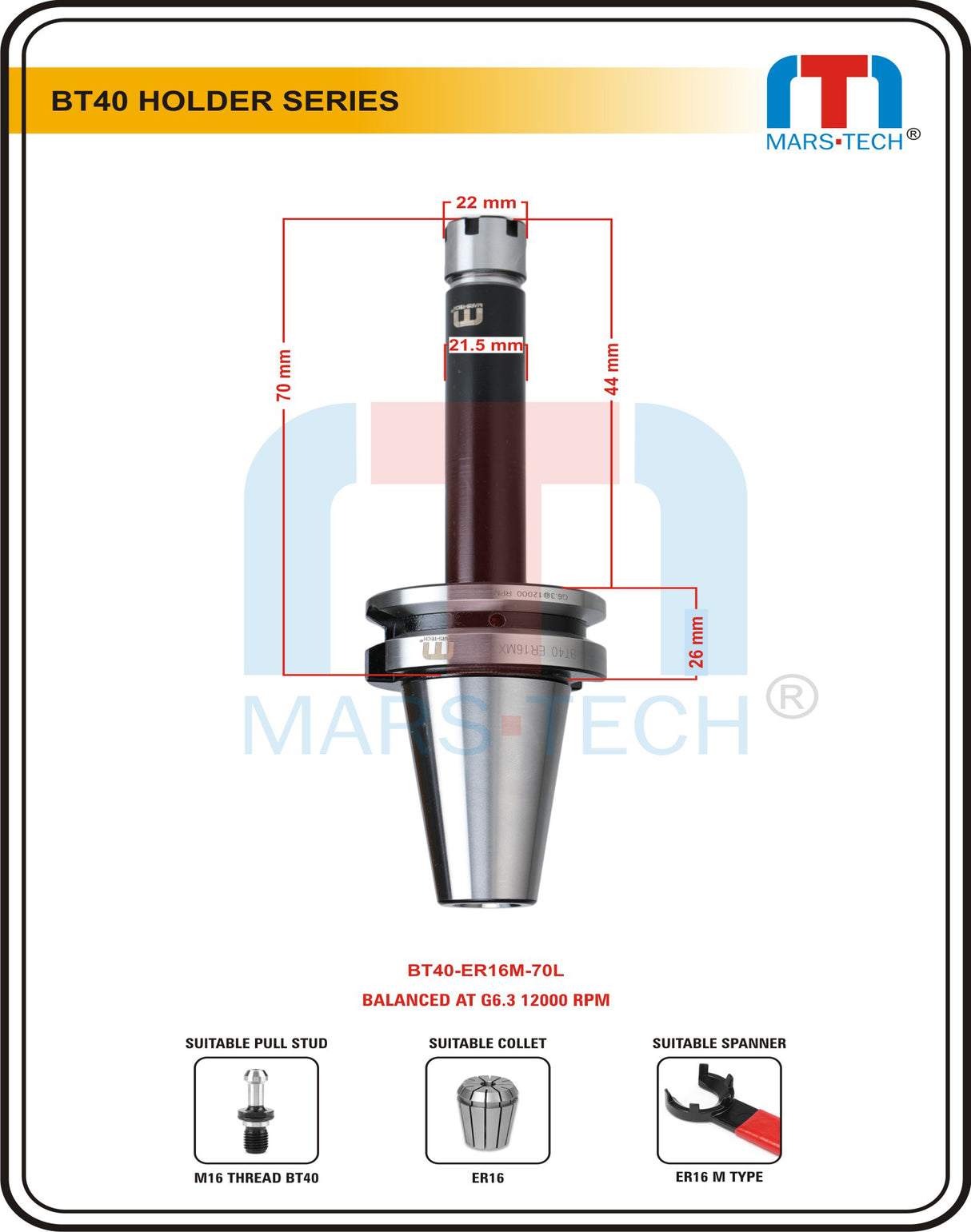

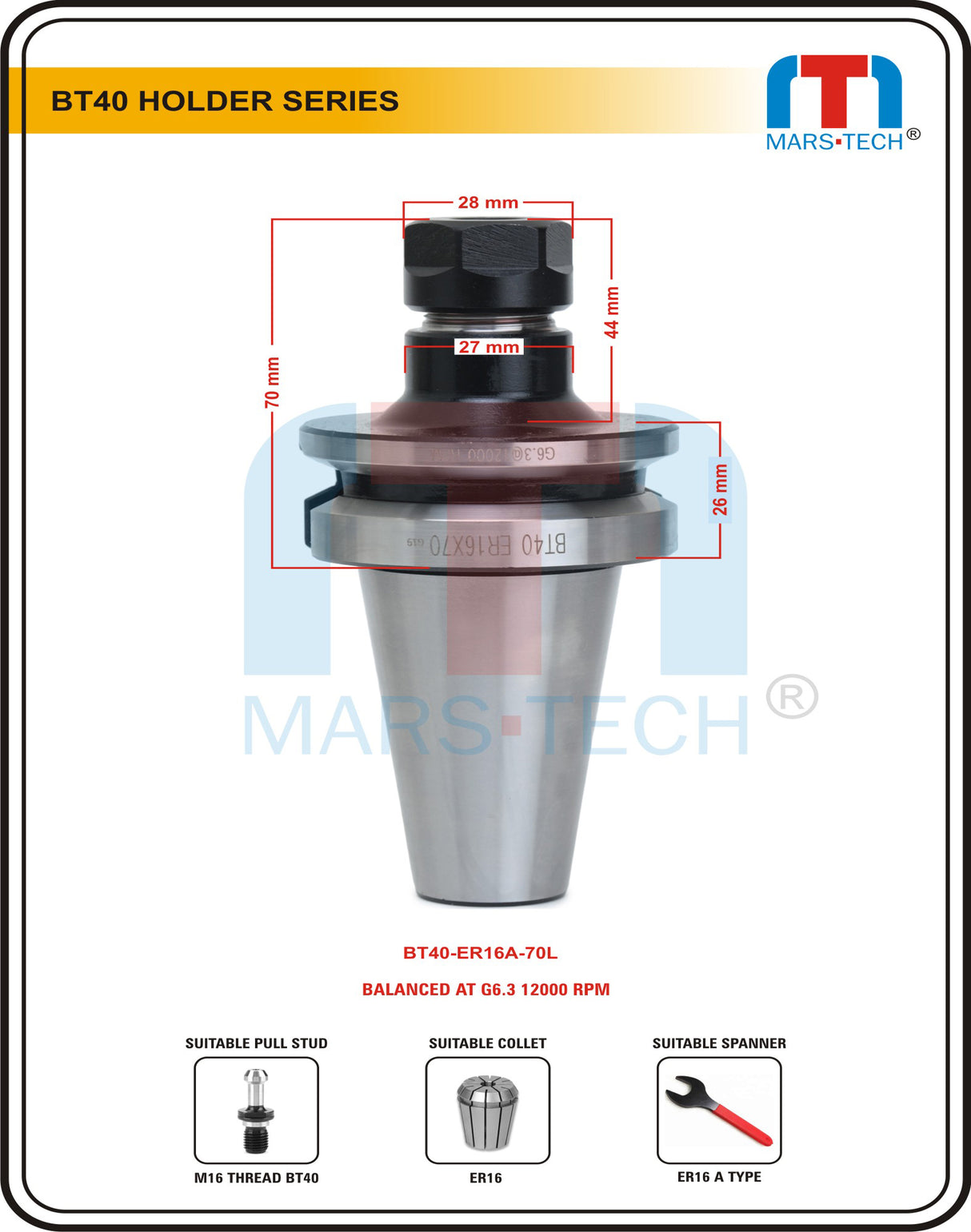

BT40 ER16A-70L BT40 ER16A-100L BT40 ER16A-150L BT40 ER16A-200L BT40 ER16M-70L BT40 ER16M-100L BT40 ER16M-150L

0 LEFT IN STOCK

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

BT40 Tool Holder accepts all ER16 collets

ER16 Collets range from 1 mm to 12 mm
Thread inside internal stop screw
Made from alloy steel hardened to 54 – 56rc
Balanced to G6.3 at 12,000 rpms
Concentricity is less than .005 micron upto 100 Length and 0.012 upto 200 Length
All critical tool holder surfaces precision ground
Coolant through capability

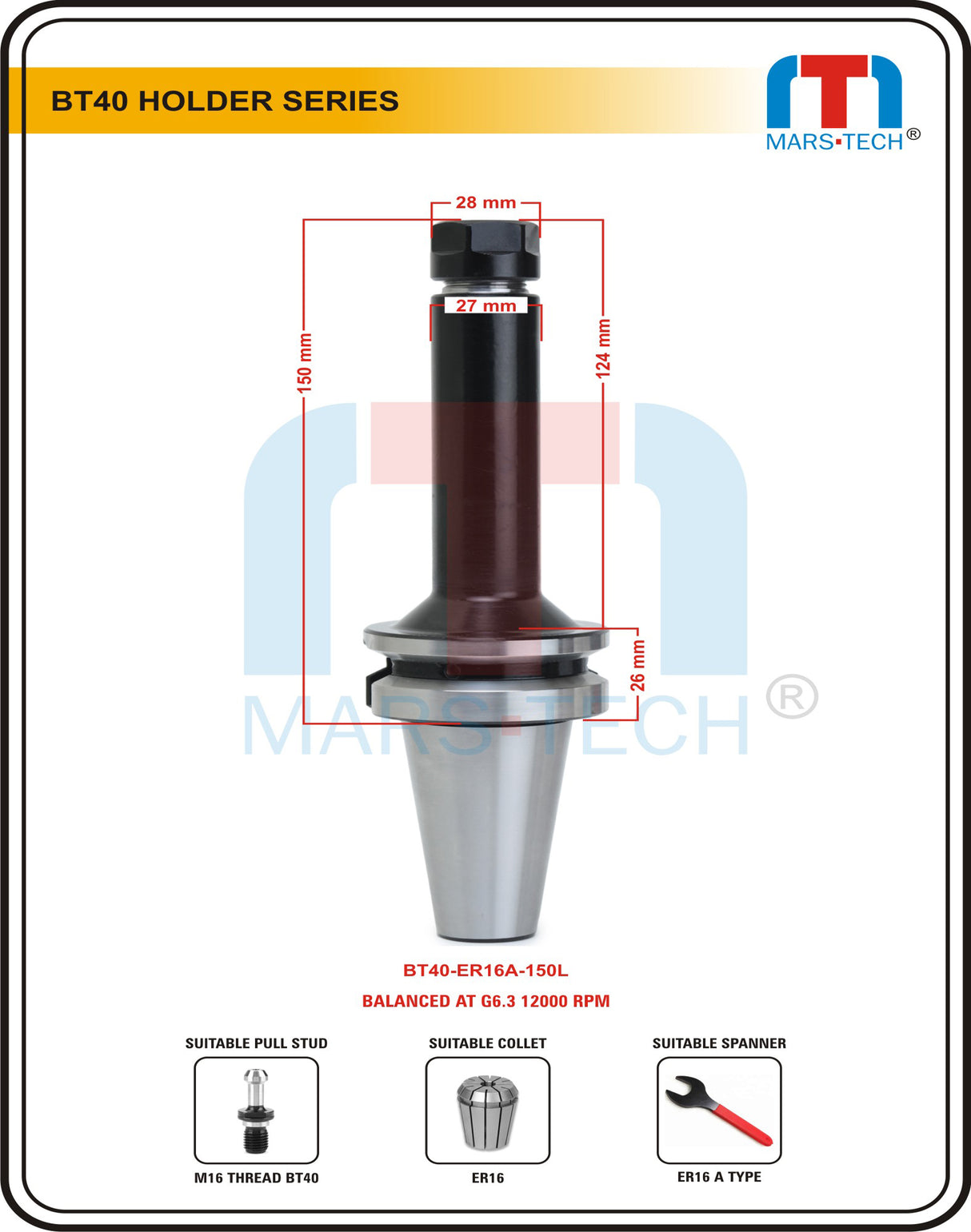

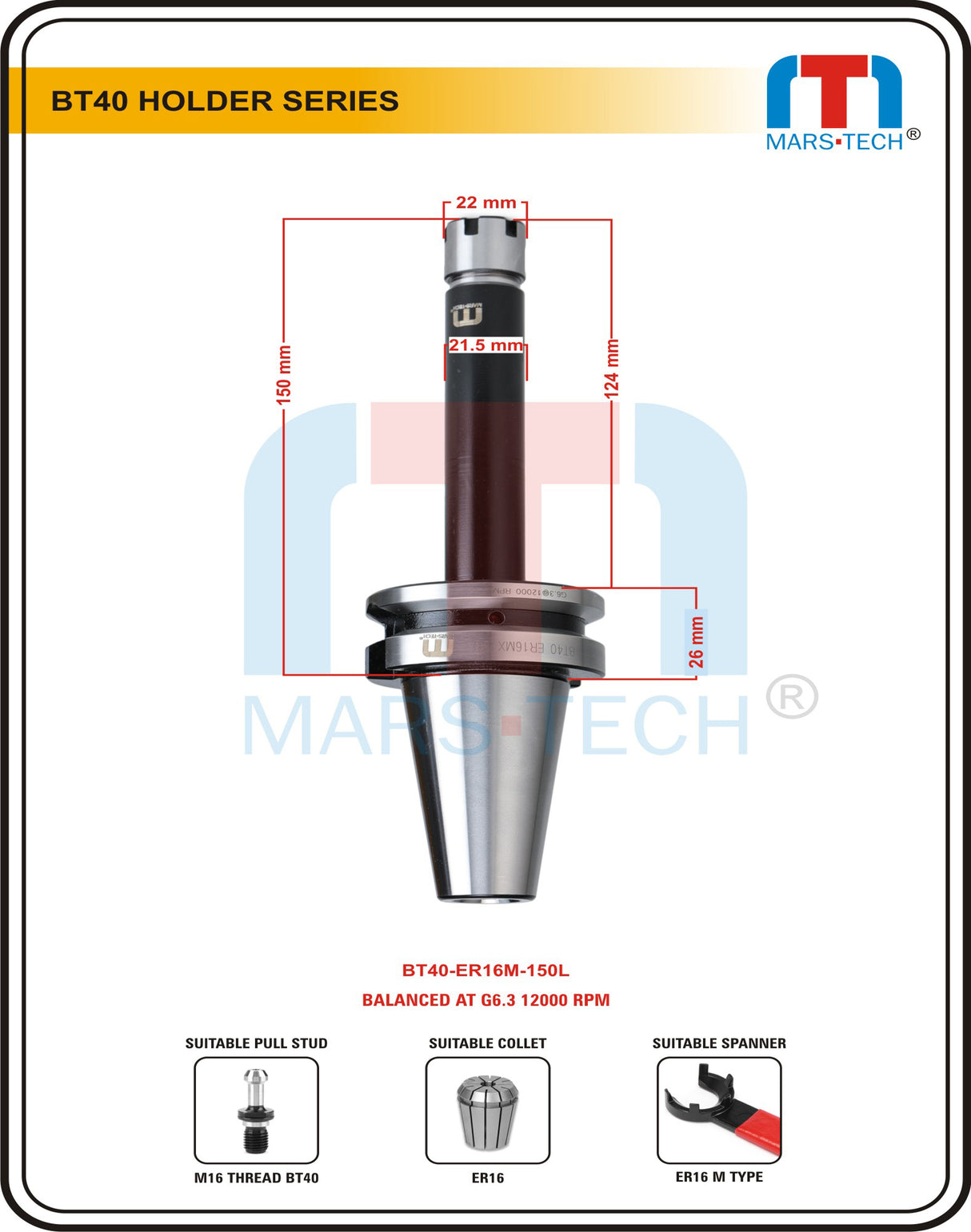

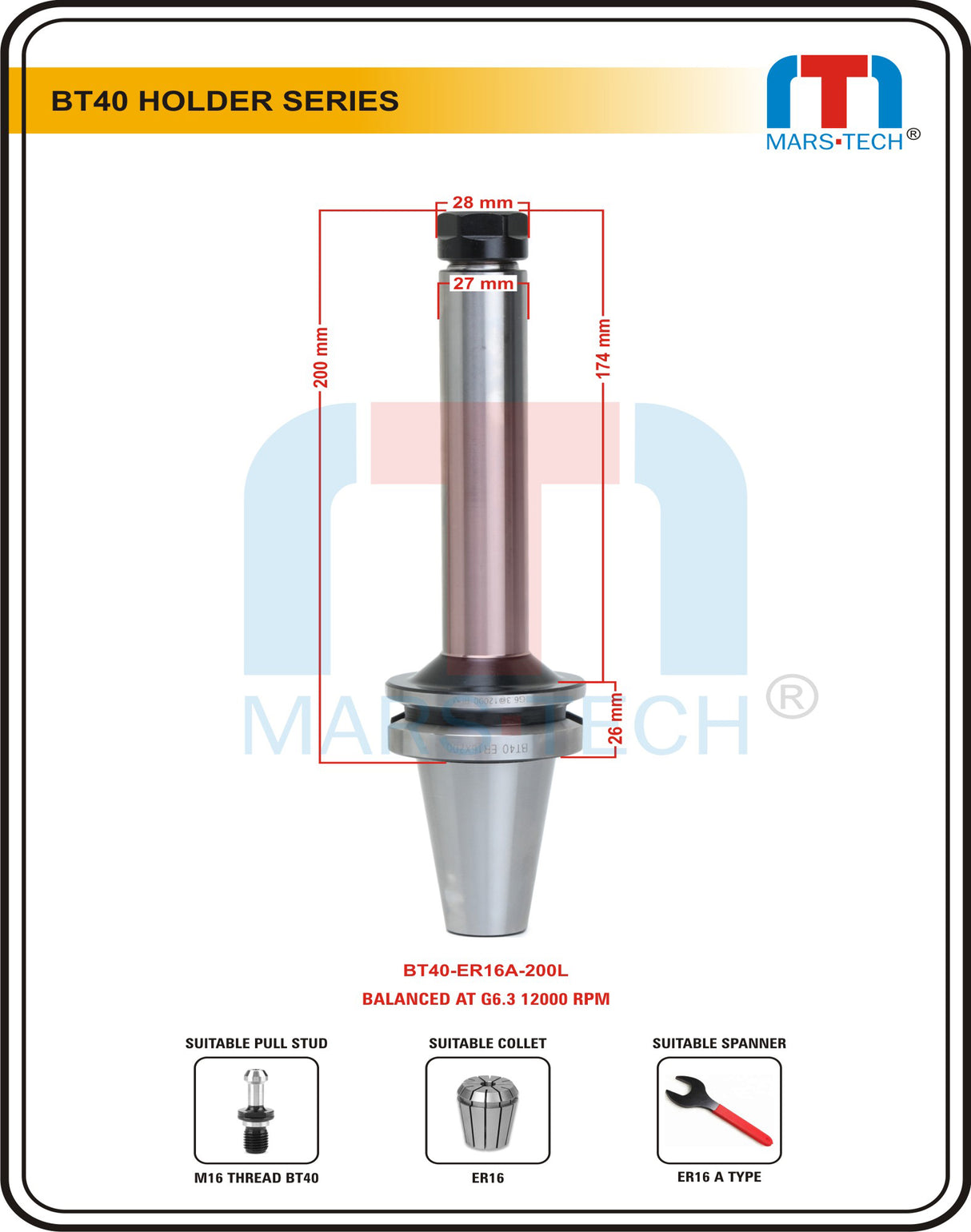

Gage length is 70mm,100MM,150MM,200MM

Rear thread for pull stud is M16 X 2.0

All holders have capability to become through coolant by simply removing screw in the center by allen key

Products are usually delivered in 3-7 days depending upon your location.
