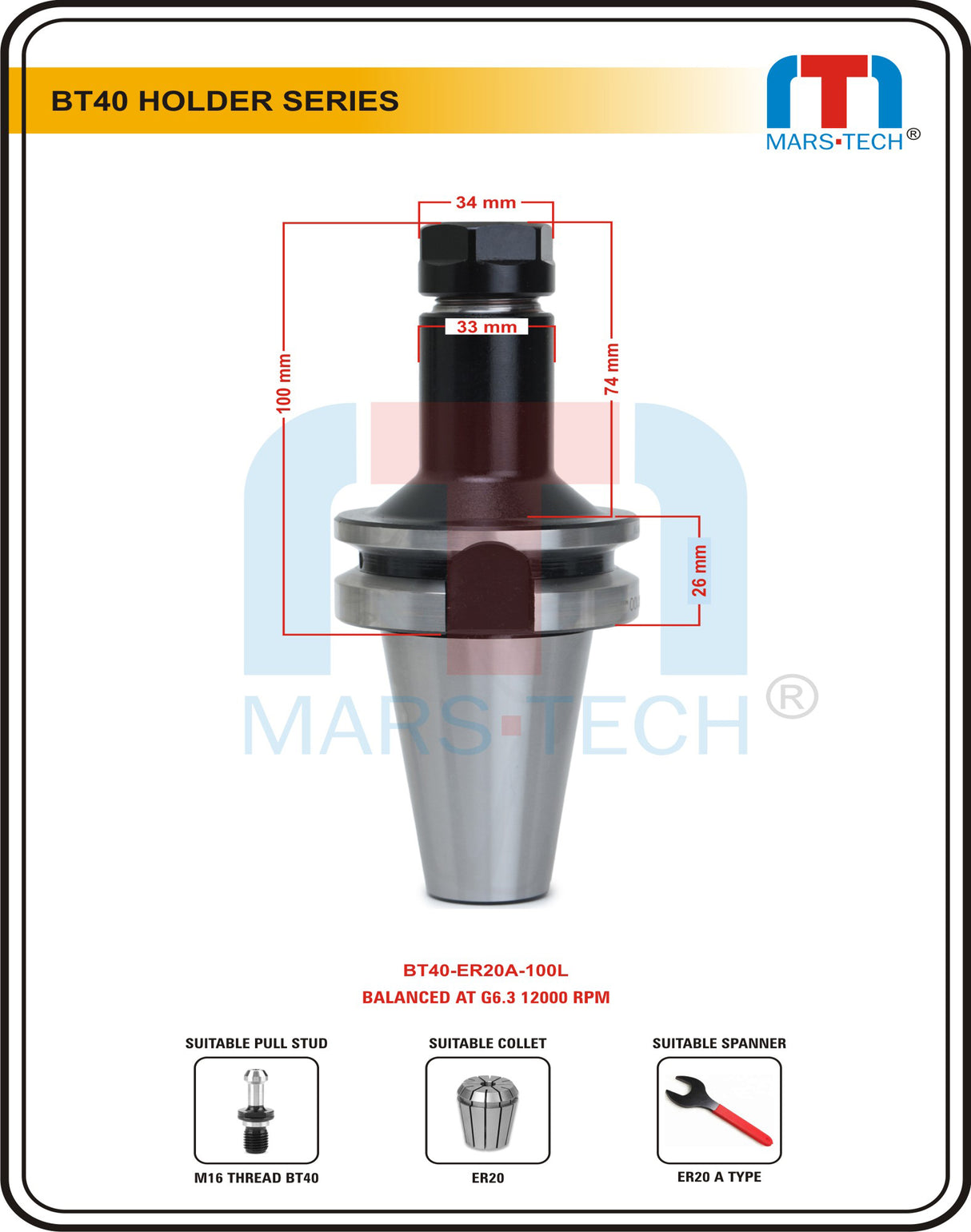

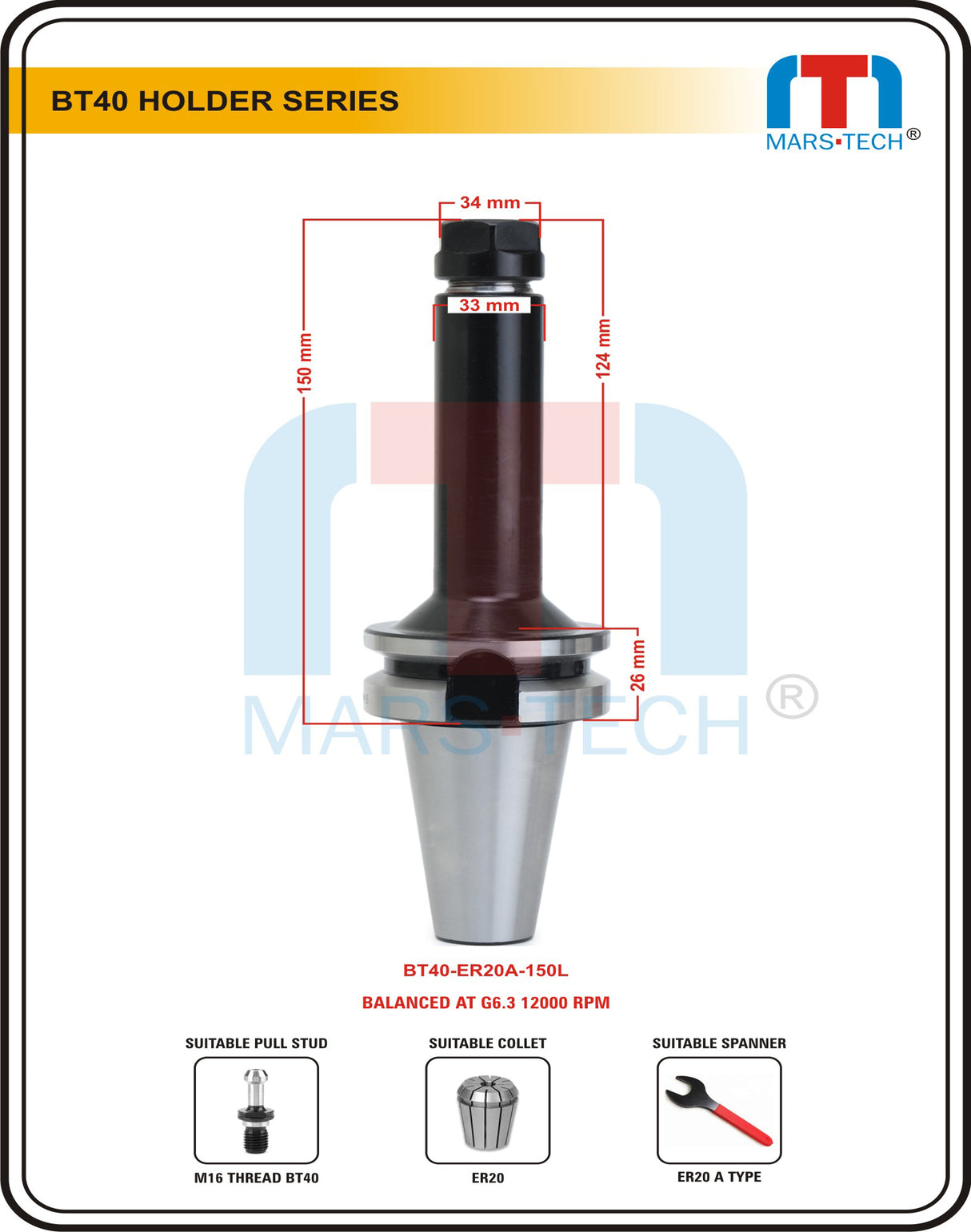

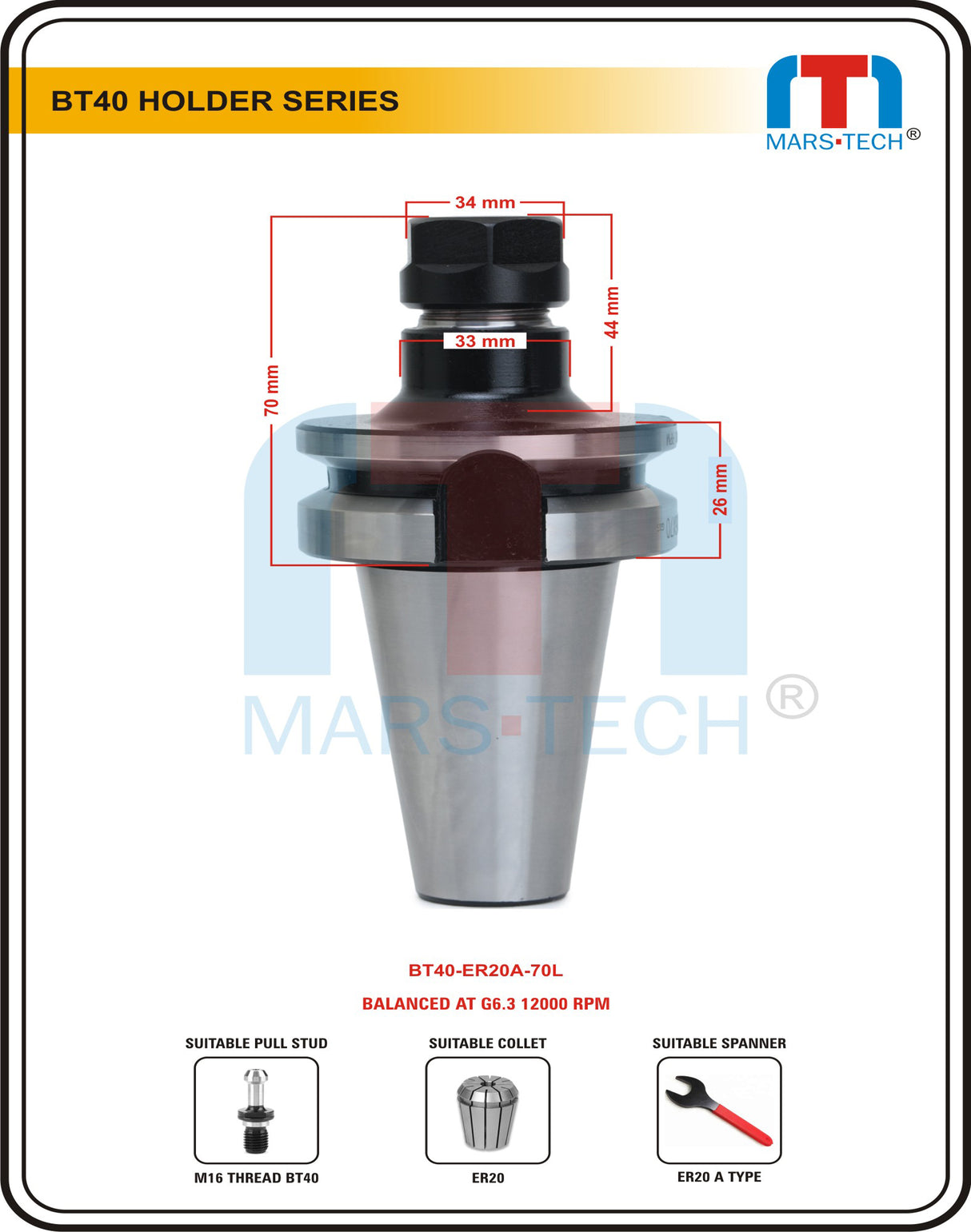

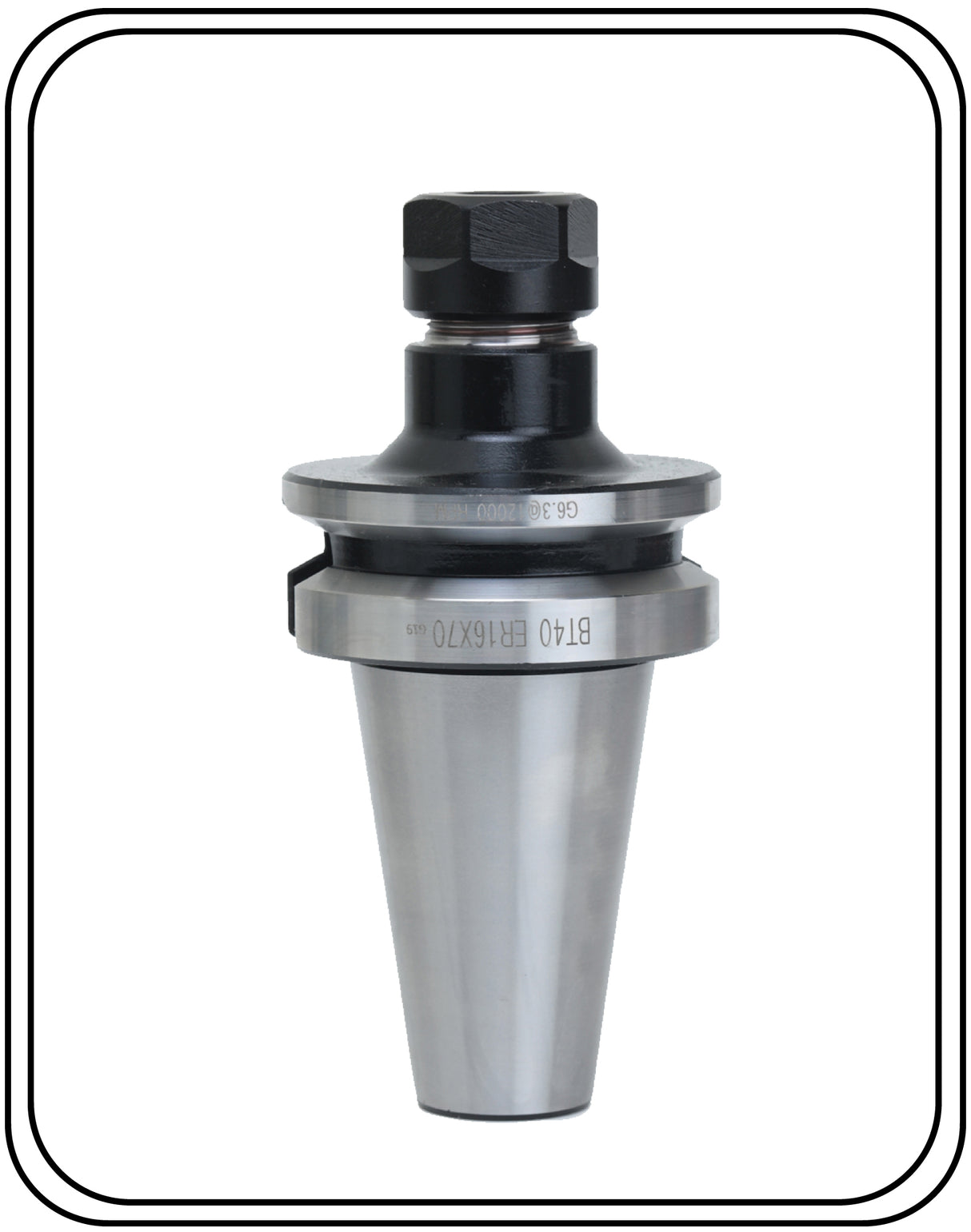

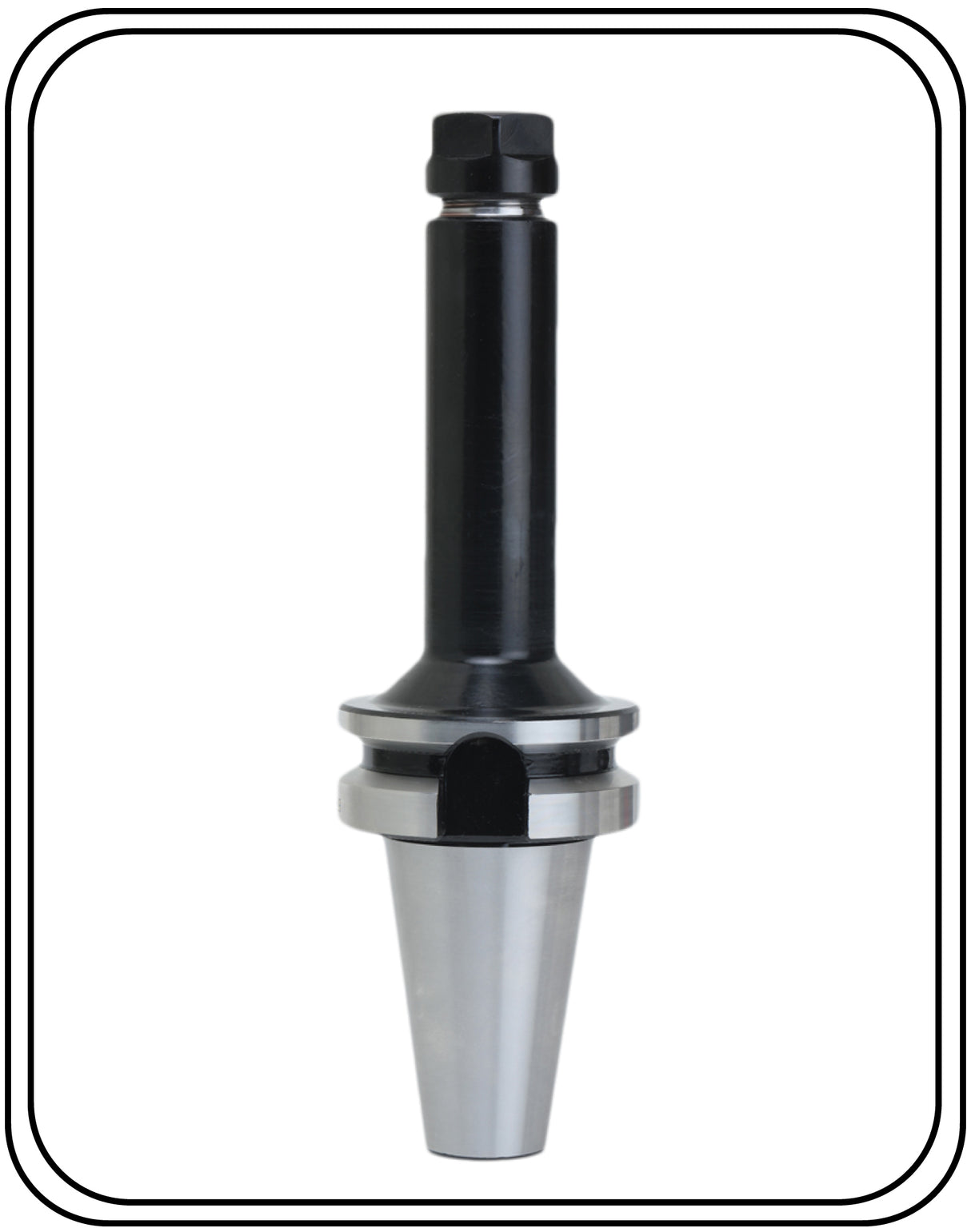

BT40ER20A-collet chuck 70L,100L,150L

₹ 1,505.00
SKU: JBRS0396

Size

BT40 ER20A-70L BT40 ER20A-100L BT40 ER20A-150L

BT40ER20A-collet chuck 70L,100L,150L

Brand - Mars-Tech
₹ 1,505.00
SKU: JBRS0396

Size

BT40 ER20A-70L BT40 ER20A-100L BT40 ER20A-150L
NONE LEFT IN STOCK

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

BT40 Tool Holder accepts all ER20 collets

ER20 Collets range from 1 mm to 14 mm
Thread inside internal stop screw
Made from alloy steel hardened to 54 – 56rc
Balanced to G6.3 at 12,000 rpms
Concentricity is less than .005 micron upto 100 Length and 0.012 upto 200 Length
All critical tool holder surfaces precision ground
Coolant through capability
Gage length is 70mm,100MM,150MM,200MM
Rear thread for pull stud is M16 X 2.0

All holders have capability to become through coolant by simply removing screw in the center by allen key

Products are usually delivered in 3-7 days depending upon your location.

0 have this item in their cart.

Sign up for restock notifications!

Notify Me when this Product get back in Stock

Related Products

ER20 Collet Ultra high precision 0.005 AAA quality
Mars-Tech ER20 Collet Ultra high prec... from ₹ 578.00
The standard ER collet is the most widely used clamping system in the world.Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding.  Unless specified differently all of our ER collets feature runout of 0.010 micron or less. ,ER collet sizes start at ER8 through ER50. ER20 series collets have a capacity of 1mm-14mm. Each ER20 collet has a range of (1 mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.9mm). For example, ER20-3mm can grab a round shank from 3mm diameter to 2.1mm diameter.
ER20M SPANNER
Mars-Tech ER20M SPANNER TYPE pack of 1 ₹ 288.00
ER20M Spanner for ER20 miniature type nut , tighten it and loosen it
ER 20 COLLET
Mars-Tech ER 20 COLLET DIN6499B AA 0.... from ₹ 229.00 ₹ 380.00
The standard ER collet is the most widely used clamping system in the world.Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding.  Unless specified differently all of our ER collets feature runout of 0.010 micron or less. ,ER collet sizes start at ER8 through ER50. ER20 series collets have a capacity of 1mm-14mm. Each ER20 collet has a range of (1 mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.9mm). For example, ER20-3mm can grab a round shank from 3mm diameter to 2.1mm diameter.
MARS-TECH ER NUT ER20 A/M TYPE
Mars-Tech MARS-TECH ER NUT ER20 A/M T... ₹ 210.00
Both types hold all ER20 collets from 1 mm to 14 mmMade from alloy steel hardened to 54 – 56rcPrecision ground ID thread and taperER20A Has an id thread of – M25*1.5PER20A Outside diameter is 34 MMNormal key to tighteninginternal cam removes collet when unscrewedMARSTECH CODE IS ER20A HEX TYPE NUT ER20M Has an id thread of 24mm X 1.0 pitchER20M Outside diameter is 1.102 inches (28mm)Outside has castle notches for tighteningER20M-Wrench works on this collet nutMARSTECH CODE IS ER20M TYPE NUT
