BT40ER32 UM collet chuck-70L,100L,120L,150L,200L

₹ 1,202.00
SKU: JBRS0403

Size

BT40ER32-70L BT40ER32-100L BT40ER32-120L BT40ER32-150L BT40ER32-200L

BT40ER32 UM collet chuck-70L,100L,120L,150L,200L

Brand - Mars-Tech
₹ 1,202.00
SKU: JBRS0403

Size

BT40ER32-70L BT40ER32-100L BT40ER32-120L BT40ER32-150L BT40ER32-200L
0 LEFT IN STOCK

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

BT40 Tool Holder accepts all ER32 collets

ER32 Collets range from 1 mm to 20 mm
Thread inside internal stop screw
Made from alloy steel hardened to 54 – 56rc
Balanced to G6.3 at 12,000 rpms
Concentricity is less than .005 micron upto 100 Length and 0.012 upto 200 Length
All critical tool holder surfaces precision ground
Coolant through capability

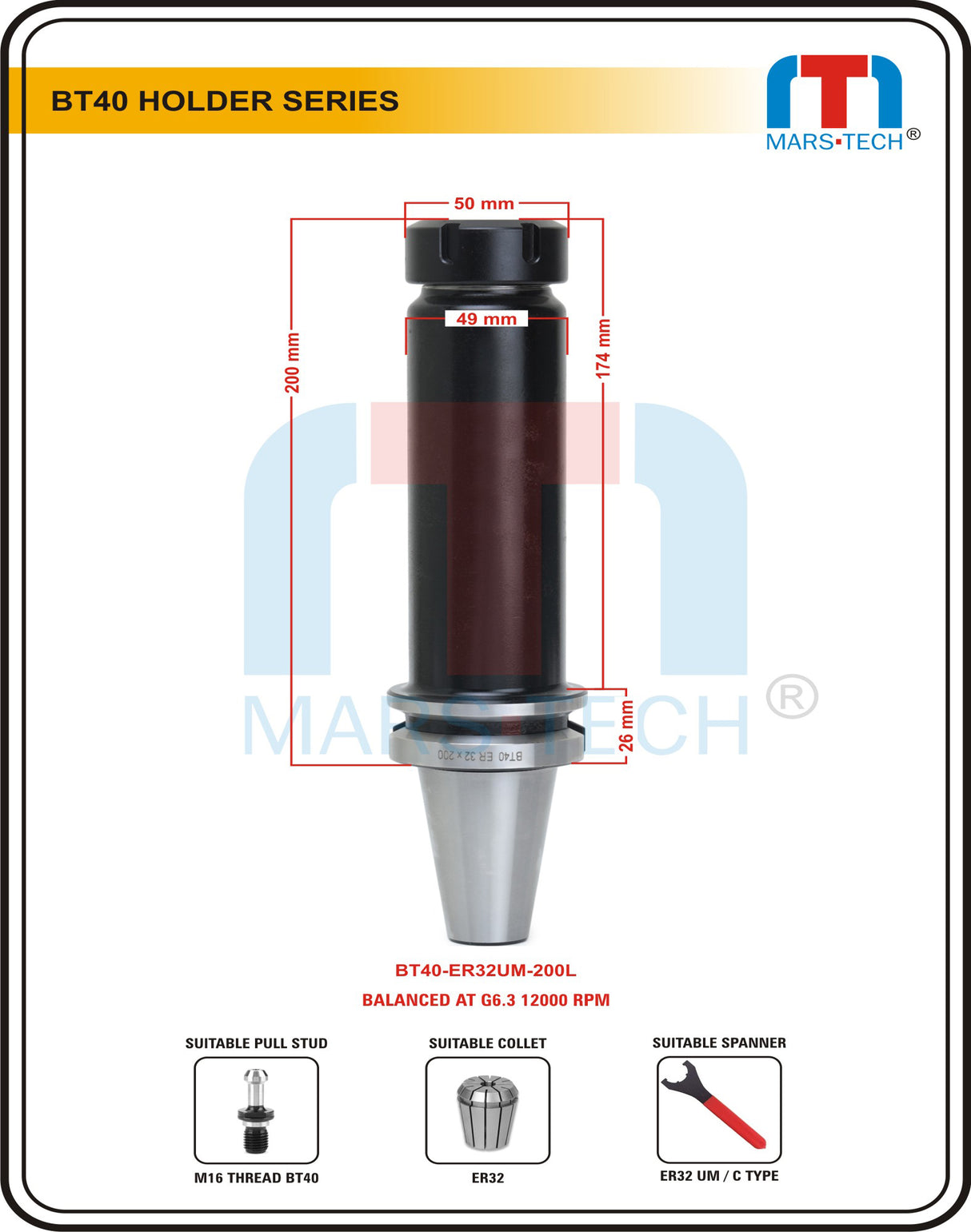

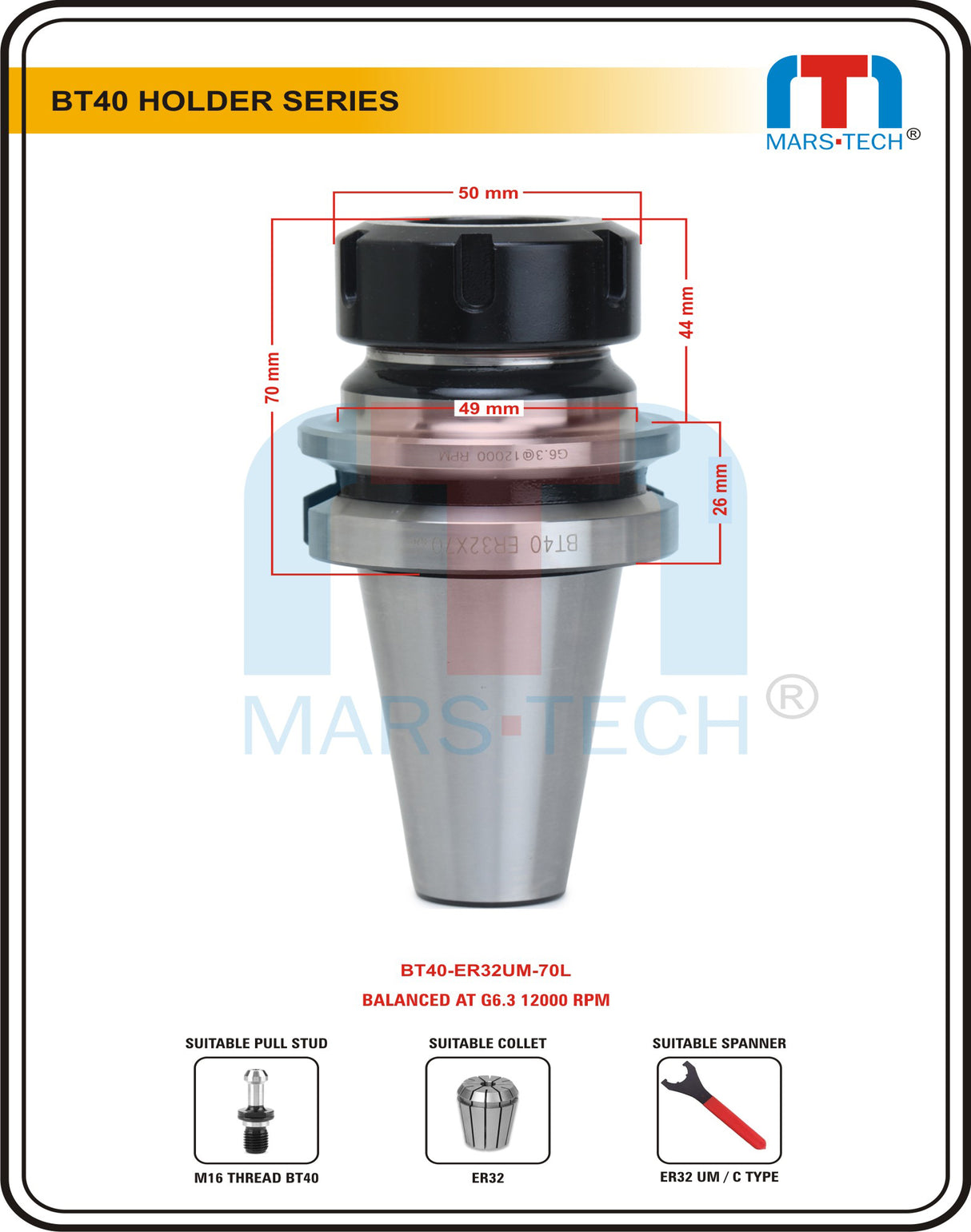

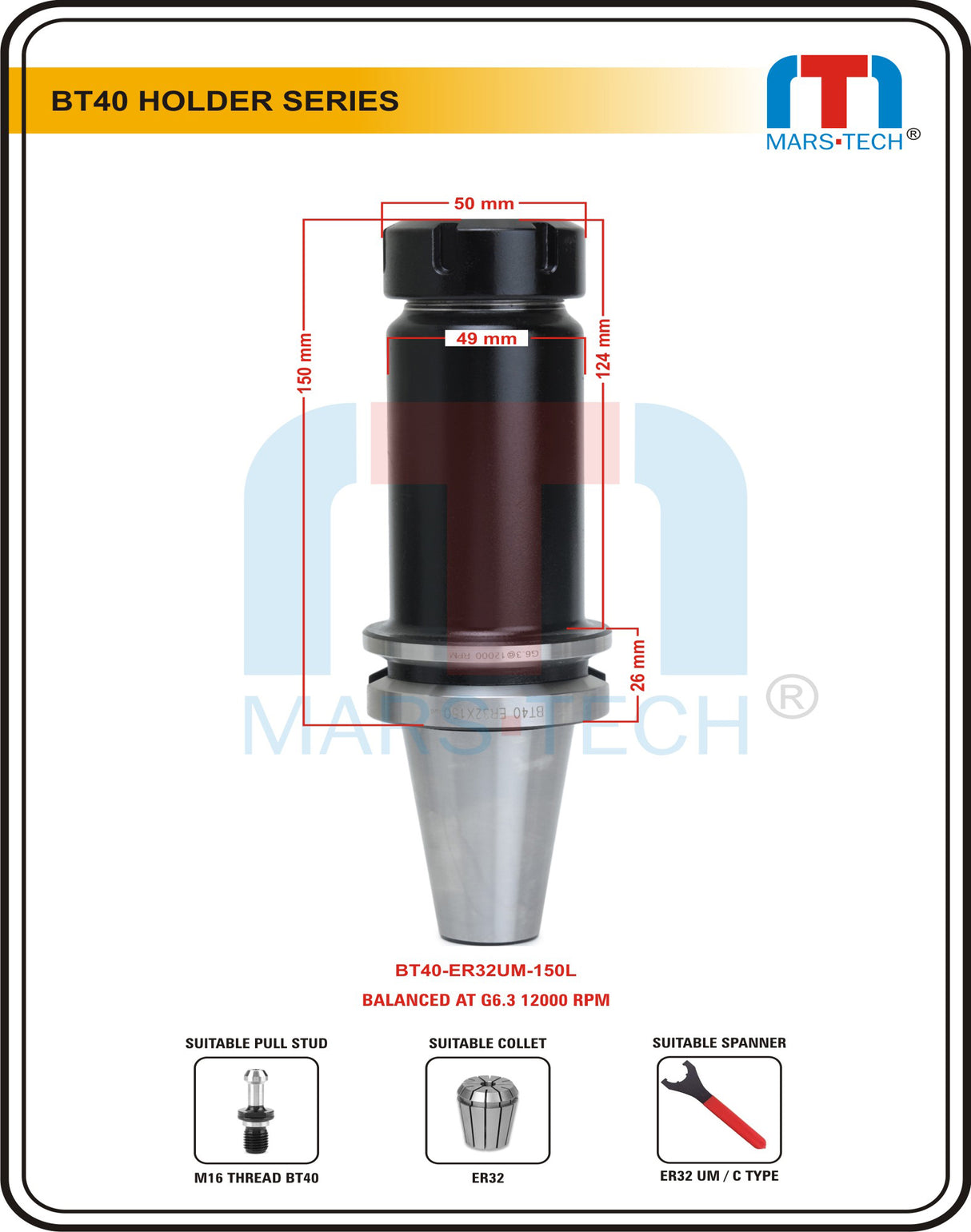

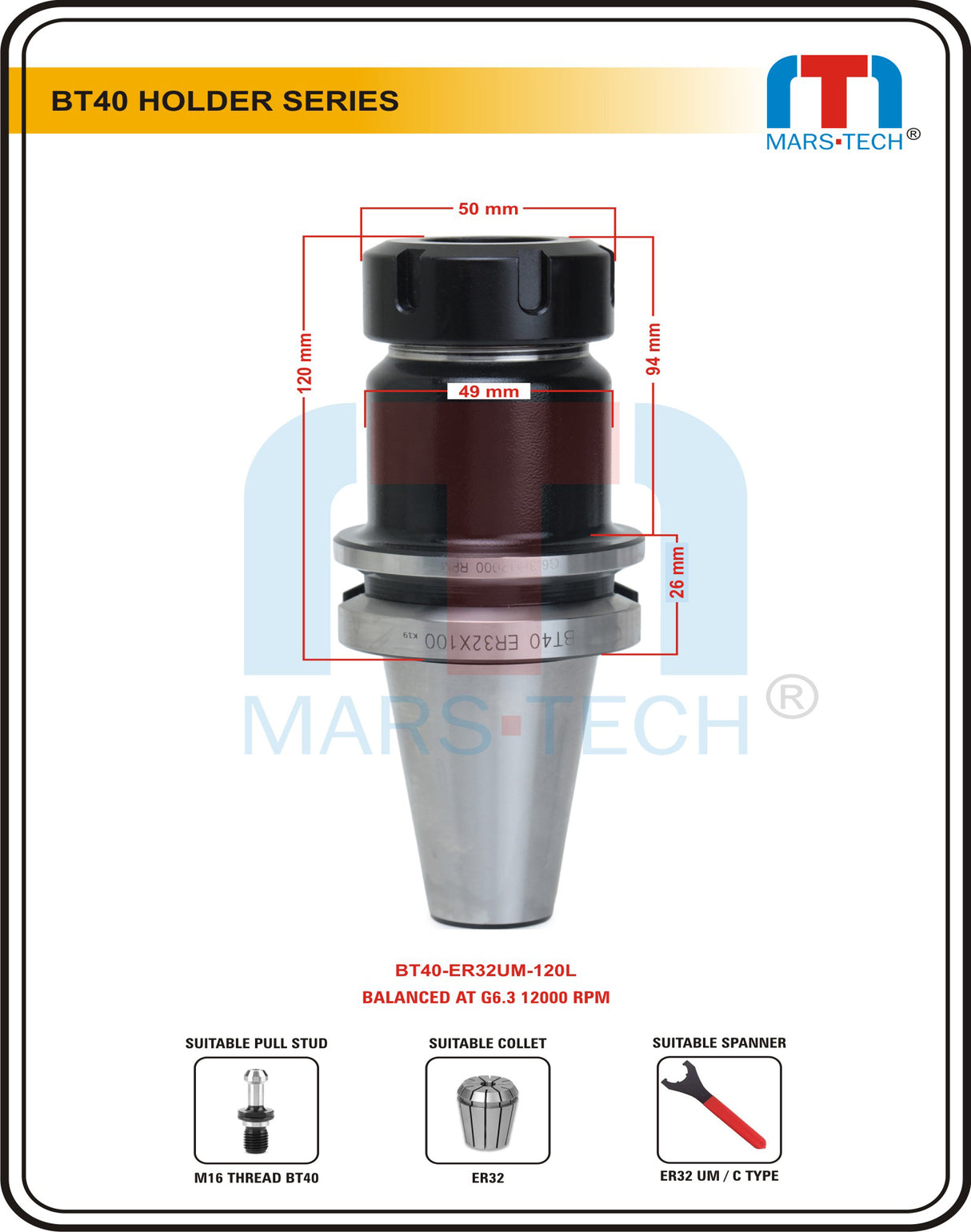

Gage length is 70mm,100MM,150MM,200MM
Rear thread for pull stud is M16 X 2.0

All holders have capability to become through coolant by simply removing screw in the center by allen key

Products are usually delivered in 3-7 days depending upon your location.

0 have this item in their cart.
Add to cart

Add to cart

Related Products

ER 32 COLLET
Mars-Tech ER 32 COLLET DIN6499B AA 0.... from ₹ 313.00
The standard ER collet is the most widely used clamping system in the world.Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding.  Unless specified differently all of our ER collets feature runout of 0.010 micron or less. ,ER collet sizes start at ER8 through ER50. ER32 series collets have a capacity of 1mm-20mm. Each ER32 collet has a range of (1 mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.9mm). For example, ER32-6mm can grab a round shank from 6mm diameter to 5.1mm diameter.
ER 32 COLLET SET 1 MM TO 20 MM High Quality Precision Collet. SET OF 20 nos.
Mars-Tech ER 32 COLLET SET 1 MM TO 20... ₹ 7,015.00
THIS SET HAS 20 COLLETS 1 MM TO 20 MM EACH 1 NOS. PACKED IN PLASTIC BOX  The standard ER collet is the most widely used clamping system in the world.Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding.  Unless specified differently all of our ER collets feature runout of 0.010 micron or less. ,ER collet sizes start at ER8 through ER50. ER32 series collets have a capacity of 1mm-20mm. Each ER32 collet has a range of (1 mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.9mm). For example, ER32-6mm can grab a round shank from 6mm diameter to 5.1mm diameter.
Er32 Spanner Um Type
Mars-Tech Er32 Spanner Um Type High Q... ₹ 382.00
ER32 UM TYPE Spanner Wrench is made from high quality alloy steel ,Thick material allows high torque without bending,4 point contact ensures no distortion of collet nut while tightening,ER32 Wrench works on all of our UM Type and UM type collet chucks that take ER32 collets
MARS-TECH ER32 UM NUT
Mars-Tech MARS-TECH ER32 UM NUT pack ... from ₹ 253.00
Holds all ER32 collets from 1 mm to 20 mmMade from alloy steel hardened to 54 – 56rcPrecision ground ID thread and taperHas an id thread of – M40*1.5POutside diameter is 50 MMSUITABLE SPANNER IS ER32UM AND ER32 C TYPE key to tighteninginternal cam removes collet when unscrewedMARSTECH CODE IS ER32UM TYPE NUT
