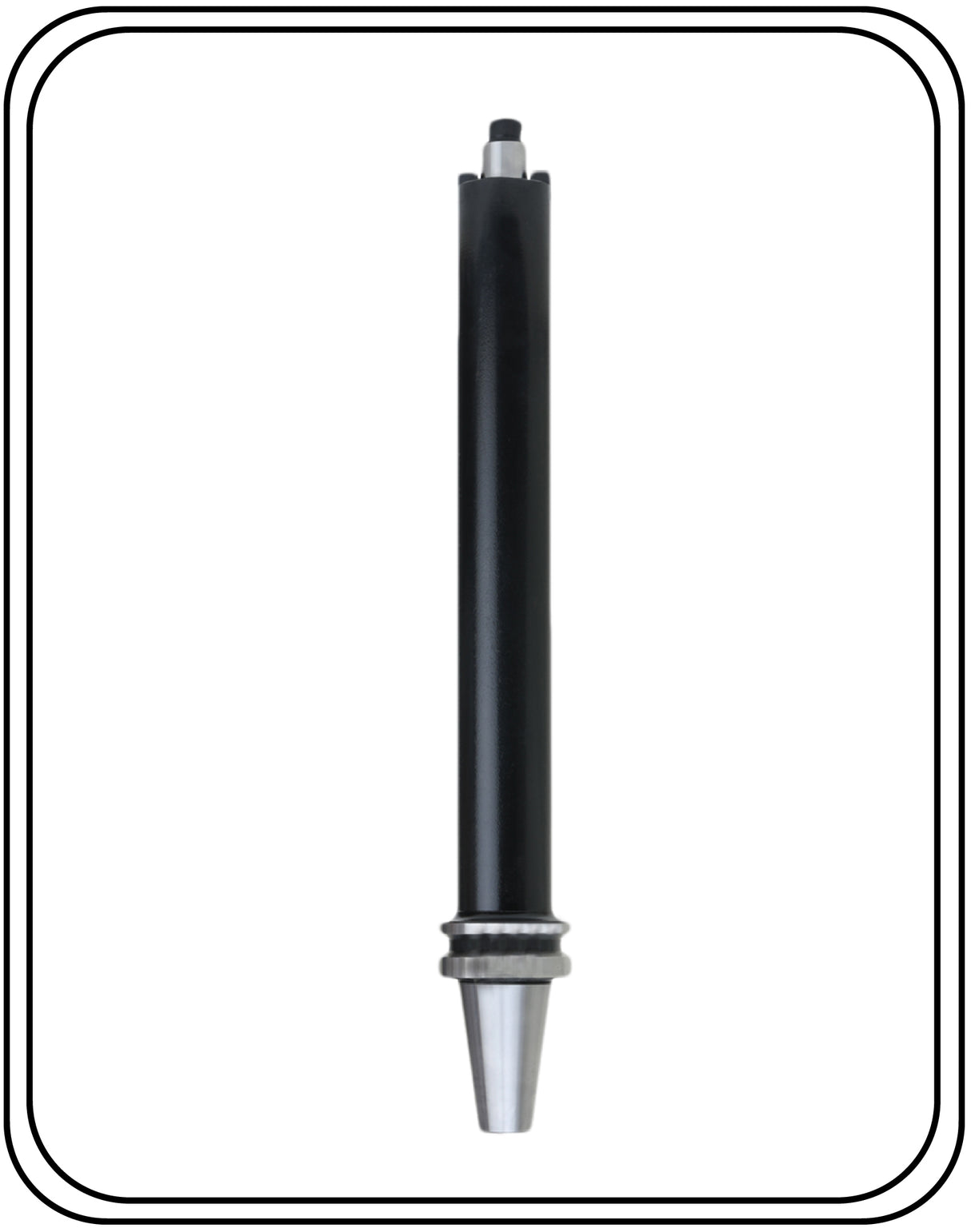

Thumbnail for BT40 FMB FMC FMA Face milling holder

BT40 fma16 mm face milling holder arbour

Brand - Mars-Tech

₹ 1,505.00

SKU: JBRS0412

Size

FMA16-60L FMA16-100L FMA16-150L FMA16-200L FMA16-250L FMA16-300L

0 LEFT IN STOCK

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

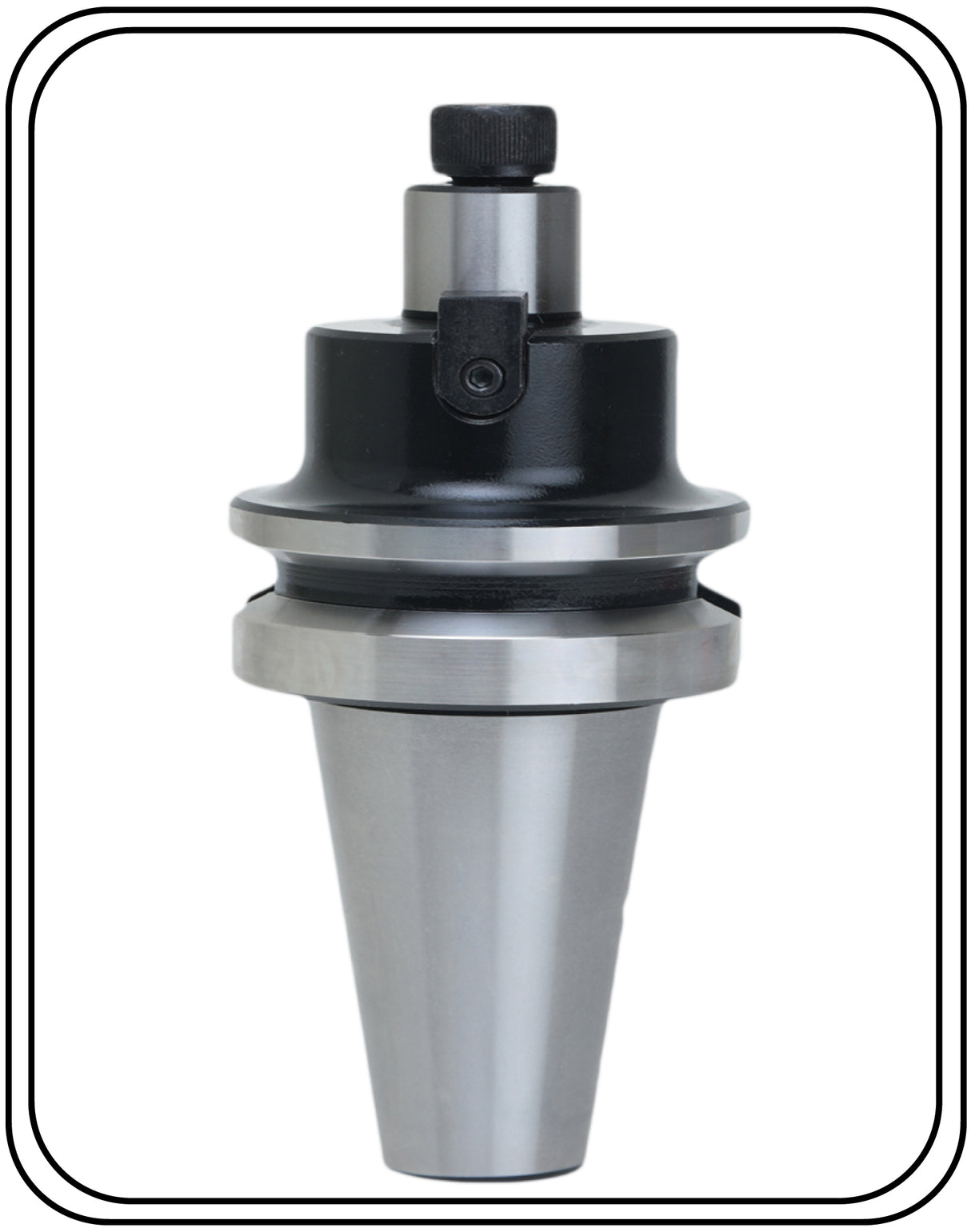

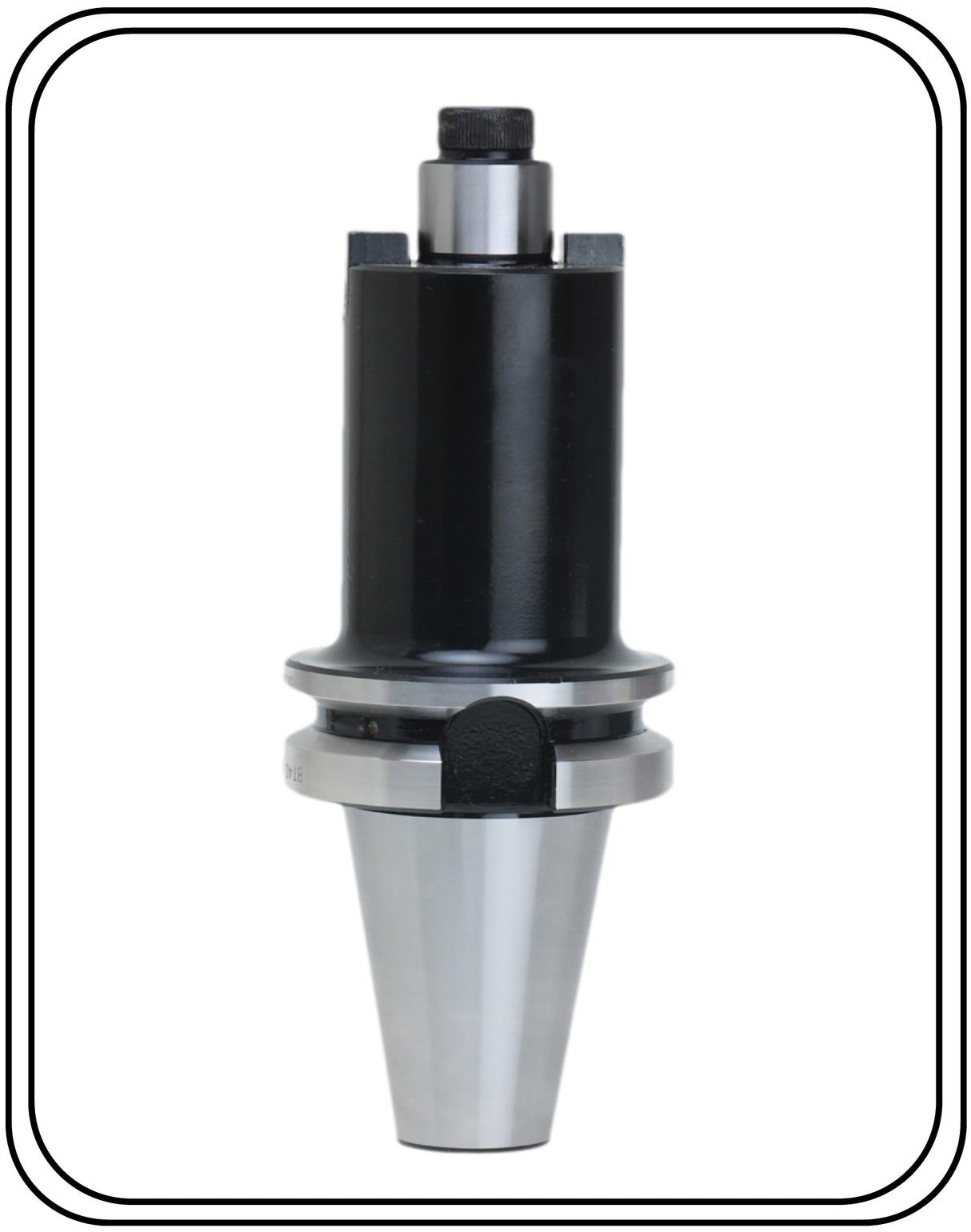

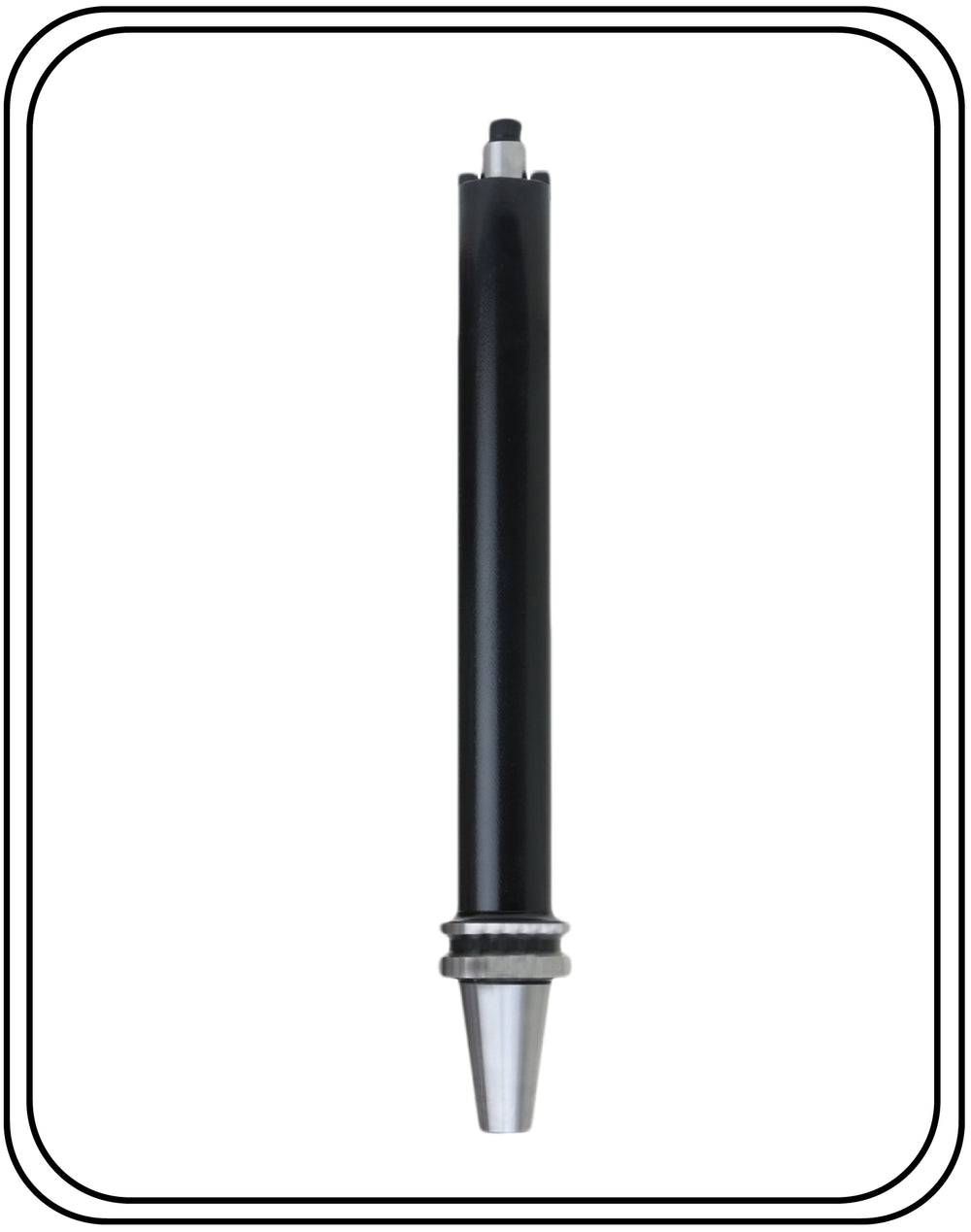

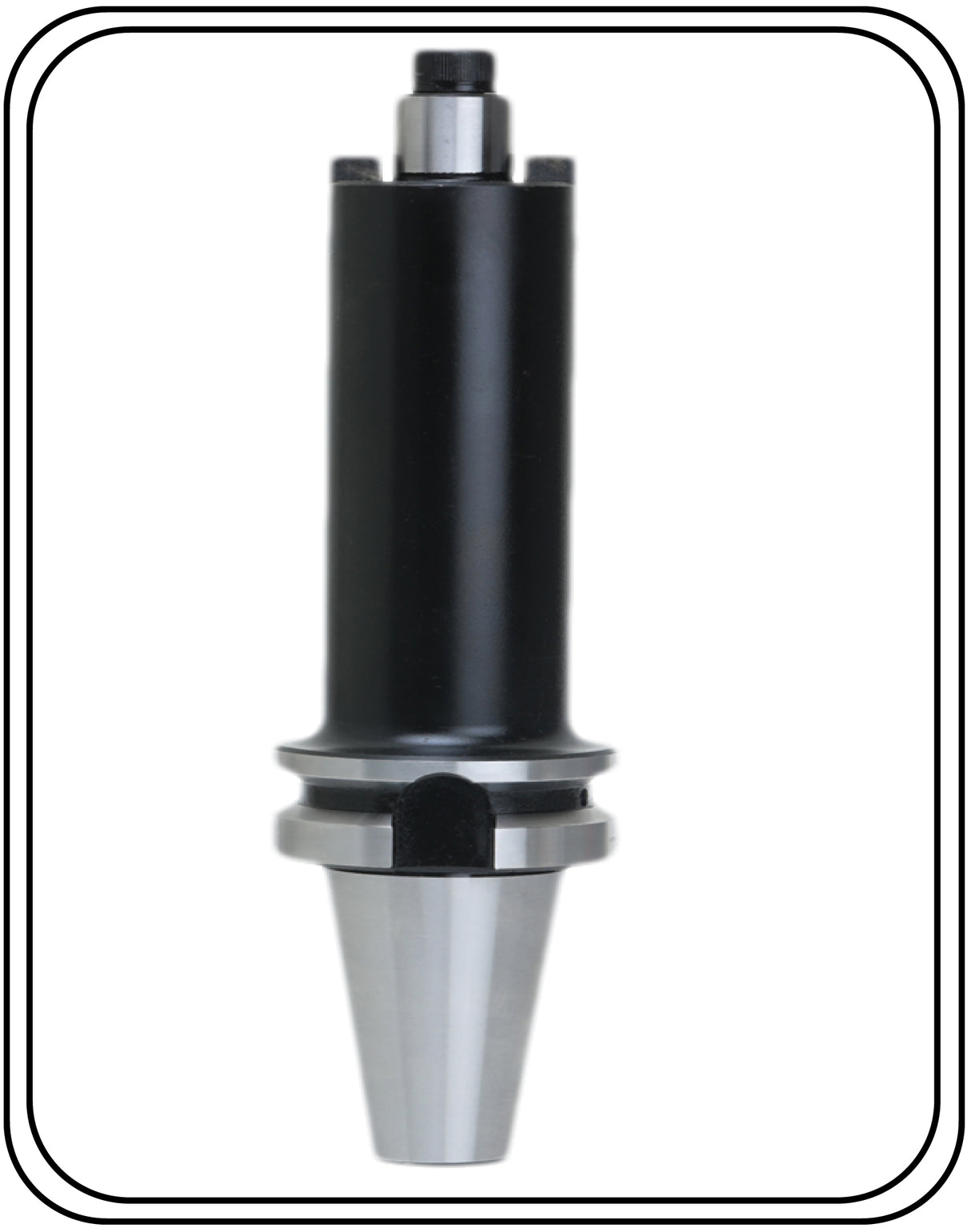

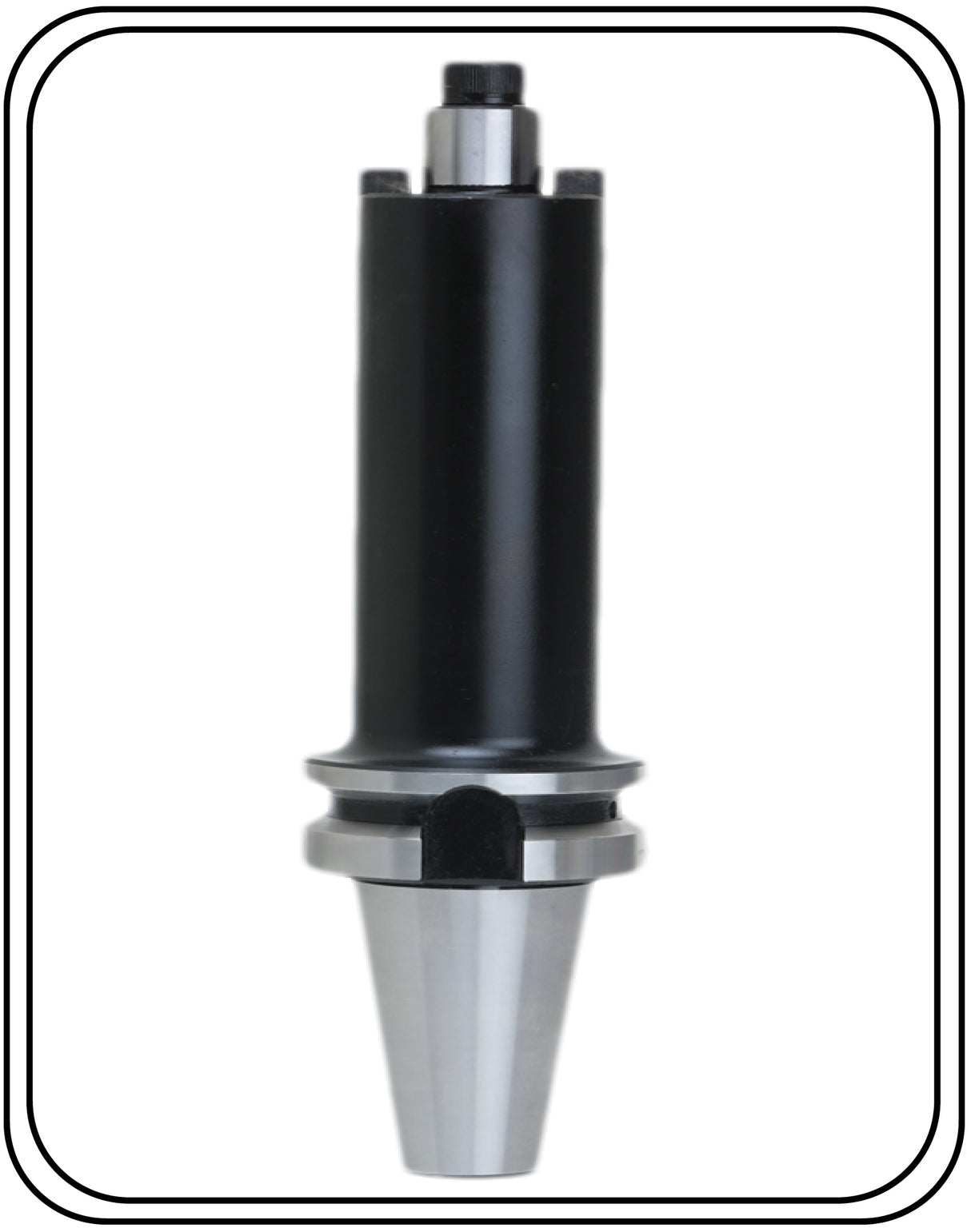

BT40 fma16 mm face milling holder arbour

BT40 face mill holder also called face mill arbour and face mill adaptor

BT40 FMA16 Is mainly used to hold Modular Indexable Cutter with an Internal hole of 16 mm any cutter can come with a 16 mm Internal thread but normally 40 mm Cutters are common in this range.

Made from alloy steel hardened to 54 – 56rc
Balanced to G6.3 at 12,000 rpms
Concentricity is less than .005 micron upto 100 Length and 0.012 upto 200 Length
All critical tool holder surfaces precision ground

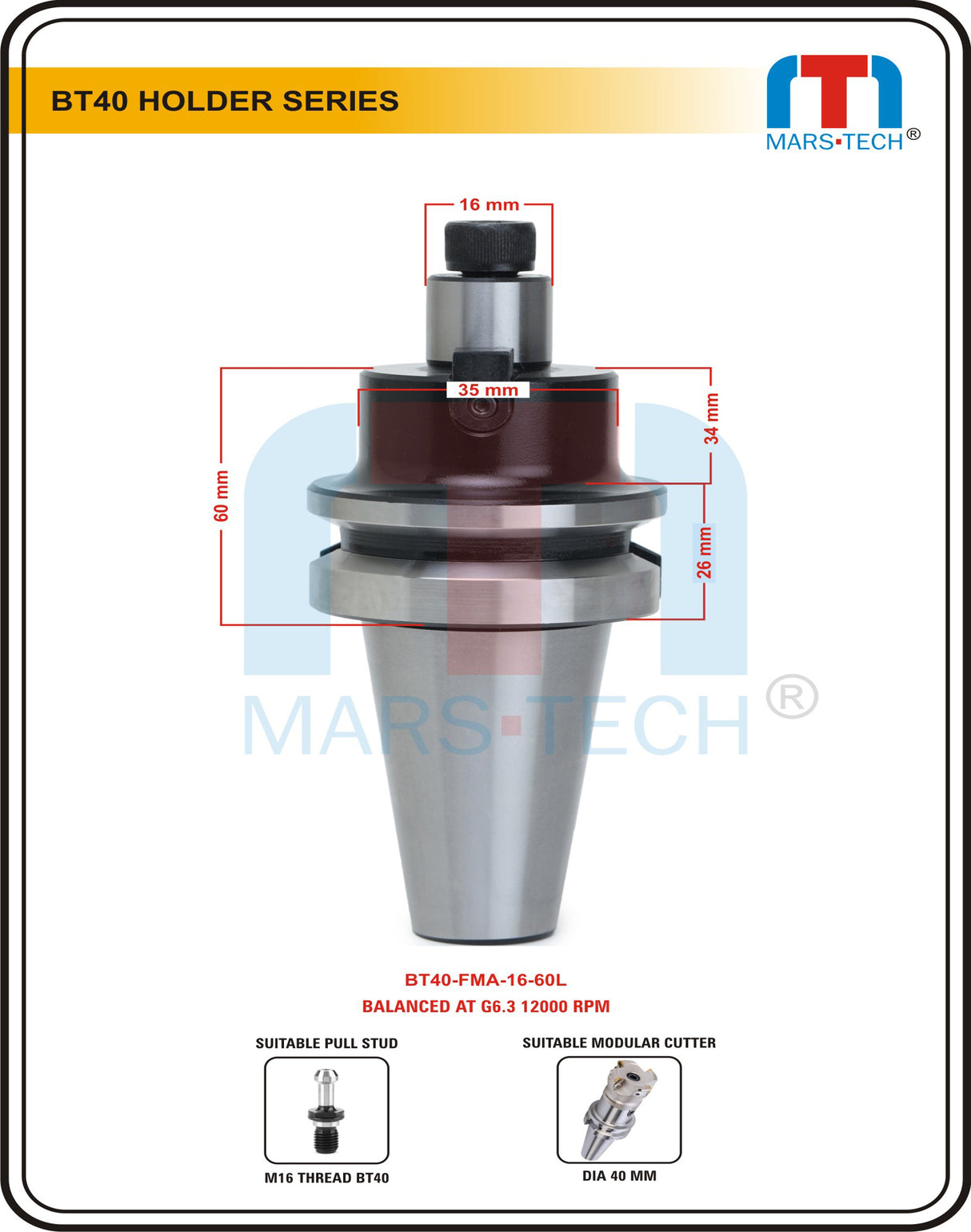

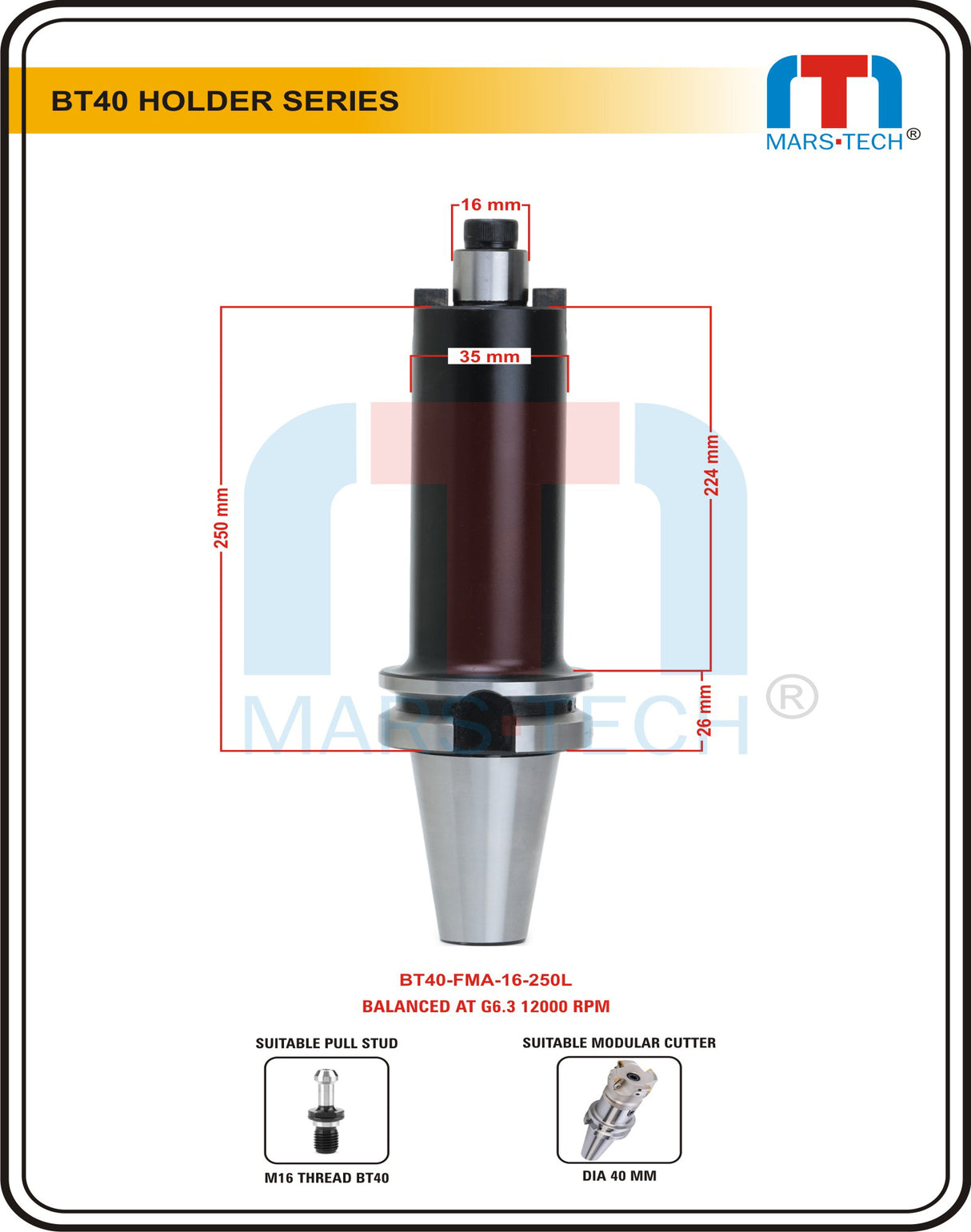

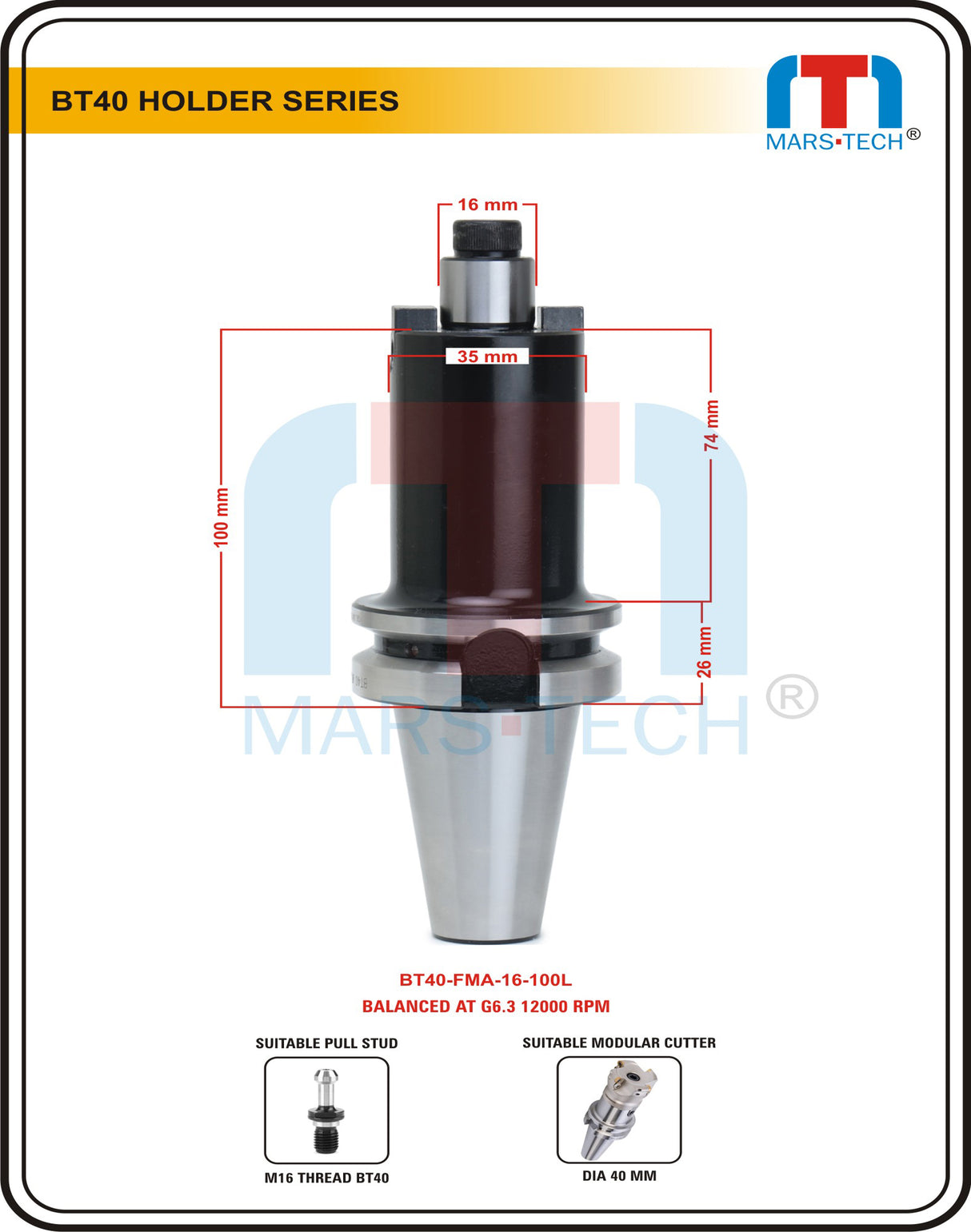

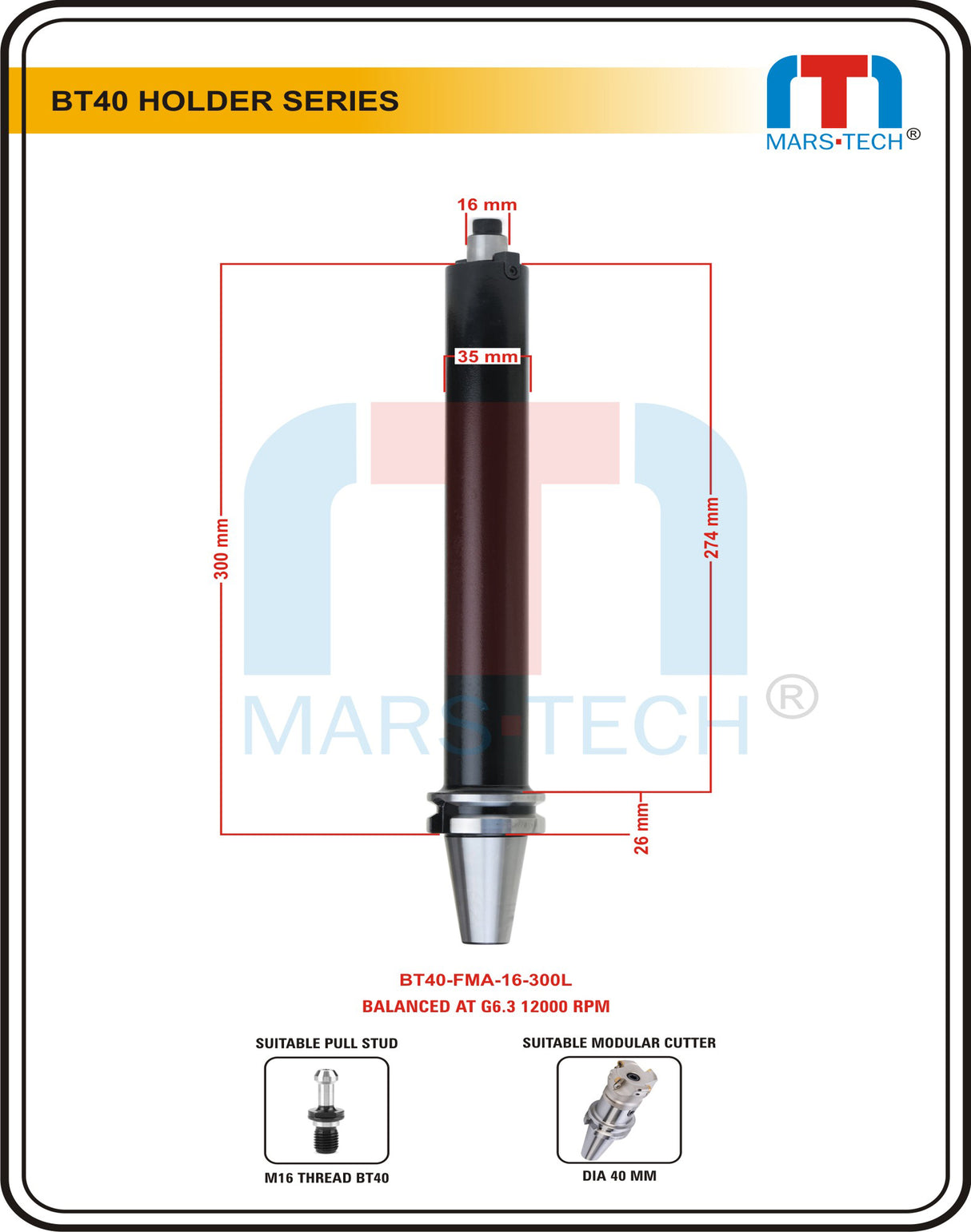

Gage length is 70mm,100MM,150MM,200MM,250MM,300MM
The rear thread for the pull stud is M16 X 2.0

Products are usually delivered in 3-7 days depending upon your location.

0 have this item in their cart.
