DASQUA High Accuracy MINI Dial Indicator lug back 0-3 mm With Calibration Certificate

₹ 2,400.00
SKU: JBRS1432

DASQUA High Accuracy MINI Dial Indicator lug back 0-3 mm With Calibration Certificate

Brand - Dasqua
₹ 2,400.00
SKU: JBRS1432
0 LEFT IN STOCK

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

Specifications

Product Name: Dial Indicator
Item Number: 5121-1201
Measuring Range:  0~3 mm
Graduation:  ±0.01 mm / 0.0005’’
Accuracy: 0.017 mm / 0.0005’’
Warranty: Two Years

Features

• Used to measure surface flatness as well as axial runout and also used to check tool set up and squareness
• Limit indicator clips included
• Strictly made in accordance with DIN878

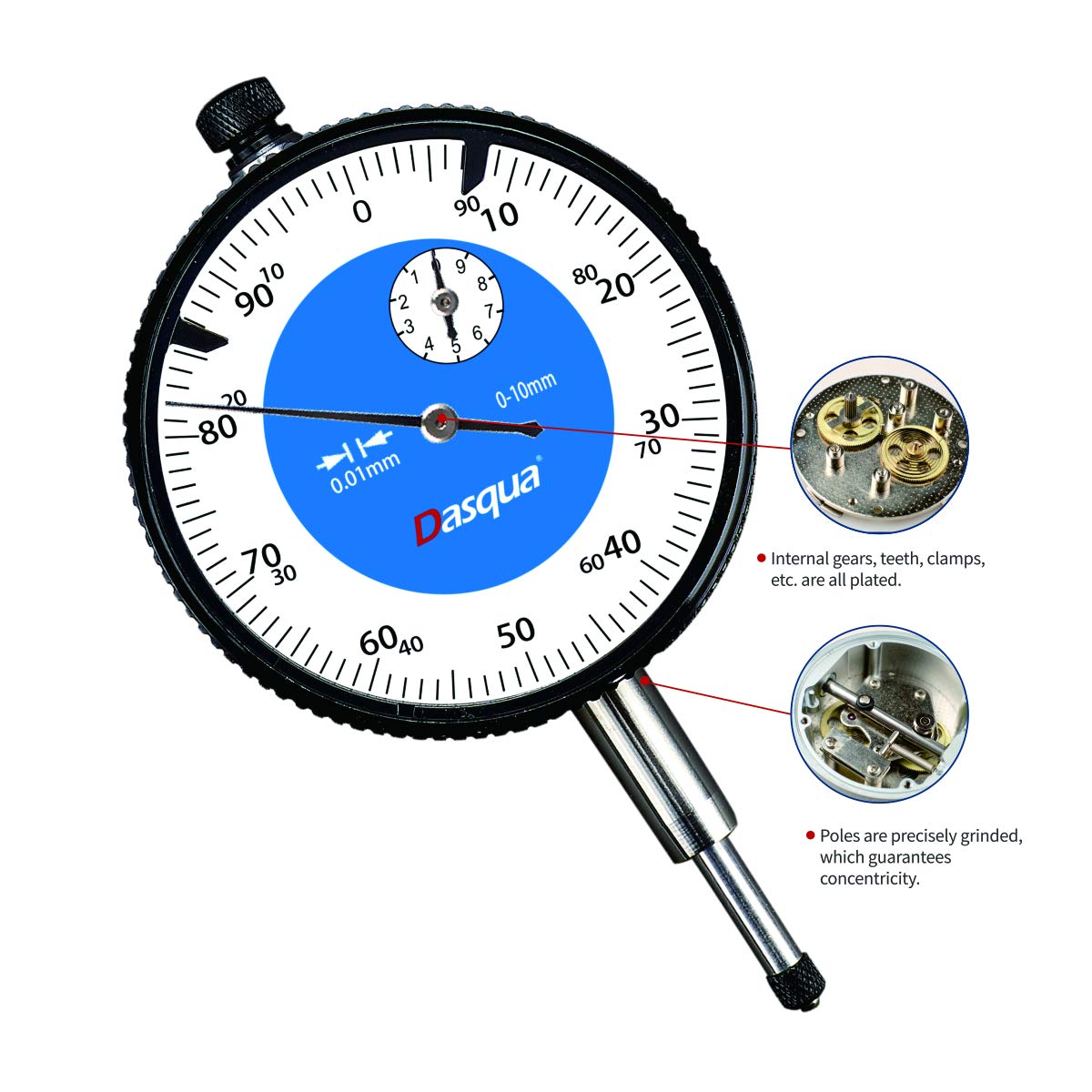

• Jeweled bearings providing the lowest possible bearing friction
• With narrowed range and higher accuracy

Application

Dial indicators are also called dial gauges, dial calipers, and probe indicators. These precision measuring tools are used to accurately measure small linear distances and object sizes. The dial magnifies the measurement so that it can more easily be read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Dial and dial test indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation.

Advantage Of DASQUA

• High quality material and precision machining process ensure product quality;
• A traceable QC system is worthy of your trust;
• Efficient warehouse and logistics management ensure your delivery time;
• A two-year warranty makes you without the worries behind;

Tips

Dial readings with three digits, such as 0-10-0, signify that the indicator has a balanced dial. Dial readings with two digits, such as 0-100, indicate that the dial has a continuous dial. Balanced dials are used to read the difference from a specific surface reference point. Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials. Optional features include jeweled bearings for high sensitivity and accuracy, a revolution counter to measure overall change, waterproof, dustproof, shockproof, a white or black face, and reverse reading for depth or bore gage measurement.

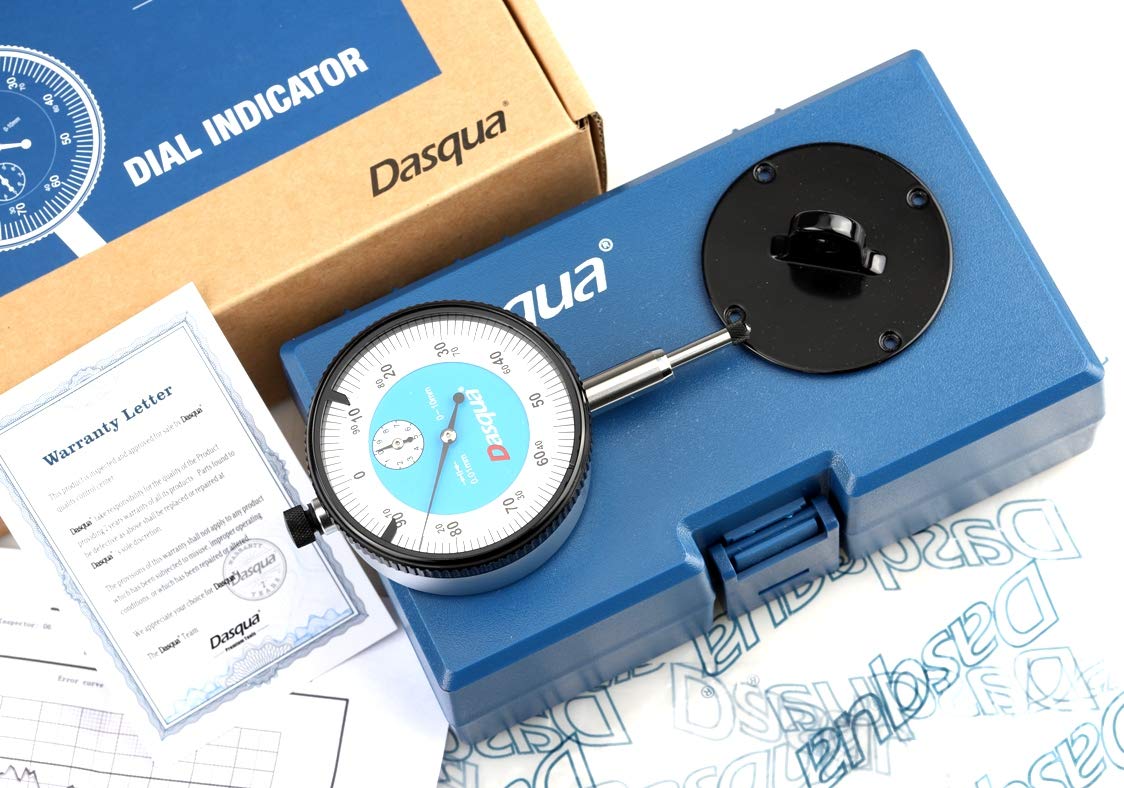

Package Content

1 x Dial Indicator
1 x Protective Case
1 x Warranty Letter

Products are usually delivered in 3-7 days depending upon your location.
