DASQUA High Precision Measuring Tools Ranged Dial Bore gage 18-35 mm
DASQUA High Precision Measuring Tools Ranged Dial Bore gage 18-35 mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description
Specifications
Product Name: Dial Bore Gauge
Item Number: 5511-1115
Measuring Range: 18~35 mm / 0.7’’~1.38’’
Graduation: ±0.01 mm / 0.0005’’
Depth: 150mm / 5.9’’
Warranty: Two Years
Features
• Used to measure close tolerance of holes, taper and roundness

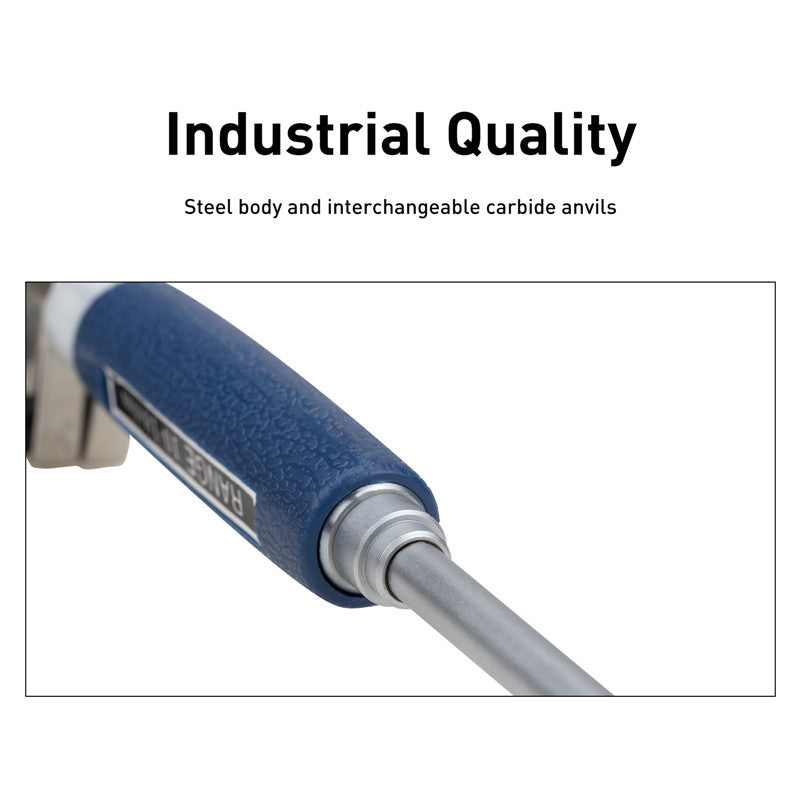

• Steel body and interchangeable carbide anvils

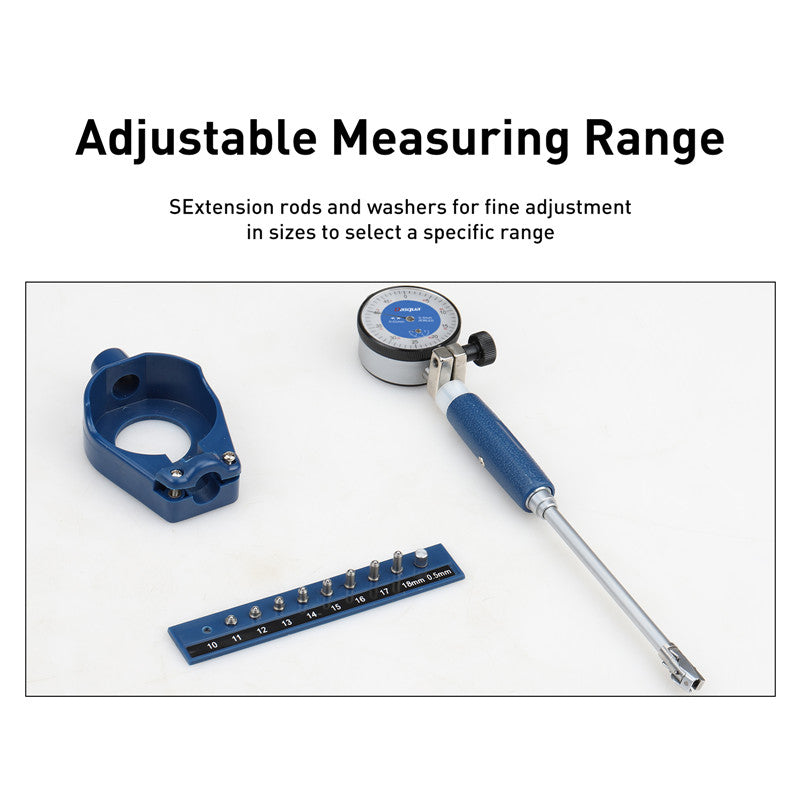

• Extension rods and washers for fine adjustment in sizes to select a specific range
• Dial indicator fully protected by a rugged cover
Application
Bore gauge sets are the most widely used measurement tools for inside measurement of cylindrical objects such as pipes and cylinders. Unlike transfer gauges (telescope gauge, small-hole gauge, beam gauge), the bore gauge does not require a second time measurement but a direct read when performing the measure, which ensured the accuracy. The bore gauge also goes deep enough by its long extension handle that bests the short reach problem of inside micrometers without compromising to the accuracy. Certainly, the three-point inside micrometer may fulfill all your needs and can be handled easily but it costs a lot more than bore gauges do.
Advantage Of DASQUA
• High quality material and precision machining process ensure product quality；
• A traceable QC system is worthy of your trust；
• Efficient warehouse and logistics management ensure your delivery time；
• A two-year warranty makes you without the worries behind；
Tips Of Assemble The Bore Gauge
Attach the indicator to the joint by inserting the indicator’s spindle into the joint;
Lock the indicator with the screw when the needle of the indicator turns about 1 revolution;
Remove the anvil locking nut and install wanted anvils, combination anvils or washers;
Install the knurled locking nut tightly.
Package Content

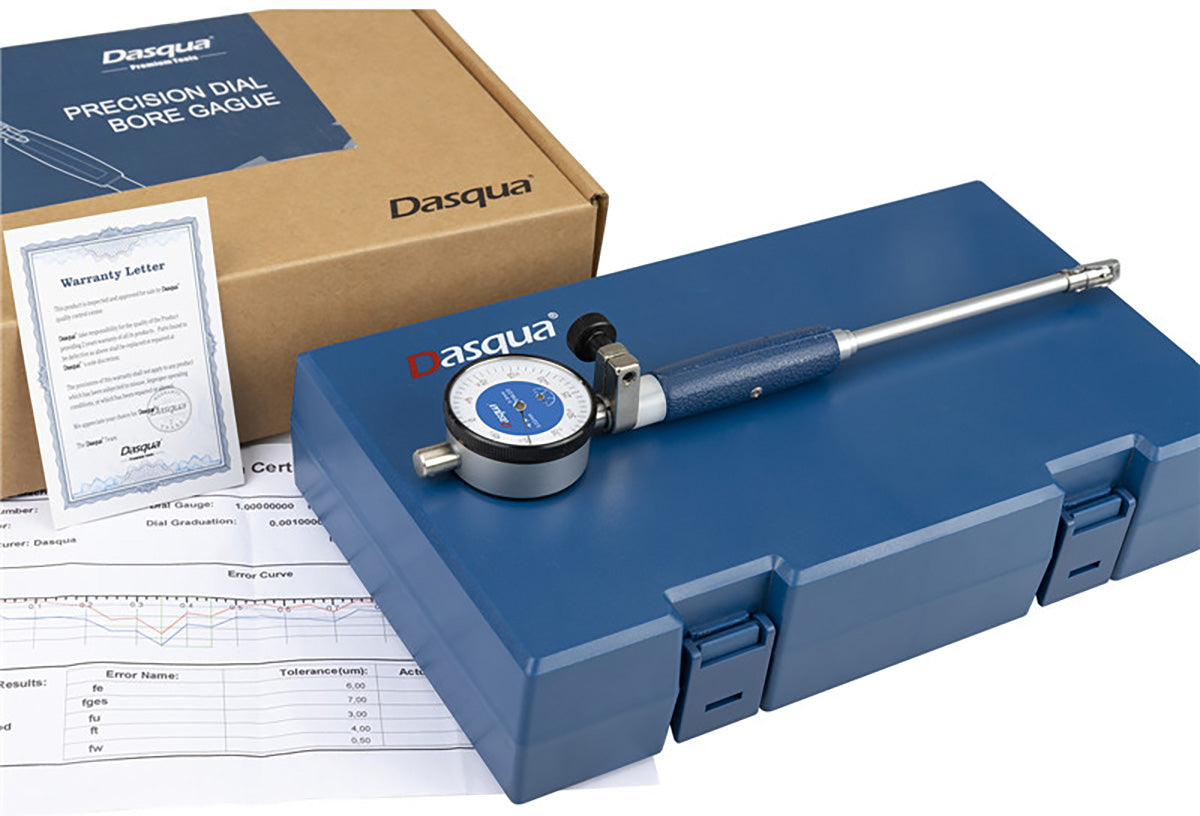

1 x Dial Bore Gauge
1 x Protective Case
1 x Warranty Letter
