Specifications

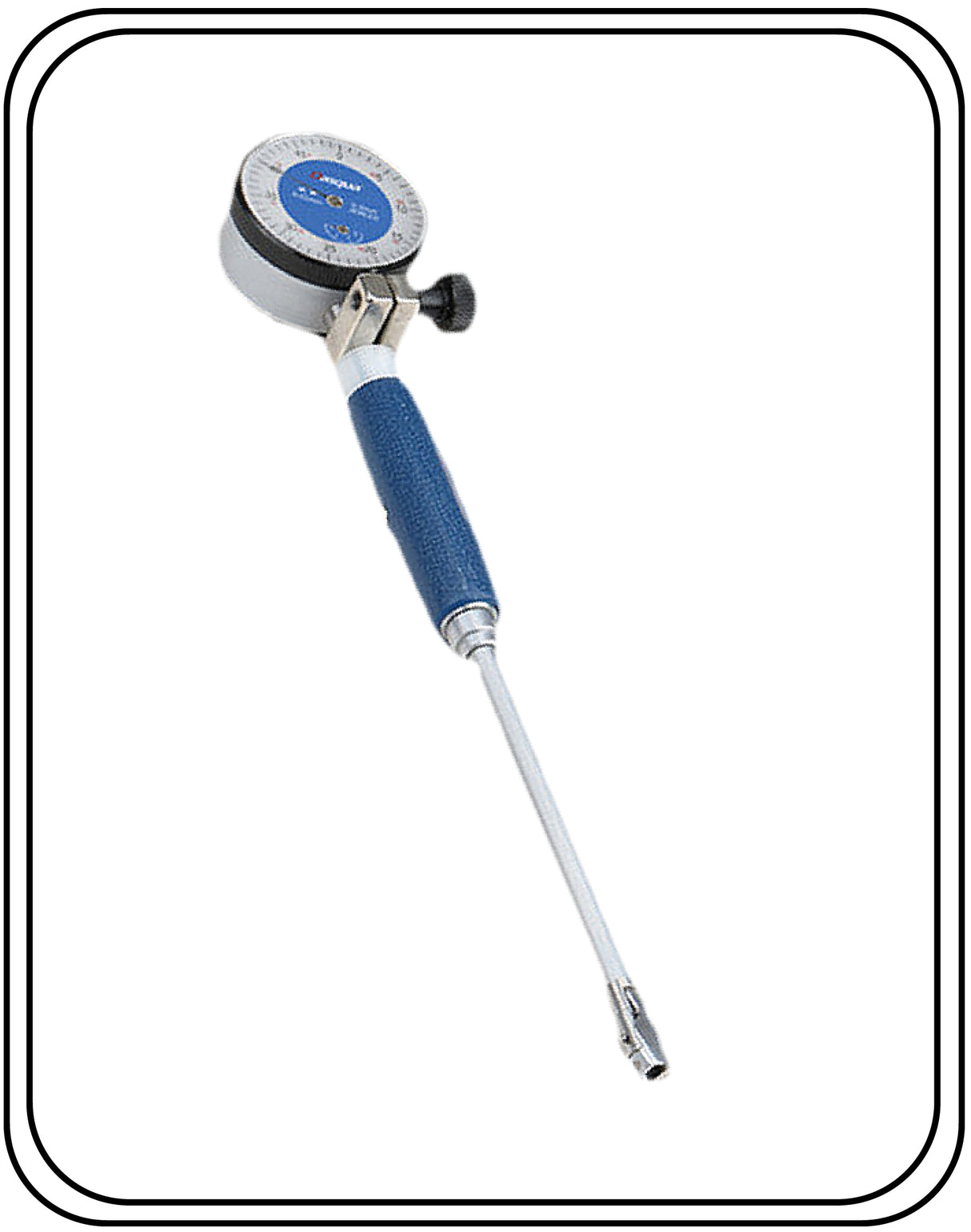

Product Name: Dial Bore Gauge
Item Number: 5511-1121
Measuring Range: 35~60 mm
Graduation: ±0.01 mm / 0.0005’’
Depth: 150mm / 5.9’’
Warranty: Two Years
Features
• Used to measure close tolerance of holes, taper and roundness

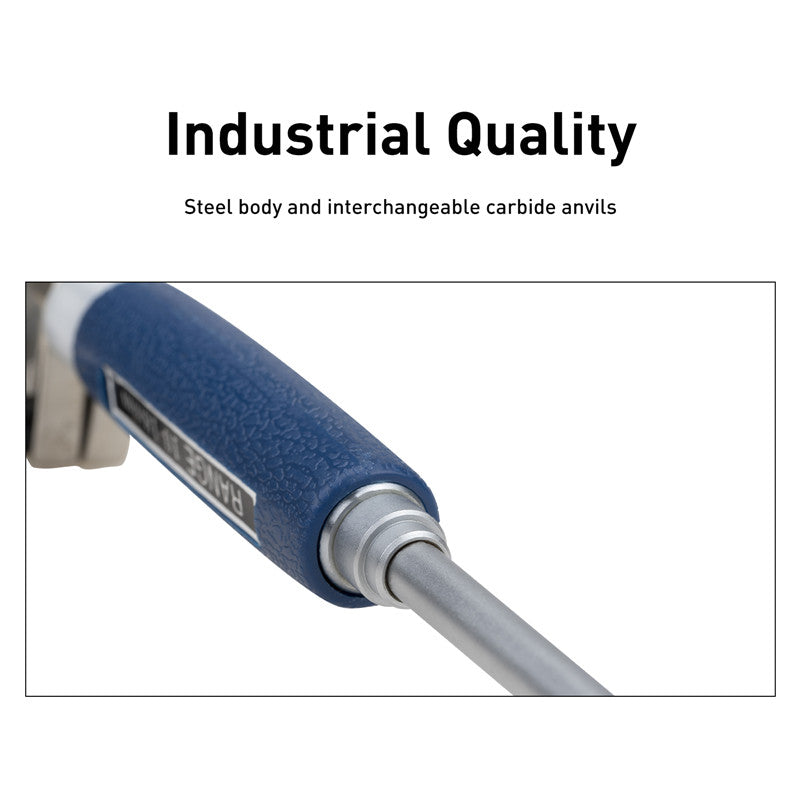

• Steel body and interchangeable carbide anvils

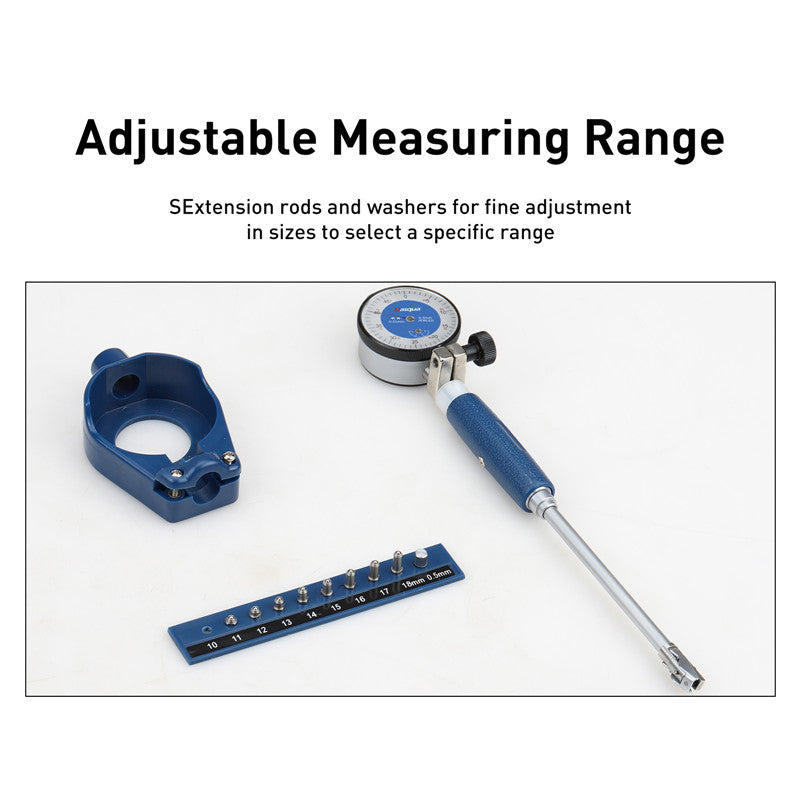

• Extension rods and washers for fine adjustment in sizes to select a specific range

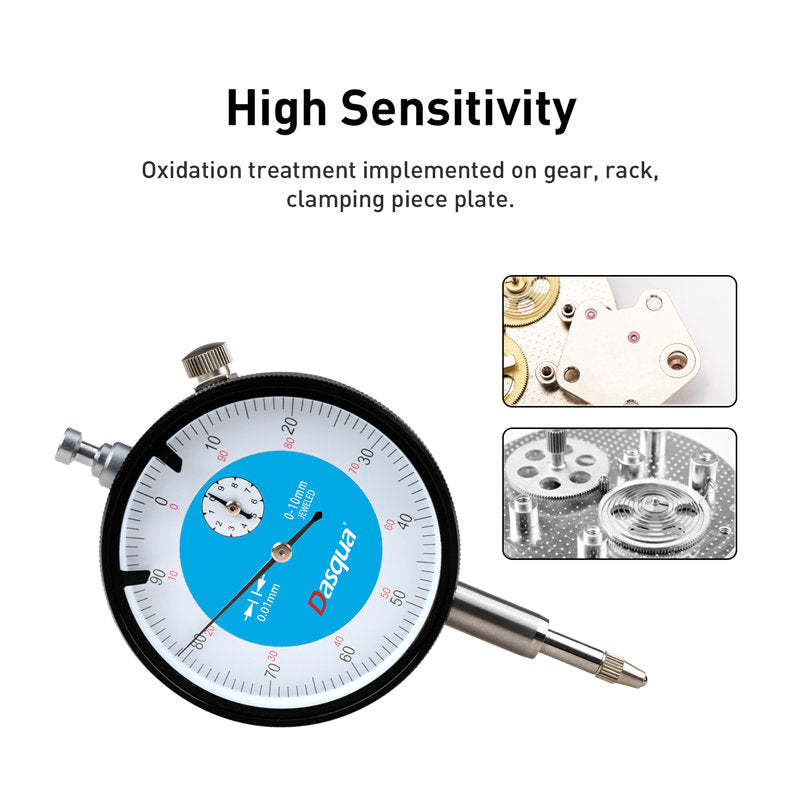

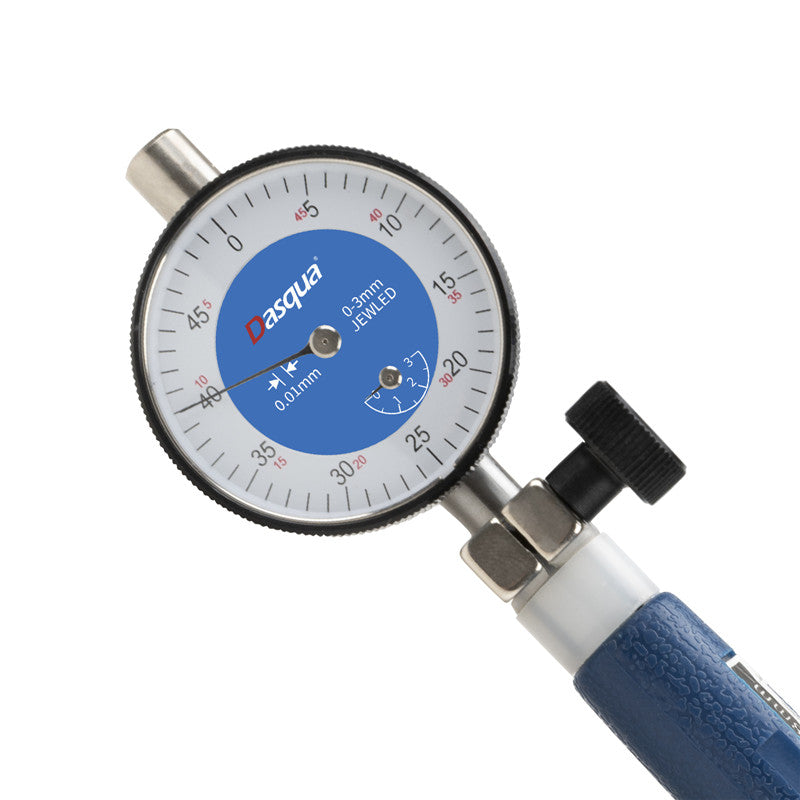

• Dial indicator fully protected by a rugged cover
Application
Bore gauge sets are the most widely used measurement tools for inside measurement of cylindrical objects such as pipes and cylinders. Unlike transfer gauges (telescope gauge, small-hole gauge, beam gauge), the bore gauge does not require a second time measurement but a direct read when performing the measure, which ensured the accuracy. The bore gauge also goes deep enough by its long extension handle that bests the short reach problem of inside micrometers without compromising to the accuracy. Certainly, the three-point inside micrometer may fulfill all your needs and can be handled easily but it costs a lot more than bore gauges do.
Advantage Of DASQUA
• High quality material and precision machining process ensure product quality；

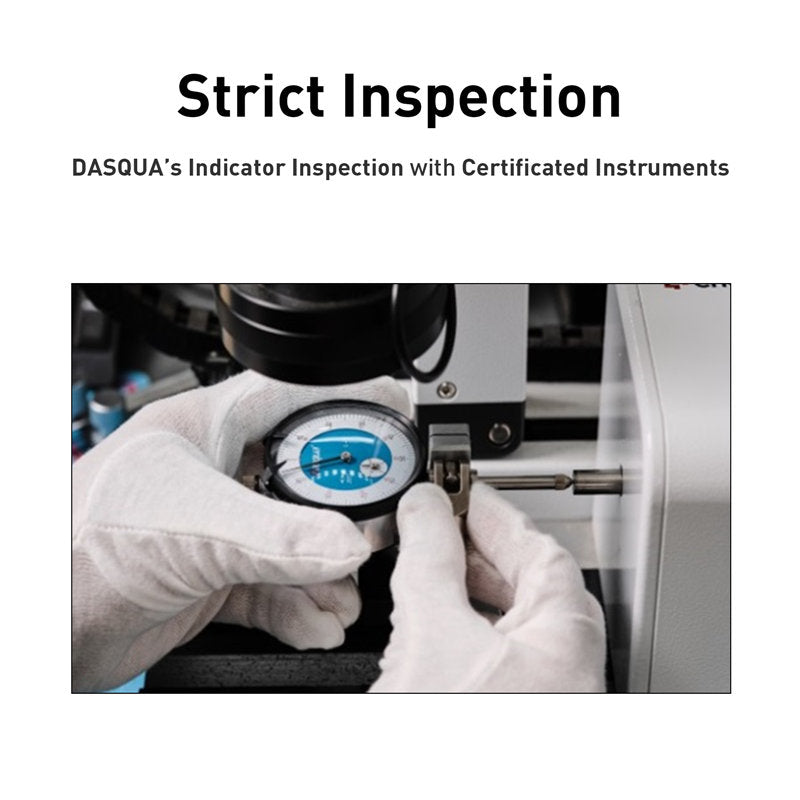

• A traceable QC system is worthy of your trust；
• Efficient warehouse and logistics management ensure your delivery time；
• A two-year warranty makes you without the worries behind；
Tips Of Assemble The Bore Gauge
Attach the indicator to the joint by inserting the indicator’s spindle into the joint;
Lock the indicator with the screw when the needle of the indicator turns about 1 revolution;
Remove the anvil locking nut and install wanted anvils, combination anvils or washers;
Install the knurled locking nut tightly.

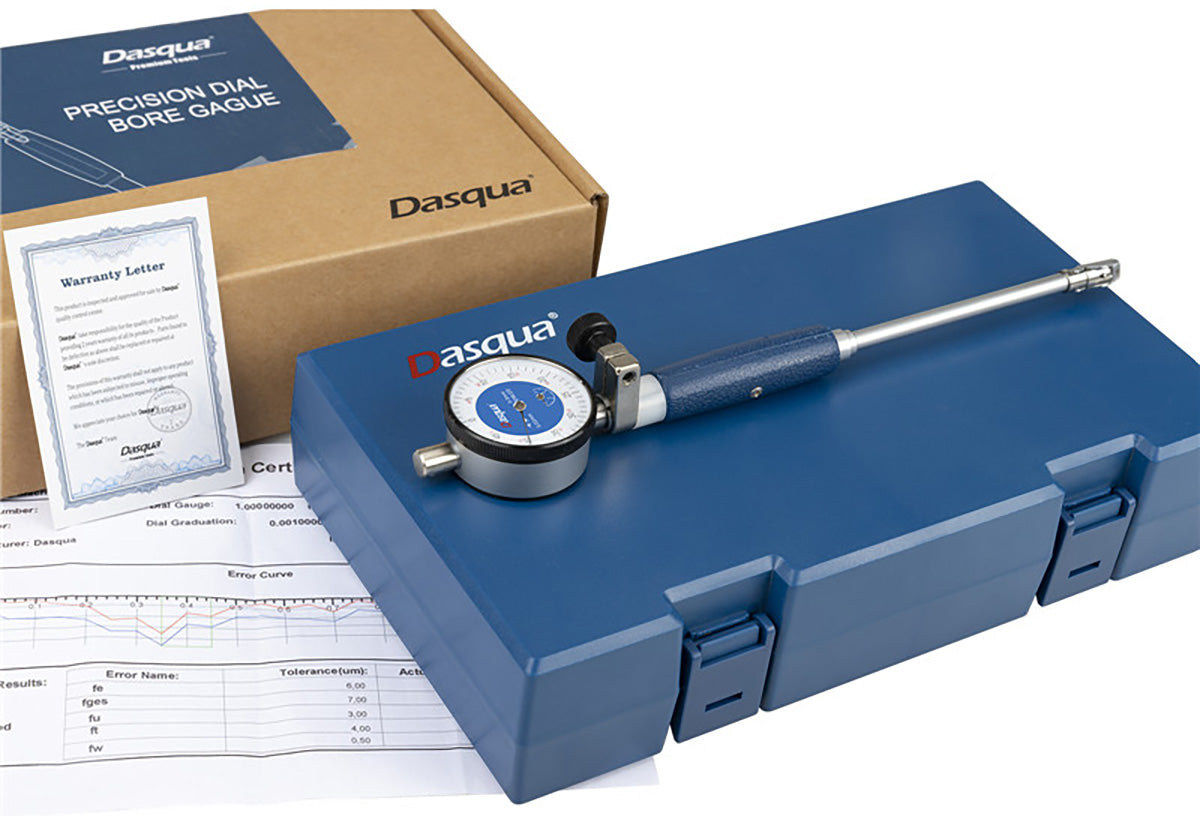

Package Content
1 x Dial Bore Gauge
1 x Protective Case
1 x Warranty Letter
