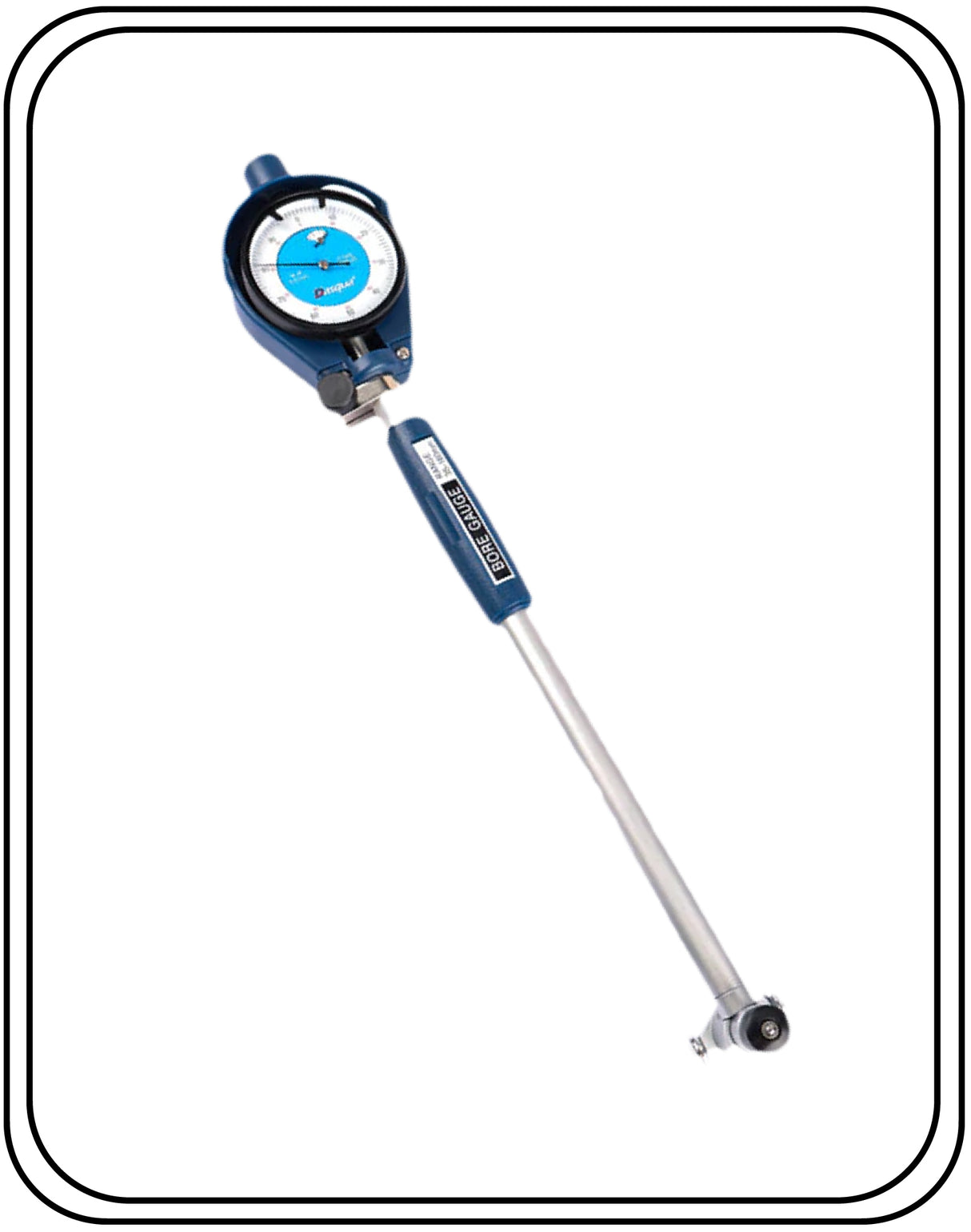

DASQUA High Precision Measuring Tools Ranged Dial Bore Gauge Set With Extra Long Range Of 35-160mm

₹ 8,500.00
SKU: JBRS1386
Brand - Dasqua

DASQUA High Precision Measuring Tools Ranged Dial Bore Gauge Set With Extra Long Range Of 35-160mm

₹ 8,500.00
SKU: JBRS1386
NONE LEFT IN STOCK

Sign up for restock notifications!

Notify Me when this Product get back in Stock

Offer on this Product - Get Rs.50 Off on Prepaid Orders. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description
  1. Large measuring range from 35mm to 160mm
  2. So cost effective that can reach the range of 2 or 3 dial bore gauges
  3. Carbide-tipped and ceramic contact points optional for customers desire
  4. Strictly made in accordance with DIN878
  5. Double fulcrum-points design for getting the correct measuring results

Specifications

Product Name: Dial Bore Gauge Set
Item Number: 5510-0005
Measuring Range:  35~160 mm / 1.38~6.3’’
Graduation:  ±0.01 mm / 0.0005’’
Warranty: Two Years

Features

• Large measuring range from 35mm to 160mm
• So cost effective that can reach the range of 2 or 3 dial bore gauges
• Carbide-tipped and ceramic contact points optional for customers desire
• Strictly made in accordance with DIN878
• Double fulcrum-points design for getting the correct measuring results

Application

Bore gauge sets are the most widely used measurement tools for inside measurement of cylindrical objects such as pipes and cylinders. Unlike transfer gauges (telescope gauge, small-hole gauge, beam gauge), the bore gauge does not require a second time measurement but a direct read when performing the measure, which ensured the accuracy. The bore gauge also goes deep enough by its long extension handle that bests the short reach problem of inside micrometers without compromising to the accuracy. Certainly, the three-point inside micrometer may fulfill all your needs and can be handled easily but it costs a lot more than bore gauges do.

Advantage Of DASQUA

• High quality material and precision machining process ensure product quality;
• A traceable QC system is worthy of your trust;
• Efficient warehouse and logistics management ensure your delivery time;
• A two-year warranty makes you without the worries behind;

Tips Of Assemble The Bore Gauge

Attach the indicator to the joint by inserting the indicator’s spindle into the joint;
Lock the indicator with the screw when the needle of the indicator turns about 1 revolution;
Remove the anvil locking nut and install wanted anvils, combination anvils or washers;
Install the knurled locking nut tightly.

Package Content

1 x Inside Micrometer
1 x Protective Case
1 x Warranty Letter

Products are usually delivered in 3-7 days depending upon your location.
