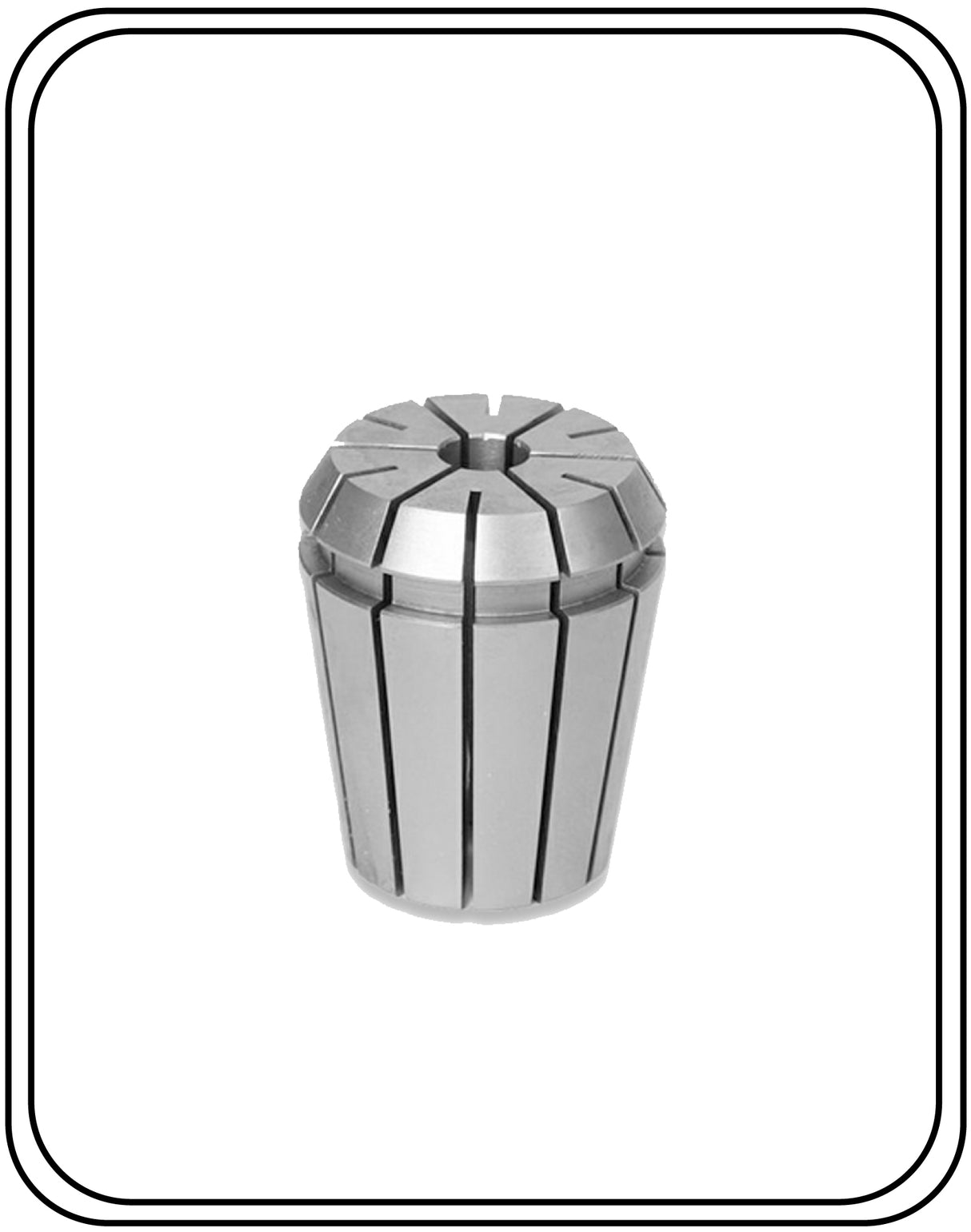

ER 32 COLLET DIN6499B AA 0.010 MICRON High Quality Precision Collet.

₹ 361.00


1MM 2MM 3MM 4MM 5MM 6MM 7MM 8MM 9MM 10MM 11MM 12MM 13MM 14MM 15MM 16MM 17MM 18MM 19MM 20MM

ER 32 COLLET DIN6499B AA 0.010 MICRON High Quality Precision Collet.

Brand - Mars-Tech
₹ 361.00


1MM 2MM 3MM 4MM 5MM 6MM 7MM 8MM 9MM 10MM 11MM 12MM 13MM 14MM 15MM 16MM 17MM 18MM 19MM 20MM

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

The standard ER collet is the most widely used clamping system in the world.
Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding.  Unless specified differently all of our ER collets feature runout of 0.010 micron or less. ,ER collet sizes start at ER8 through ER50.

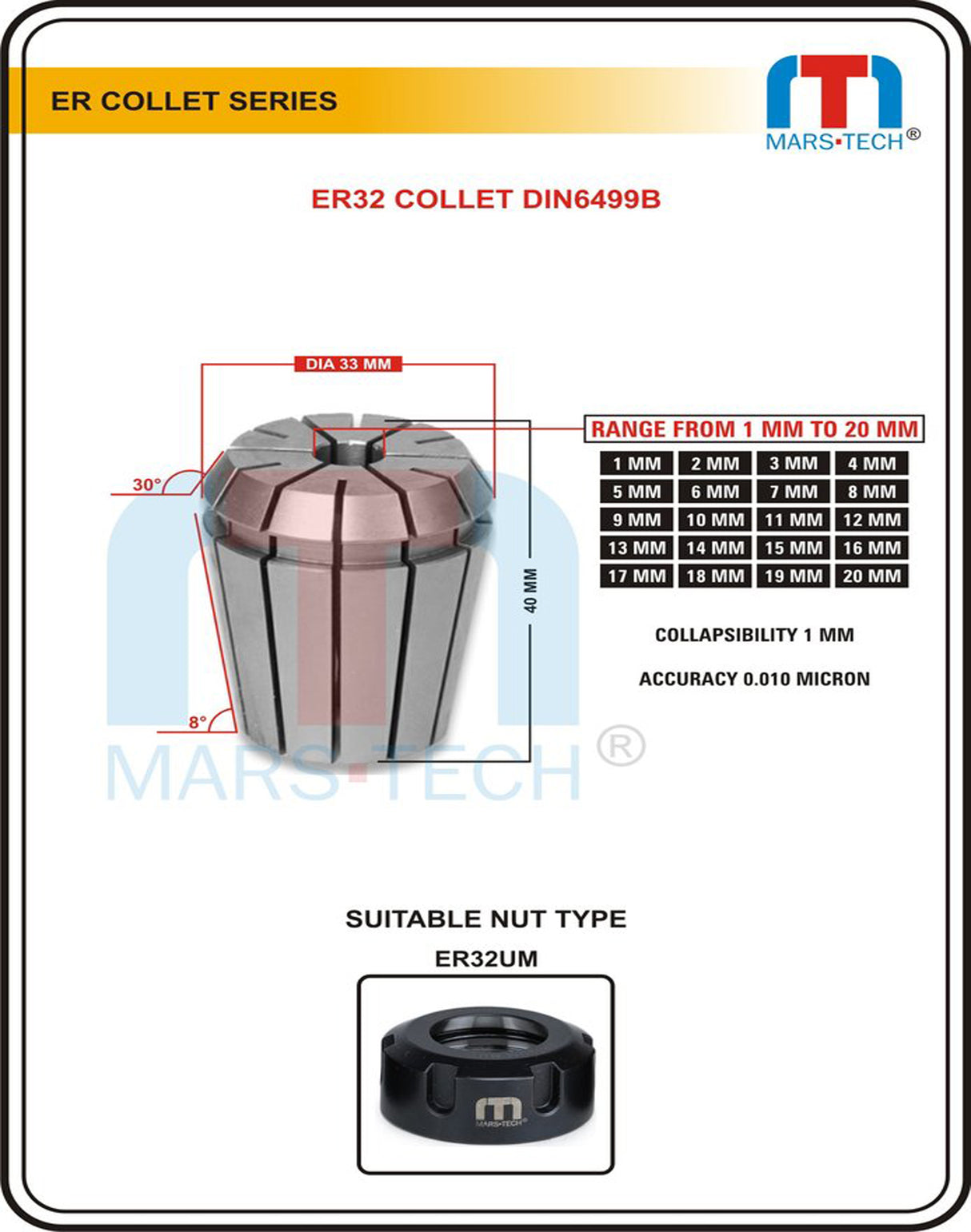

ER32 series collets have a capacity of 1mm-20mm. Each ER32 collet has a range of (1 mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.9mm). For example, ER32-6mm can grab a round shank from 6mm diameter to 5.1mm diameter.

Products are usually delivered in 3-7 days depending upon your location.
