Thumbnail for ER 32 COLLET SET 1 MM TO 20 MM High Quality Precision Collet. SET OF 20 nos.

ER 32 COLLET SET 1 MM TO 20 MM High Quality Precision Collet. SET OF 20 nos.

ER 32 COLLET SET 1 MM TO 20 MM High Quality Precision Collet. SET OF 20 nos.

Brand - Mars-Tech

₹ 7,015.00

SKU: JBRS1300

0 LEFT IN STOCK

Get Rs.50 Off on Prepaid Orders above Rs.500 via Razorpay Gateway. (Discount will be applied During Checkout at Payment Gateway) (No Code Required)

Product description

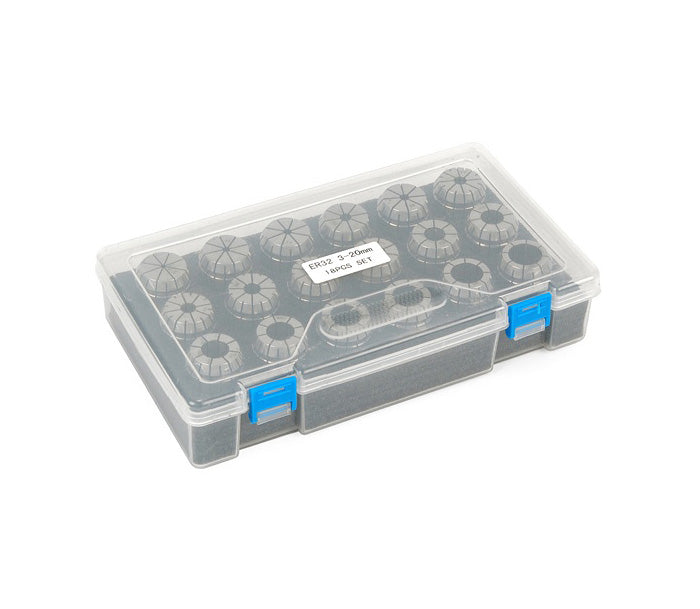

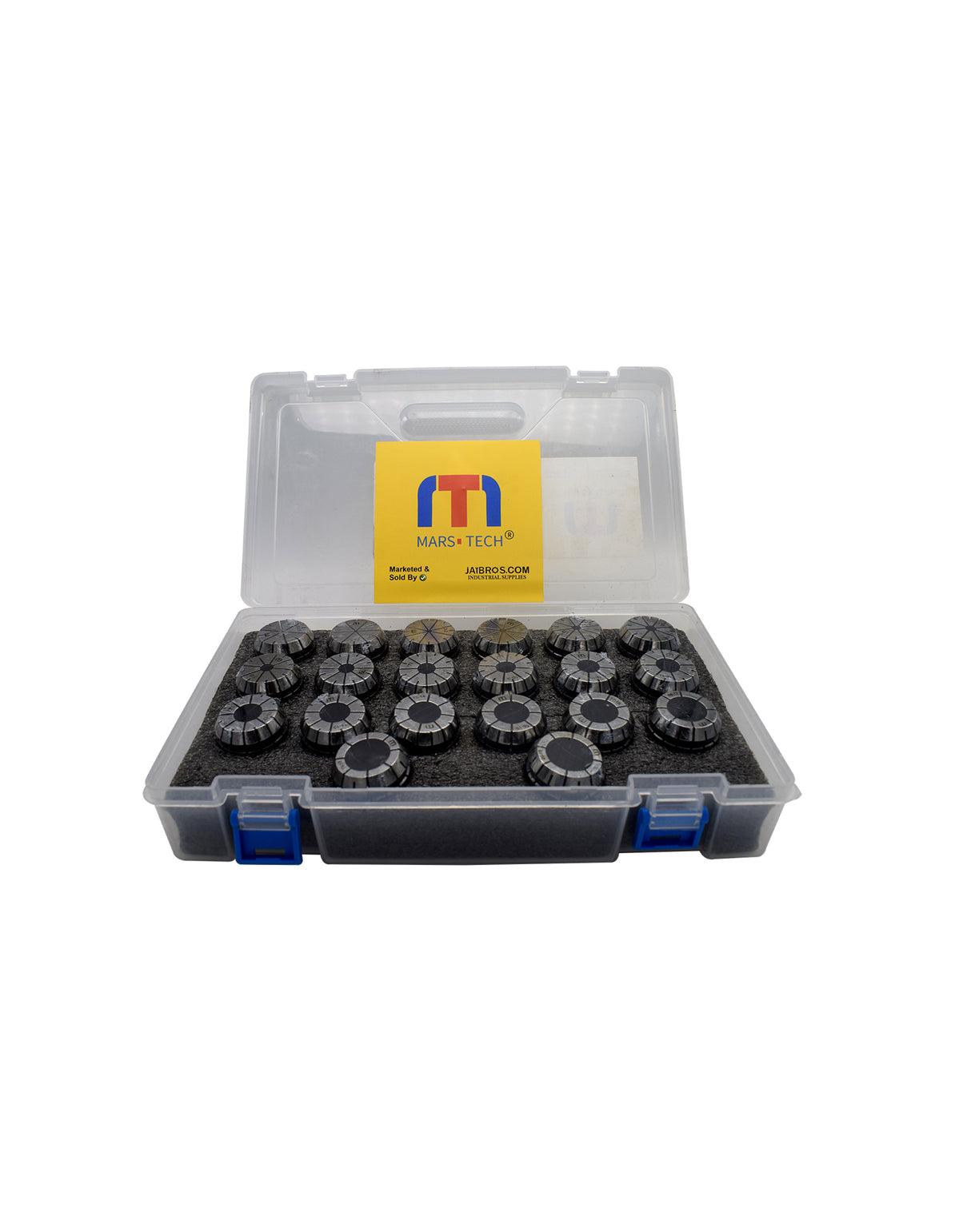

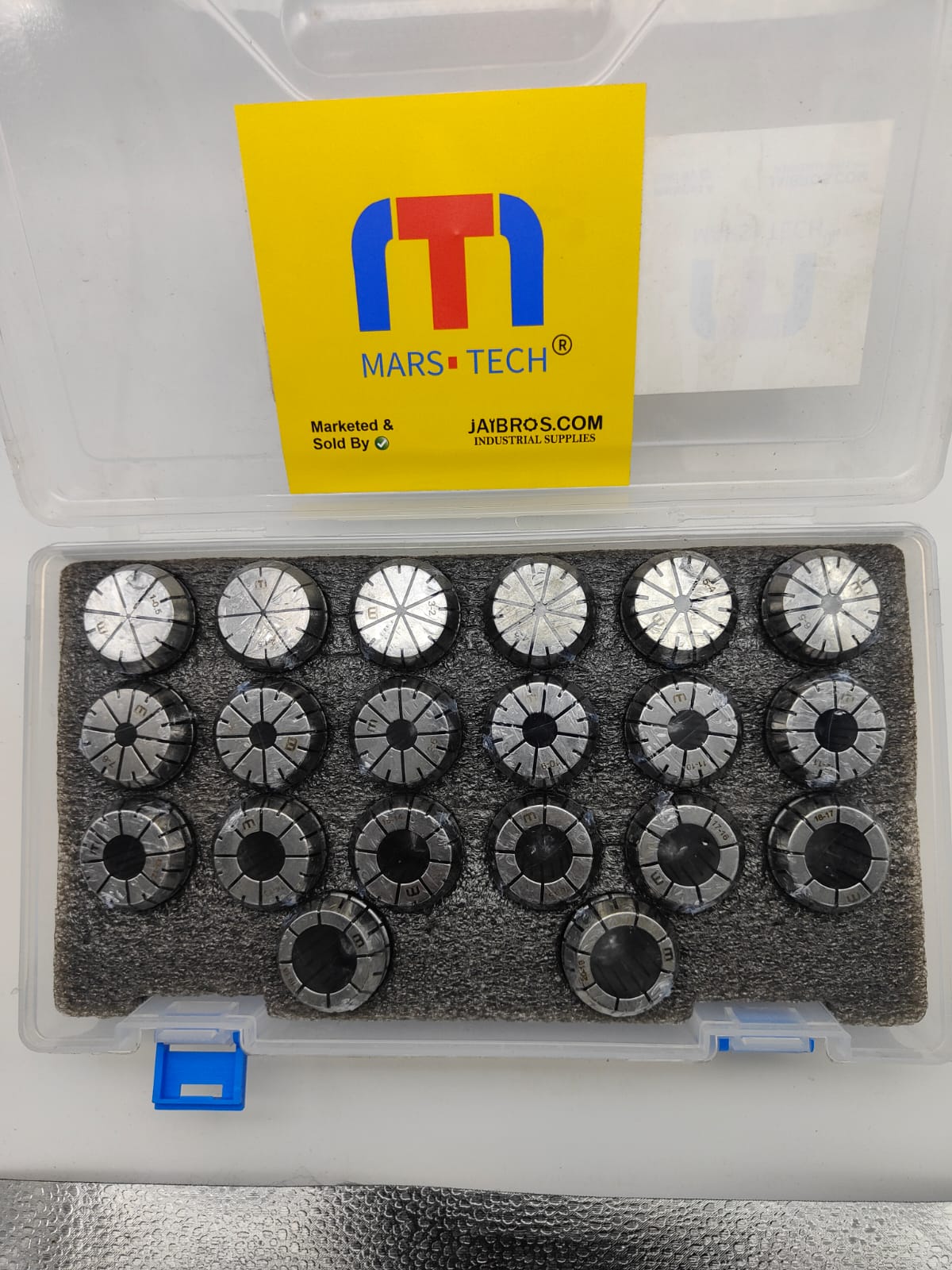

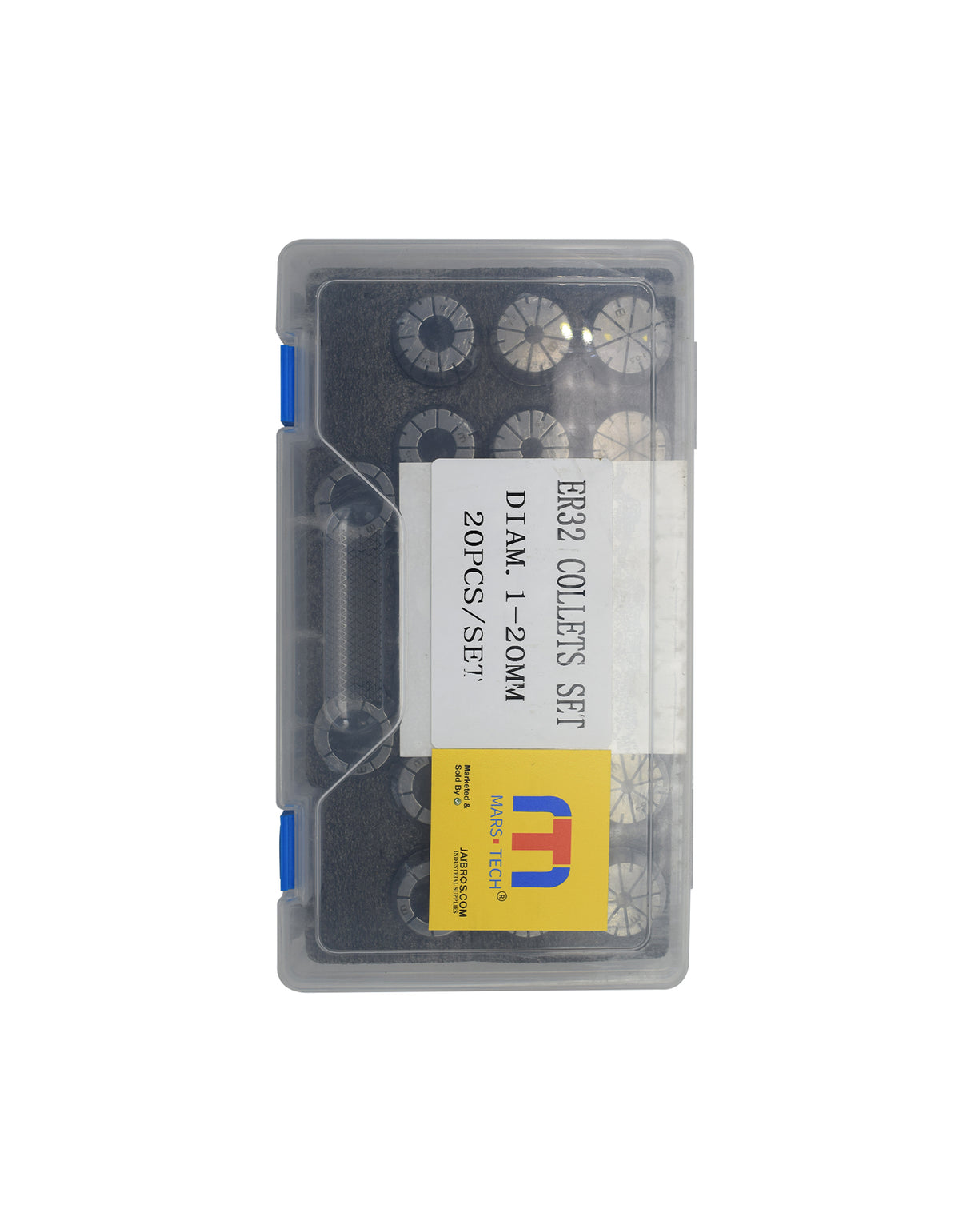

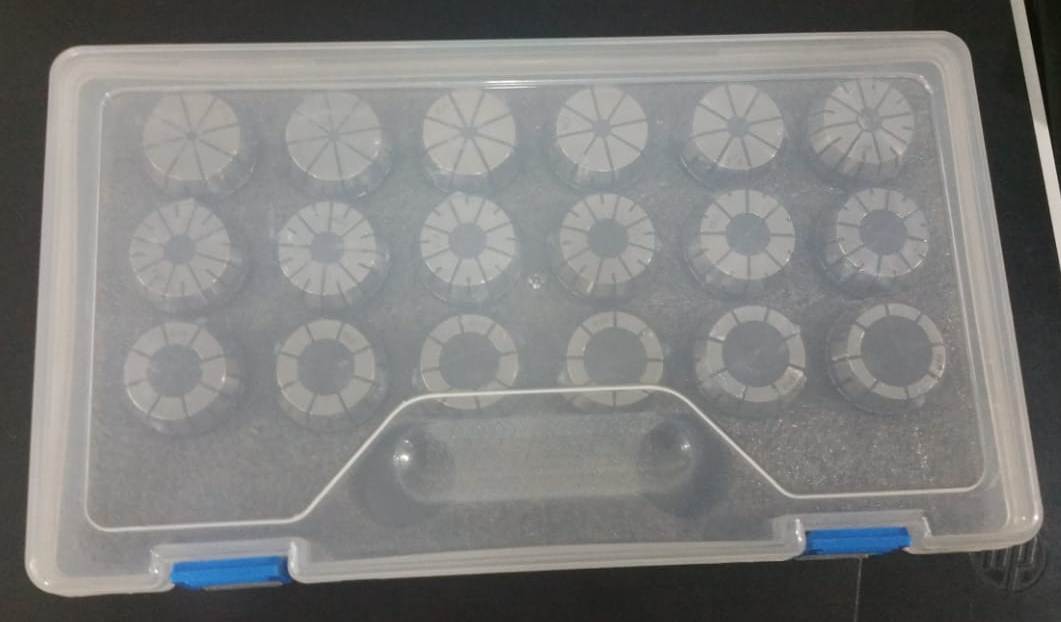

THIS SET HAS 20 COLLETS 1 MM TO 20 MM EACH 1 NOS. PACKED IN PLASTIC BOX

The standard ER collet is the most widely used clamping system in the world.
Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding. Unless specified differently all of our ER collets feature runout of 0.010 micron or less. ,ER collet sizes start at ER8 through ER50.

ER32 series collets have a capacity of 1mm-20mm. Each ER32 collet has a range of (1 mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.9mm). For example, ER32-6mm can grab a round shank from 6mm diameter to 5.1mm diameter.

Products are usually delivered in 3-7 days depending upon your location.

0 have this item in their cart.
