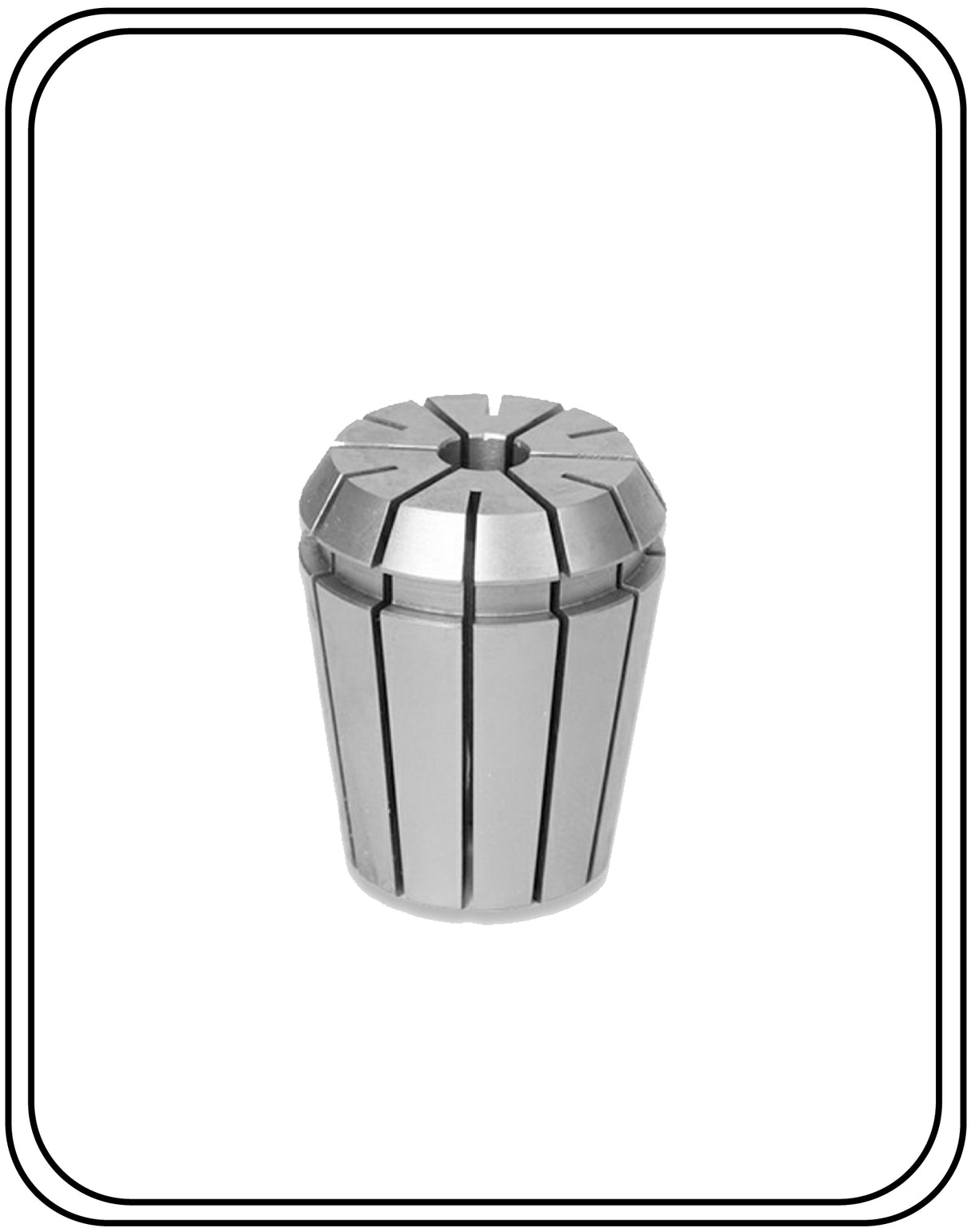

ER 8 COLLET DIN6499B AA 0.010 MICRON High Quality Precision Collet.

Brand - Mars-Tech

₹ 354.00

SKU: JBRS0282

Size

1MM 1.5MM 2MM 2.5MM 3MM 3.175-MM 1/8" -INCH 3.5MM 4MM 4.5MM 5MM

0 LEFT IN STOCK

Product description

The standard ER collet is the most widely used clamping system in the world.
Made from Alloy spring steel and fully hardened these ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding. Unless specified differently all of our ER collets feature runout of 0.010 micron or less. ,ER collet sizes start at ER8 through ER50.

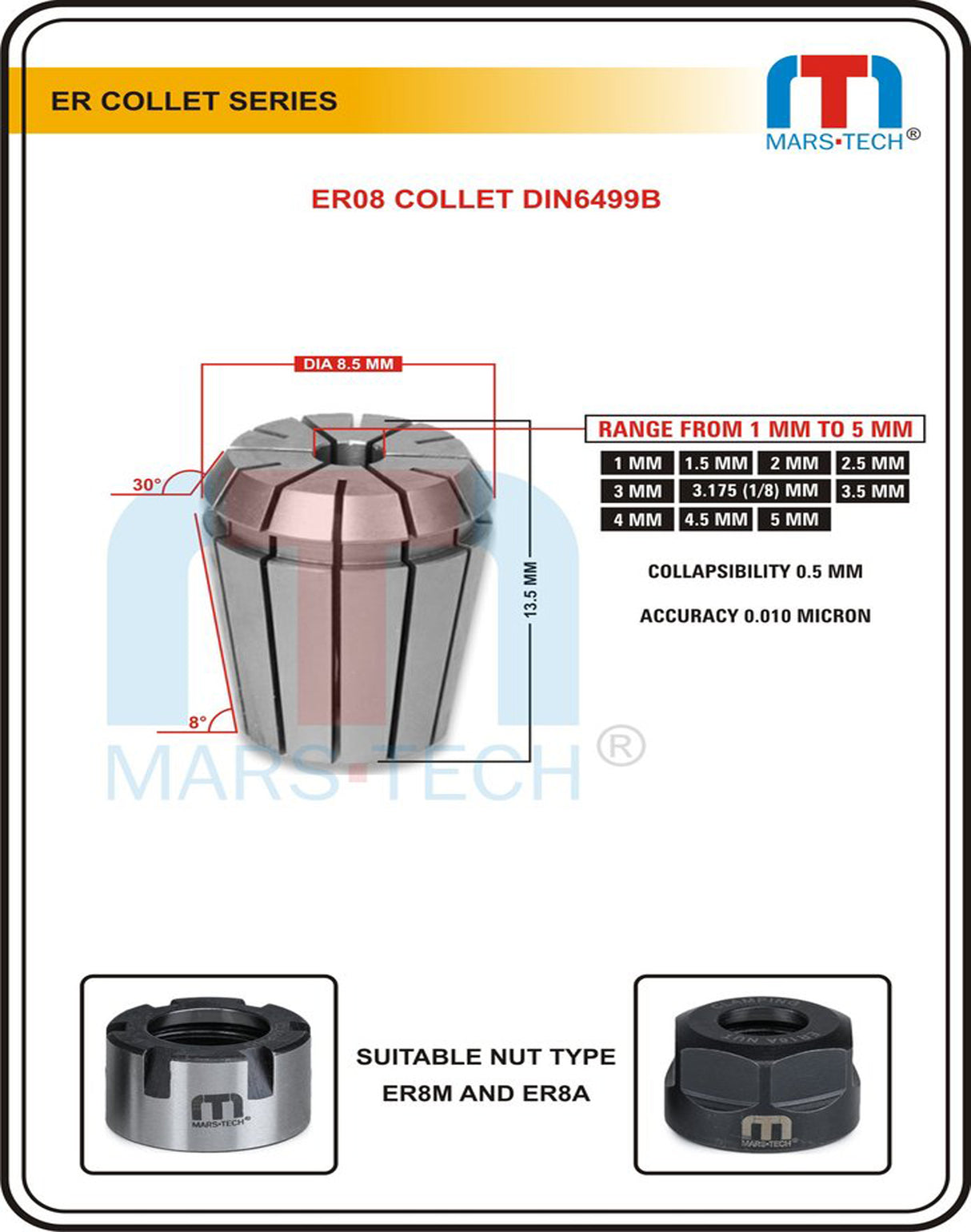

ER8 series collets have a capacity of 1mm-5mm. Each ER8 collet has a range of (0.5mm). The size indicated on the collet is the largest size it can hold and can be collapsed smaller within its collapse range of (0.5mm). For example, ER8-3mm can grab a round shank from 3mm diameter to 2.5mm diameter.

Products are usually delivered in 3-7 days depending upon your location.

0 have this item in their cart.

Add to cart
