Thumbnail for SOMT12T3 Indexable Cutter Dia 80

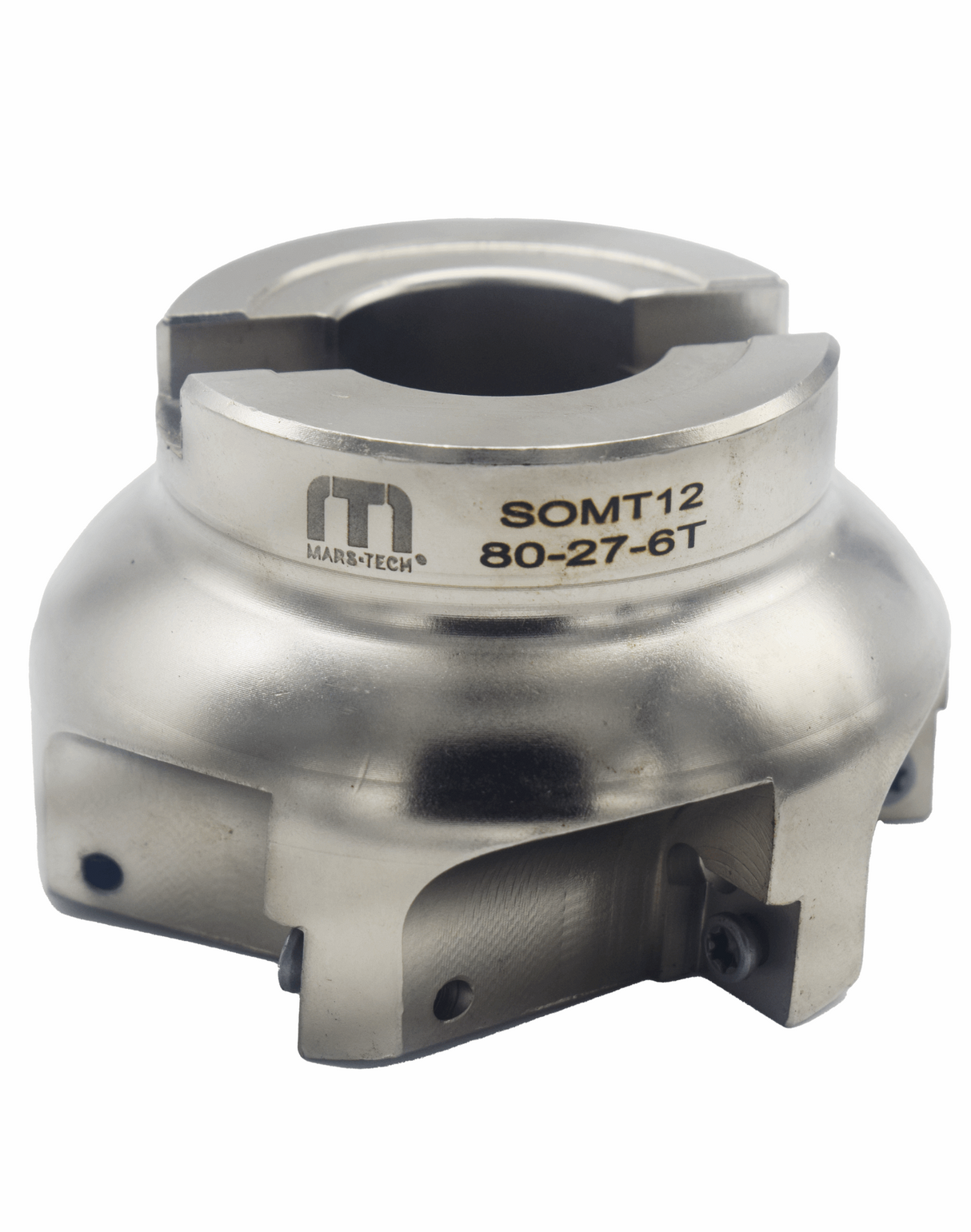

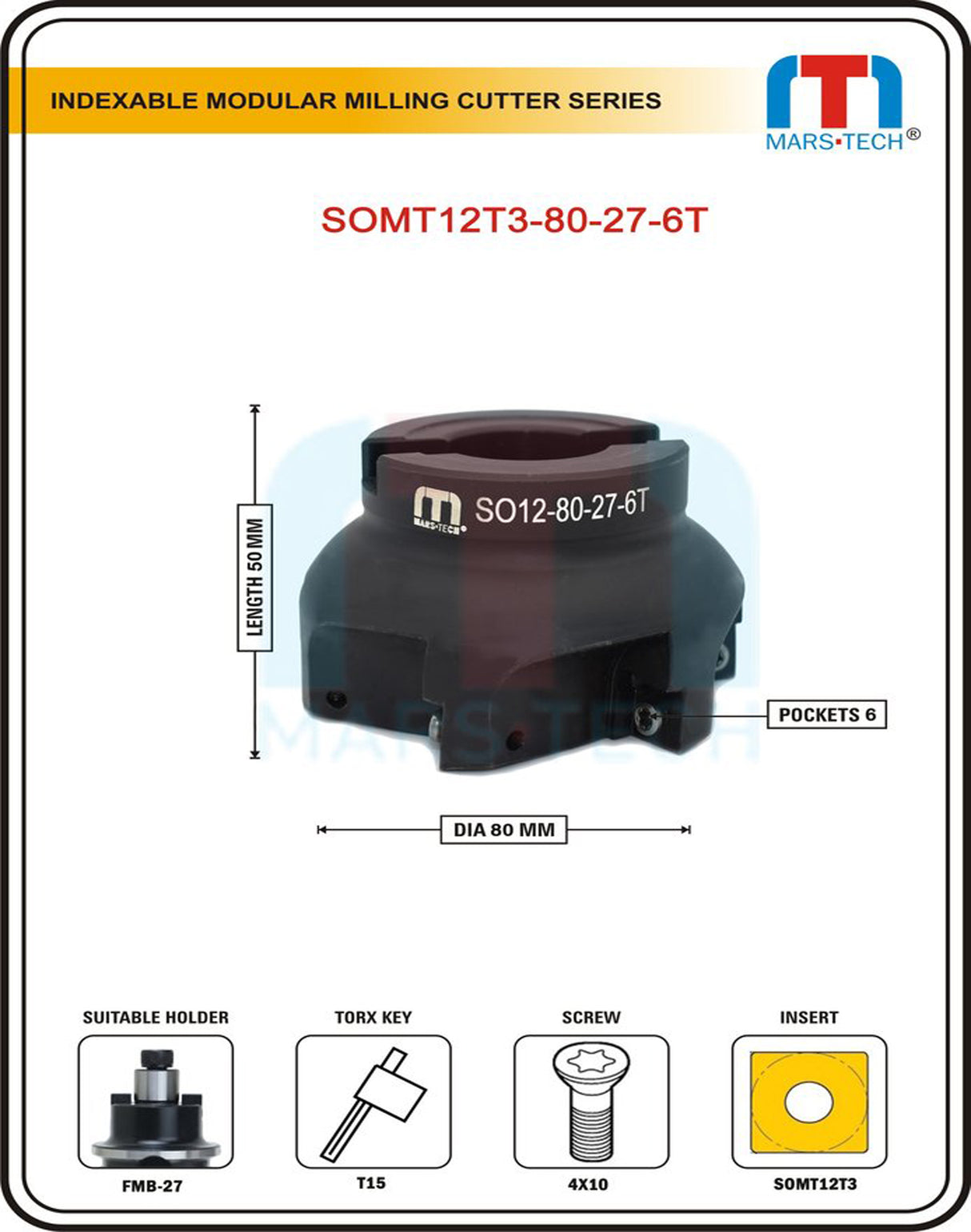

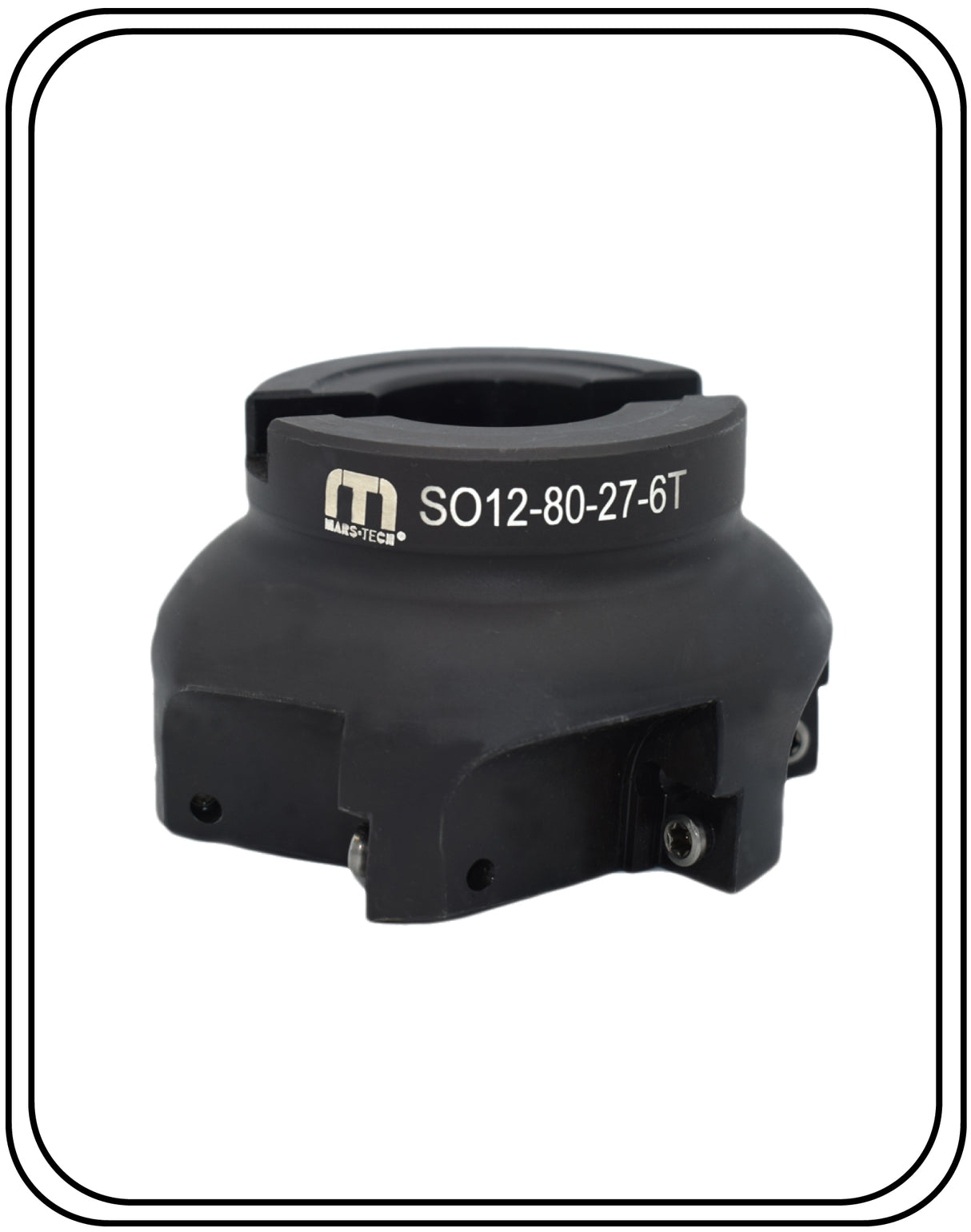

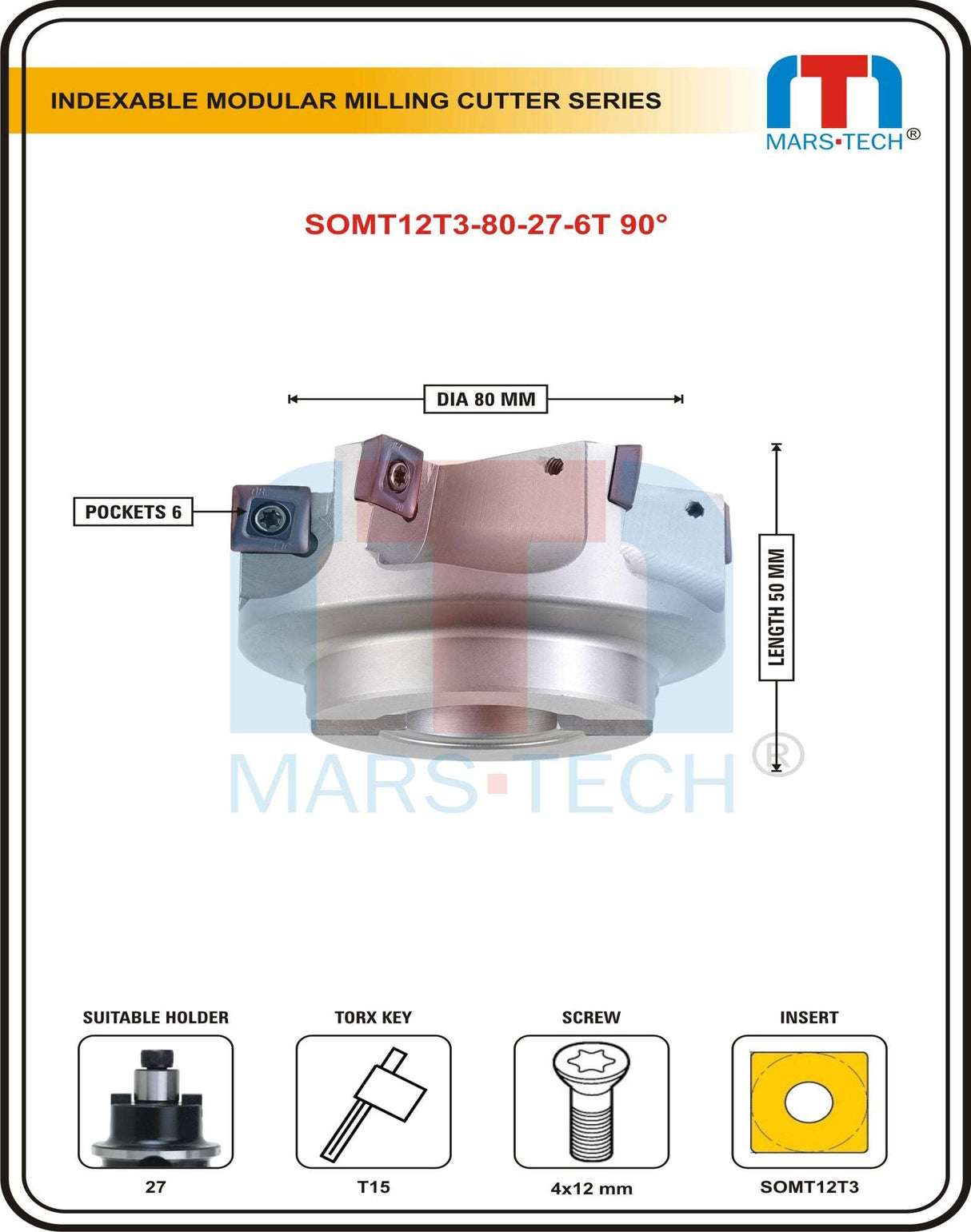

80 mm SOMT12T3 Indexable Cutter Dia 80 Mm Suitable To Mitsubishi Insert

Brand - Mars-Tech

₹ 3,370.00

SKU: JBRS0198

NONE LEFT IN STOCK

Product description

80 mm SOMT12T3 Indexable Cutter Dia 80 Mm Suitable To Mitsubishi Insert

SOMT12T3 ASX400-050-A04R DIA 50 CUTTER BODY SUITABLE FOR MITSUBISHI

SOMT12T3 ASX400-063-A05R DIA 63 MILLING CUTTER INDEXABLE

SOMT12T3 ASX400-080-A06R DIA 80 FACE MILLING CUTTER

This is a Shoulder and Face Milling Cutter used mainly in CNC Milling and Manual Milling Machine with ISO Carbide Insert, Using this can reduce the cost really low compared to HSS, and changing of insert time is also very low, They are hardened 45-50 HRC to not wear out, Pockets are well designed so insert and pocket seat have no gap in them, Run out tolerance is maintained by grinding by center to center and they have center hole both sides, you can use SOMT12T3 Of Mitsubishi and Tabikut Brand Insert into this, If any other brand have same insert it can also fixed to this. there are many Chinese brands also making the same inserts so you can just check descriptions of sizes from other brands to fix this insert.

Products are usually delivered in 3-7 days depending upon your location.
